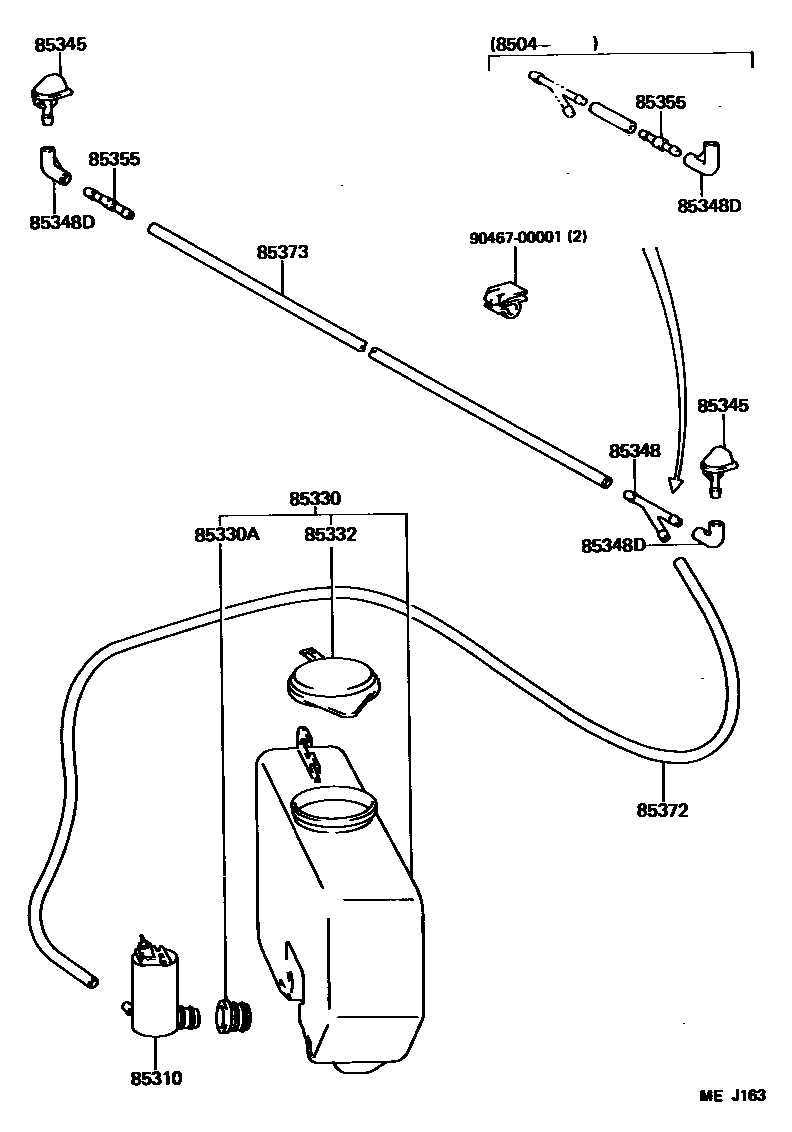

Toyota STARLET — WINDSHIELD WASHER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i198410-198912

85330JAR ASSY, WINDSHIELD WASHER

main85330-10240i198410-198912

main85330-10260i198410-198912

W/RR WIPER

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32103i198410-198912

85332CAP, WINDSHIELD WASHER JAR

main85332-12320i198410-198912

85345NOZZLE, WINDSHIELD WASHER

main85035-10170×2i198410-198601

main85035-10190×2i198601-198912

main85035-10200×2i198601-198912

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250i198410-198912

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481×2i198705-198912

main85355-20070×2i198410-198705

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250i198410-198504

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013i198410-198912

L=1000(*H,L=740),W/RR WIPER; L=1450(*H,L=870)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013i198410-198504

L=1000(*H,L=430),NO.1

9046700001

main90467-00001

11 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota STARLET

This section contains 14 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota STARLET. Key components include: VALVE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
