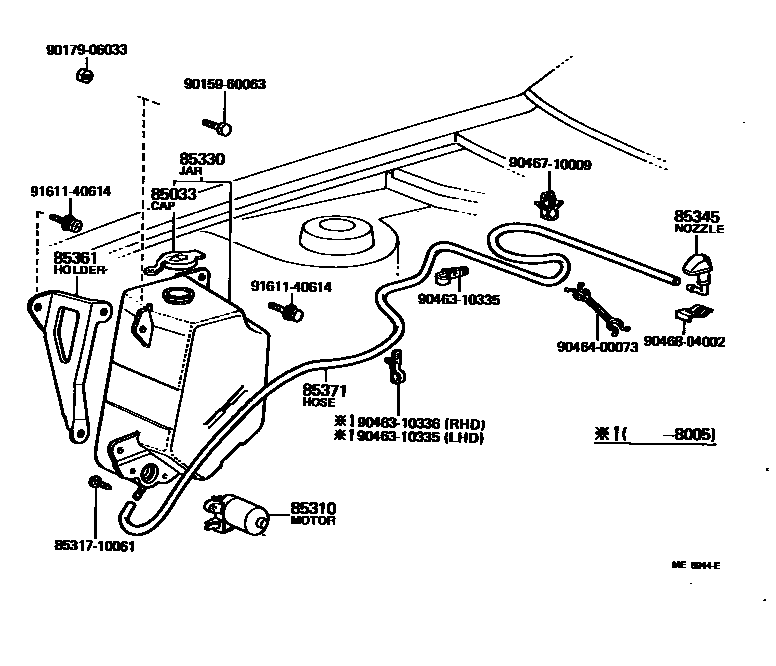

Toyota STARLET — WINDSHIELD WASHER
85033CAP ASSY, WINDSHIELD WASHER
W/RR WIPER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
W/RR WIPER
85330JAR ASSY, WINDSHIELD WASHER
1.5LITTER
W/O RR WIPER,2.0LITTER
W/RR WIPER
85345NOZZLE, WINDSHIELD WASHER
RH
LH
85361HOLDER, WINDSHIELD WASHER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=470),W/RR WIPER; L=1800(*H,L=385)
8531710061WIRING ASSY, WASHER
main85317-10061
9015960063
main90159-60063
9017906033
main90179-06033
9046310335
main90463-10335
9046310336
main90463-10336
9046400073
main90464-00073
9046710009
main90467-10009
9046804002
main90468-04002
9161140614
main91611-40614
15 parts on this diagram · 3 diagrams in section
WINDSHIELD WASHER for Toyota STARLET
This section contains 25 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota STARLET. Key components include: CAP ASSY, WINDSHIELD WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
