Toyota STARLET — WINDSHIELD WASHER
85035ANOZZLE, FR WASHER, RH
85035BNOZZLE, FRONT WASHER, LH
8504REAR WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-WC001
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
main85316-WC001
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85321-WC001
85370HOSE ASSY, WINDSHIELD WASHER
main90118-WC479
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90118-WC481
90118WC050
main90118-WC050

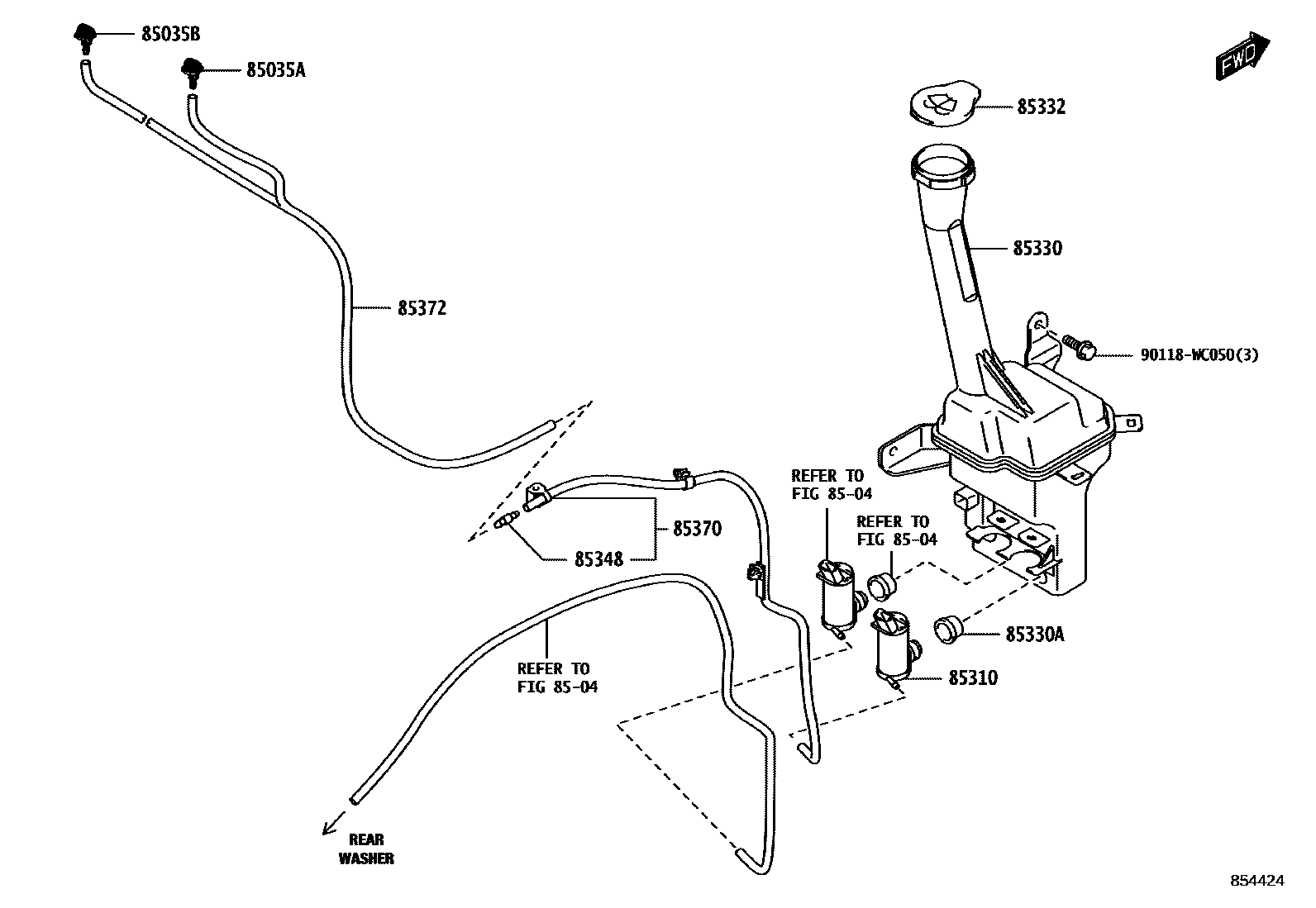

11 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota STARLET
This section contains 11 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota STARLET. Key components include: NOZZLE, FR WASHER, RH, NOZZLE, FRONT WASHER, LH, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
