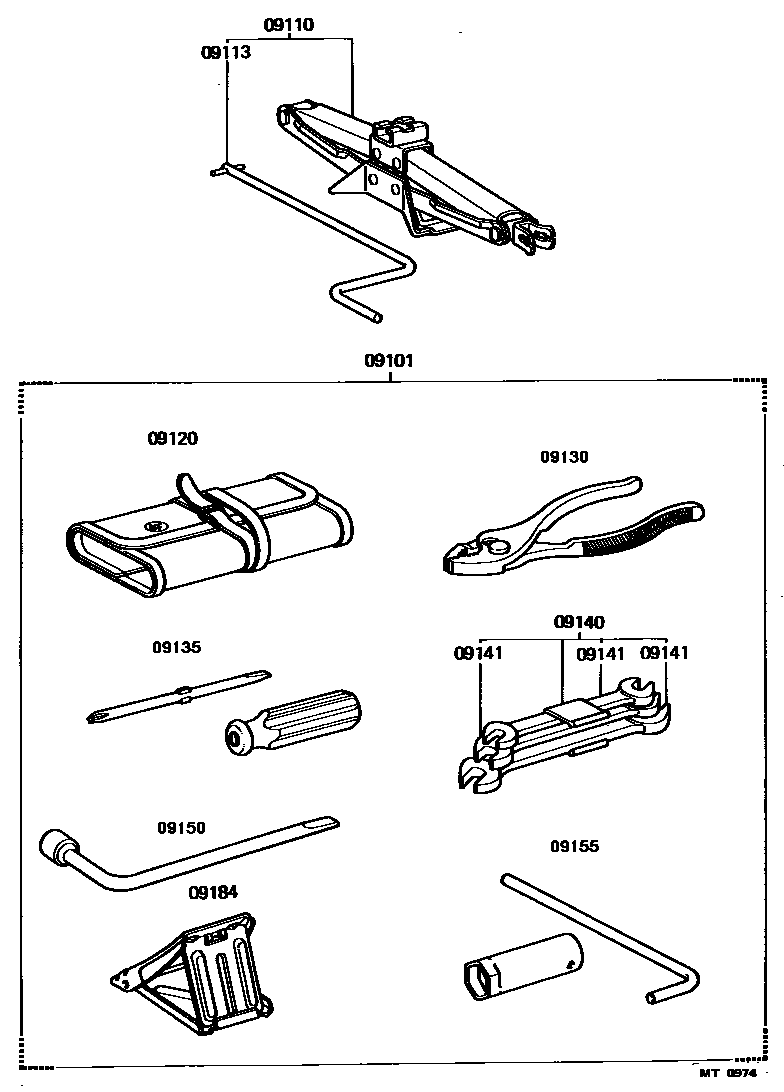

Toyota STARLET — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-12012i197802-197903

main09102-10024i198205-198409

main09102-16020i197903-198205

09110JACK ASSY

main09110-10030i197802-197903

main09110-11040i197810-197903

main09118-10010i197903-198409

main09118-11010i197903-198409

09113HANDLE, JACK

main09113-11011i197802-197903

main09113-13021i197810-197903

09120BAG, TOOL

main09120-12011i197802-198409

09130PLIERS

main09130-00010i197802-198205

main99913-11500i198205-198409

09135DRIVER, SCREW

main99915-10700i197802-198409

09140SPANNER SET

main09140-12011i197802-198409

09141SPANNER

main99914-10810i197802-198409

8 X 10,8X10

main99914-11012i197802-198409

10 X 12,10X12

main99914-11417i197802-198409

14 X 17,14X17

09150WRENCH, HUB NUT BOX

main09150-00010i197802-197903

09155WRENCH, SPARK PLUG

main09155-12010i197802-197903

main09155-24010i197903-198205

main09155-44020i198205-198409

09184STOPPER, WHEEL

main09184-00010i197802-198409

11 parts on this diagram · 2 diagrams in section

STANDARD TOOL for Toyota STARLET

This section contains 13 genuine Toyota parts for the STANDARD TOOL system of the Toyota STARLET. Key components include: TOOL SET, STANDARD W/O JACK, JACK ASSY, HANDLE, JACK, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE.
