EPC Data

Toyota STARLET — SPEAKER

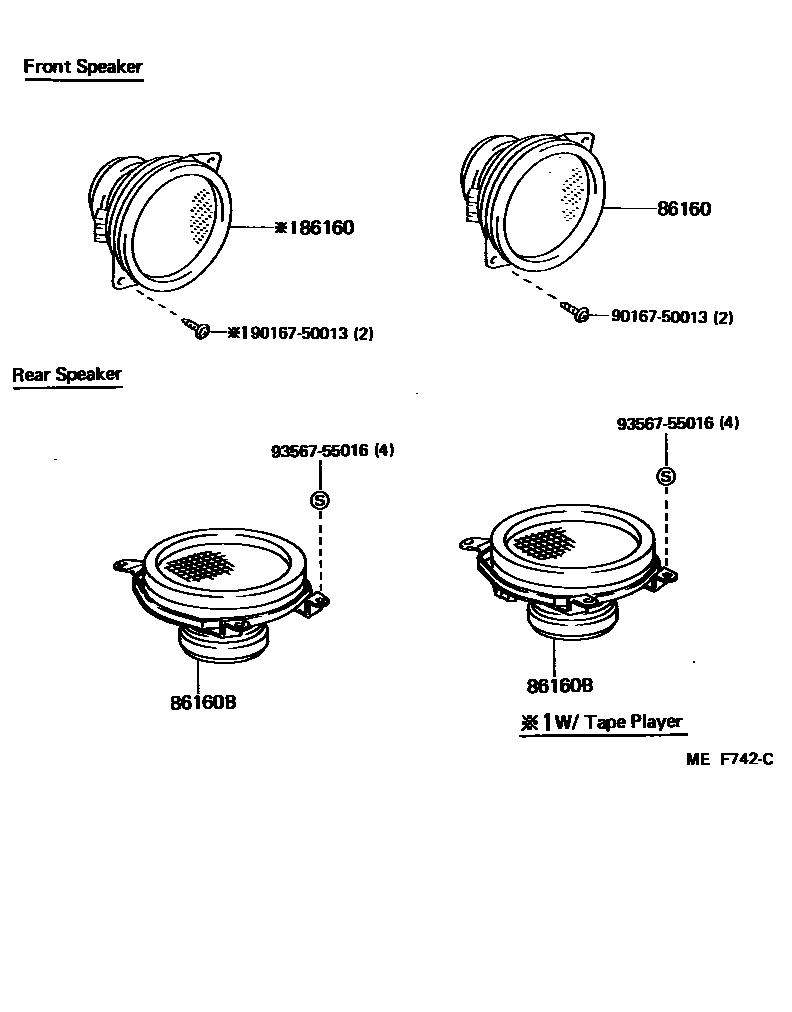

Parts diagram
86160SPEAKER ASSY, FRONT NO.1
main86160-10160i198410-198612
1-SPEAKER
main86160-10170×2i198410-198612
2-SPEAKER
86160BSPEAKER ASSY, REAR
main86150-10100i198502-198912
INDONESIA SPEC,RH
main86160-10230i198502-198912
INDONESIA SPEC,RH
9016750013
main90167-50013
9356755016
main93567-55016

4 parts on this diagram · 1 diagram in section

SPEAKER for Toyota STARLET

This section contains 4 genuine Toyota parts for the SPEAKER system of the Toyota STARLET. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR.
