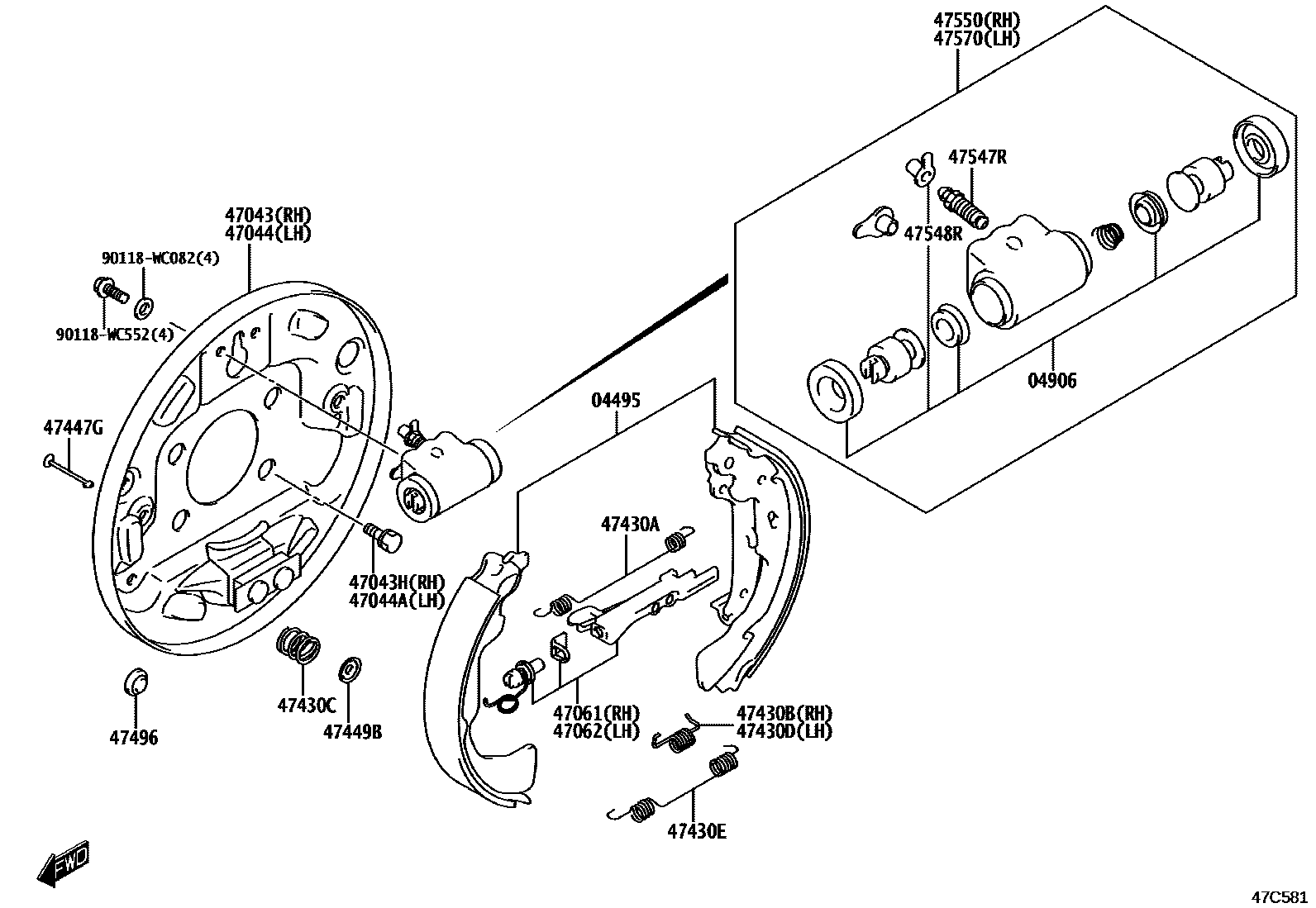

Toyota STARLET — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04495SHOE KIT, REAR BRAKE
main04495-WC008iK14B..4FC..L..AFR; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SUD202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.53; POS.54; POS.55; POS.56
POS.29; POS.30; POS.31; POS.32; POS.51; POS.52
04906CUP KIT, REAR WHEEL CYLINDER
main04906-WC002×2iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
main47043-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)
main90118-WC555iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
main47044-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)
main90118-WC555iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47061STRUT SET, PARKING BRAKE SHOE, RH
main47061-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47062STRUT SET, PARKING BRAKE SHOE, LH
main47062-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
main90118-WC717×2iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
main90118-WC799iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
main90118-WC798×4iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
main90118-WC719iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
main90118-WC718×2iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
main47447-WC001×4iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
main47449-WC001×4iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47496PLUG, HOLE(FOR REAR BRAKE)
main47491-WC001×2iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
main47547-WC003×2iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
main31478-WC002×2iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
main47550-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
main47550-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
90118WC082
main90118-WC082
90118WC552
main90118-WC552
22 parts on this diagram · 1 diagram in section
REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE for Toyota STARLET
This section contains 22 genuine Toyota parts for the REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE system of the Toyota STARLET. Key components include: SHOE KIT, REAR BRAKE, CUP KIT, REAR WHEEL CYLINDER, PLATE SUB-ASSY, BRAKE BACKING, REAR RH, BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH), PLATE SUB-ASSY, BRAKE BACKING, REAR LH.
