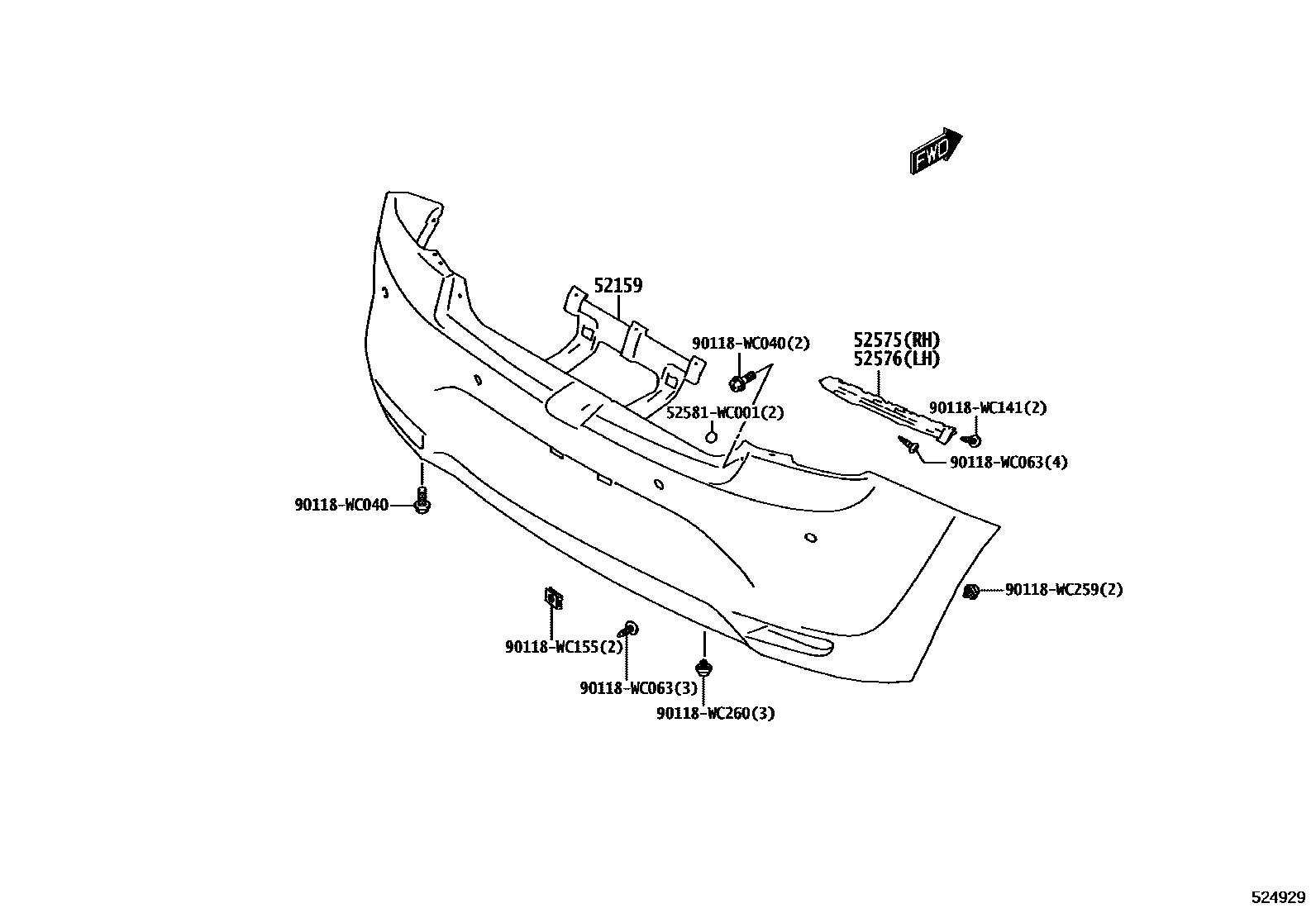

Toyota STARLET — REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
main52159-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..P..AFR; K14B..5F..P..SA202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.51; POS.52; POS.53; POS.54
main52159-WC003iK14B..4FC..L..SUD; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..SUD; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.33; POS.34; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.55; POS.56
52575RETAINER, REAR BUMPER SIDE, RH
main52575-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
52576RETAINER, REAR BUMPER SIDE, LH
main52576-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
52581WC001PROTECTOR, REAR BUMPER, RH
main52581-WC001
90118WC040
main90118-WC040
90118WC063
main90118-WC063
90118WC141
main90118-WC141
90118WC155
main90118-WC155
90118WC259
main90118-WC259
90118WC260
main90118-WC260
10 parts on this diagram · 1 diagram in section
REAR BUMPER & BUMPER STAY for Toyota STARLET
This section contains 10 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota STARLET. Key components include: COVER, REAR BUMPER, RETAINER, REAR BUMPER SIDE, RH, RETAINER, REAR BUMPER SIDE, LH, PROTECTOR, REAR BUMPER, RH.
