Toyota STARLET — PARTIAL ENGINE ASSEMBLY

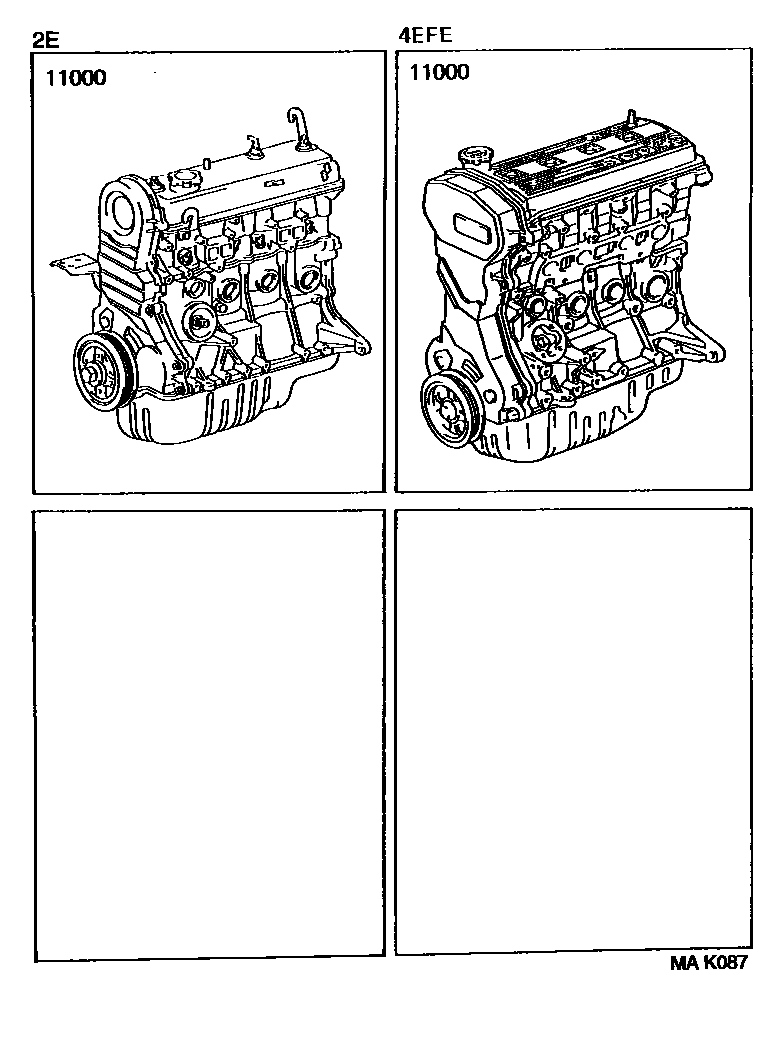

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-11400i199601-199704

W(ENGINE UNDER COVER=STEEL PLATE)

main19000-11401i199704

W(ENGINE UNDER COVER=STEEL PLATE)

main19000-11610i199601-199704

main19000-11611i199704

main19000-11740i199601

1 parts on this diagram · 1 diagram in section
