Toyota STARLET — PARTIAL ENGINE ASSEMBLY

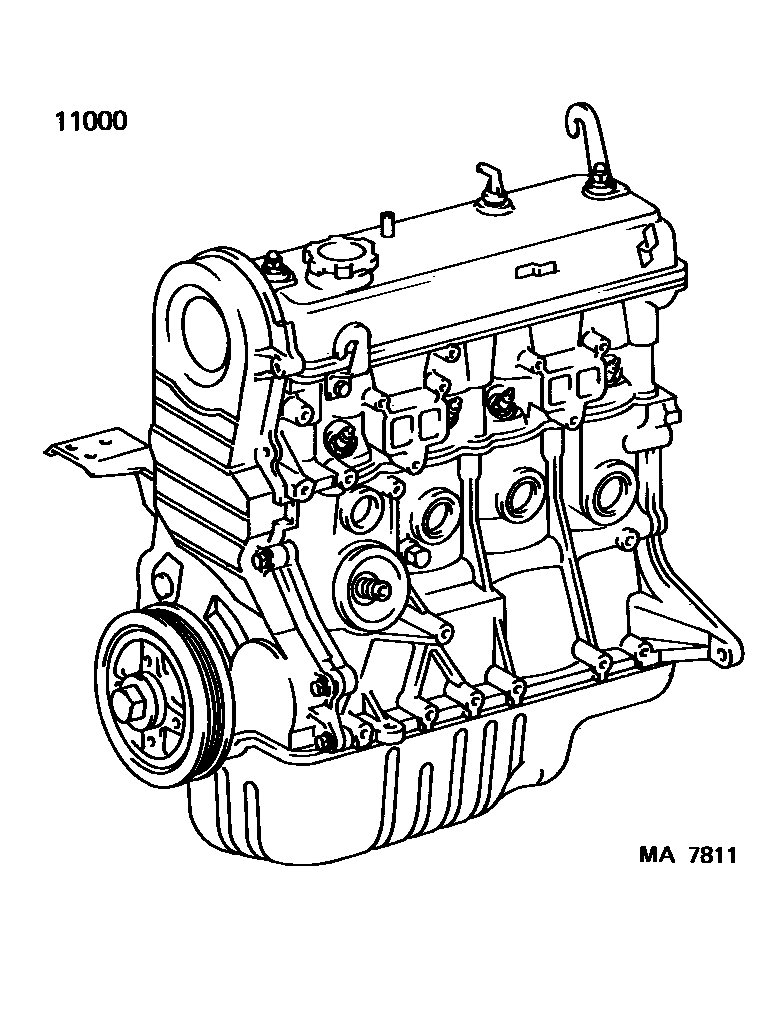

11000ENGINE ASSY, PARTIAL

main19000-10010i1EL..EP70198410-198604

sub12511-11010

sub16100-19126

sub16381-11020

sub88358-10011

sub88431-10041

sub88444-10021

sub90105-08100

main19000-10011i1EL..EP70198604-198912

sub19000-10012

main19000-11100i2EL..EP71198410-198604

sub12511-11010

sub16100-19126

sub16381-11020

sub44311-10011

sub44319-10011

sub88358-10011

sub88431-10041

sub88444-10031

sub90105-08100

sub91611-60820

main19000-11101i2EL..EP71198604-198912

1 parts on this diagram · 1 diagram in section
