Toyota STARLET — PARTIAL ENGINE ASSEMBLY

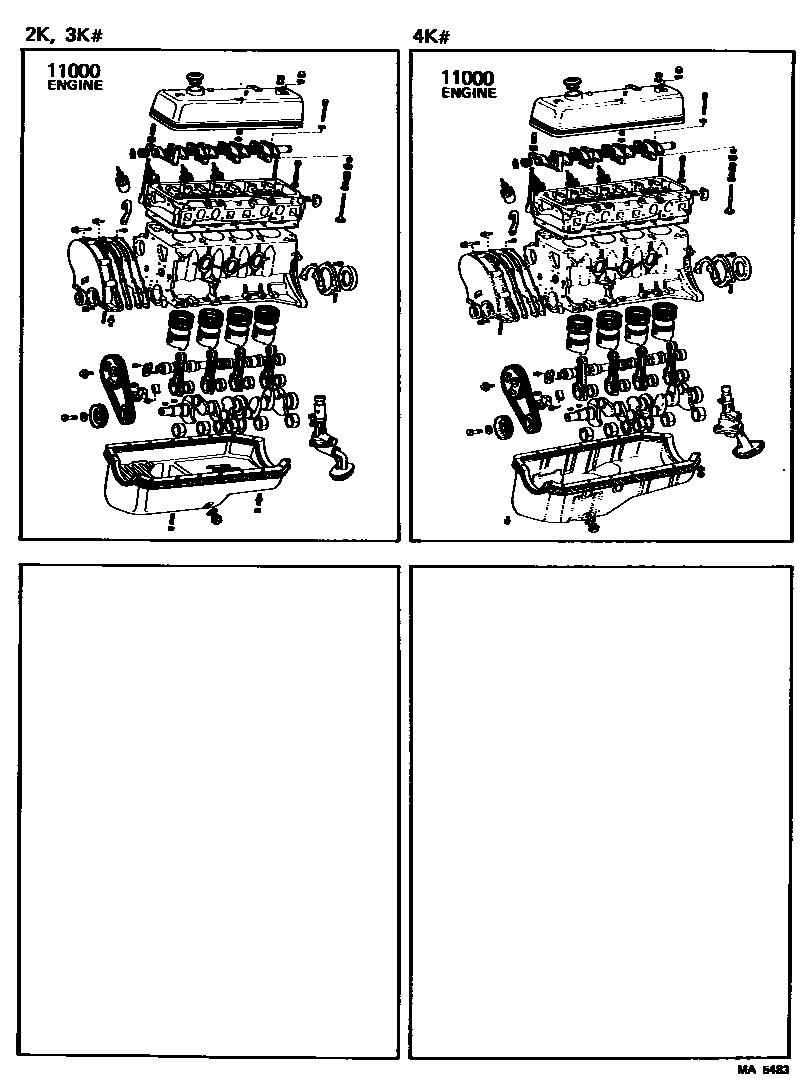

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-12024i197802-198108

main19000-12030i198108-198208

main19000-12040i198208-198409

main19000-12050i198208-198409

main19000-13140i198208-198409

main19000-13150i198108-198409

main19000-13160i198108-198409

main19000-24163i197810-198108

main19000-24270i197807-198108

main19000-24290i198108-198208

1 parts on this diagram · 1 diagram in section
