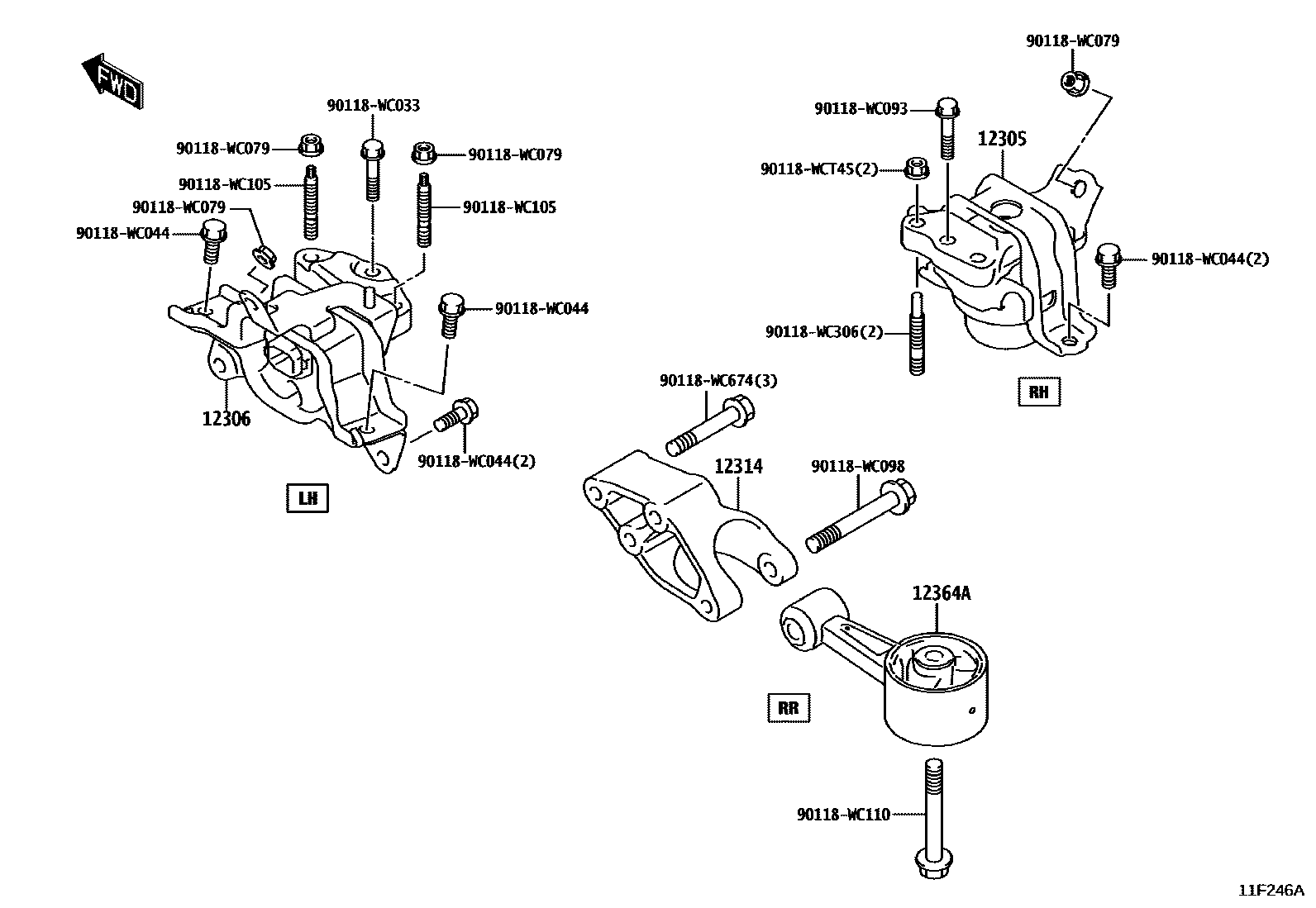

Toyota STARLET — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
main12305-WC003iK14B..K14B..4FC..L..AFR; K14B..K14B..4FC..L..SA; K14B..K14B..4FC..L..SUD; K14B..K14B..4FC..P..AFR; K14B..K14B..4FC..P..SA; K14B..K14B..4FC..P..SUD; K14B..K14B..4FC..X..AFR; K14B..K14B..4FC..X..SA; K14B..K14B..4FC..X..SUD; K14B..K14B..5F..L..AFR; K14B..K14B..5F..L..SA; K14B..K14B..5F..L..SUD; K14B..K14B..5F..P..AFR; K14B..K14B..5F..P..SA; K14B..K14B..5F..P..SUD; K14B..K14B..5F..X..AFR; K14B..K14B..5F..X..SA; K14B..K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH
main12306-WC001iK14B..K14B..5F..L..AFR; K14B..K14B..5F..L..SA; K14B..K14B..5F..L..SUD; K14B..K14B..5F..P..AFR; K14B..K14B..5F..P..SA; K14B..K14B..5F..P..SUD; K14B..K14B..5F..X..AFR; K14B..K14B..5F..X..SA; K14B..K14B..5F..X..SUD202007
POS.29; POS.30; POS.33; POS.35; POS.36; POS.37; POS.38; POS.43; POS.45; POS.46; POS.47; POS.51; POS.53; POS.55
main12306-WC003iK14B..K14B..4FC..L..AFR; K14B..K14B..4FC..L..SA; K14B..K14B..4FC..L..SUD; K14B..K14B..4FC..P..AFR; K14B..K14B..4FC..P..SA; K14B..K14B..4FC..P..SUD; K14B..K14B..4FC..X..AFR; K14B..K14B..4FC..X..SA; K14B..K14B..4FC..X..SUD202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
12314BRACKET, ENGINE LATERAL CONTROL ROD
main12313-WC002iK14B..K14B..4FC..L..AFR; K14B..K14B..4FC..L..SA; K14B..K14B..4FC..L..SUD; K14B..K14B..4FC..P..AFR; K14B..K14B..4FC..P..SA; K14B..K14B..4FC..P..SUD; K14B..K14B..4FC..X..AFR; K14B..K14B..4FC..X..SA; K14B..K14B..4FC..X..SUD202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
main12313-WC003iK14B..K14B..5F..L..AFR; K14B..K14B..5F..L..SA; K14B..K14B..5F..L..SUD; K14B..K14B..5F..P..AFR; K14B..K14B..5F..P..SA; K14B..K14B..5F..P..SUD; K14B..K14B..5F..X..AFR; K14B..K14B..5F..X..SA; K14B..K14B..5F..X..SUD202007
POS.29; POS.30; POS.33; POS.35; POS.36; POS.37; POS.38; POS.43; POS.45; POS.46; POS.47; POS.51; POS.53; POS.55
12364AROD, ENGINE LATERAL CONTROL
main12363-WC001iK14B..K14B..4FC..L..AFR; K14B..K14B..4FC..L..SA; K14B..K14B..4FC..L..SUD; K14B..K14B..4FC..P..AFR; K14B..K14B..4FC..P..SA; K14B..K14B..4FC..P..SUD; K14B..K14B..4FC..X..AFR; K14B..K14B..4FC..X..SA; K14B..K14B..4FC..X..SUD202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
main12363-WC002iK14B..K14B..5F..L..AFR; K14B..K14B..5F..L..SA; K14B..K14B..5F..L..SUD; K14B..K14B..5F..P..AFR; K14B..K14B..5F..P..SA; K14B..K14B..5F..P..SUD; K14B..K14B..5F..X..AFR; K14B..K14B..5F..X..SA; K14B..K14B..5F..X..SUD202007
POS.29; POS.30; POS.33; POS.35; POS.36; POS.37; POS.38; POS.43; POS.45; POS.46; POS.47; POS.51; POS.53; POS.55
90118WC033
main90118-WC033
90118WC044
main90118-WC044
90118WC079
main90118-WC079
90118WC093
main90118-WC093
90118WC098
main90118-WC098
90118WC105
main90118-WC105
90118WC110
main90118-WC110
90118WC306
main90118-WC306
90118WC674
main90118-WC674
90118WCT45
main90118-WCT45
14 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota STARLET
This section contains 21 genuine Toyota parts for the MOUNTING system of the Toyota STARLET. Key components include: HANGER, ENGINE, NO.1, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, INSULATOR SUB-ASSY, ENGINE MOUNTING, LH, BRACKET, ENGINE LATERAL CONTROL ROD, BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE).
