Toyota STARLET — MIRROR

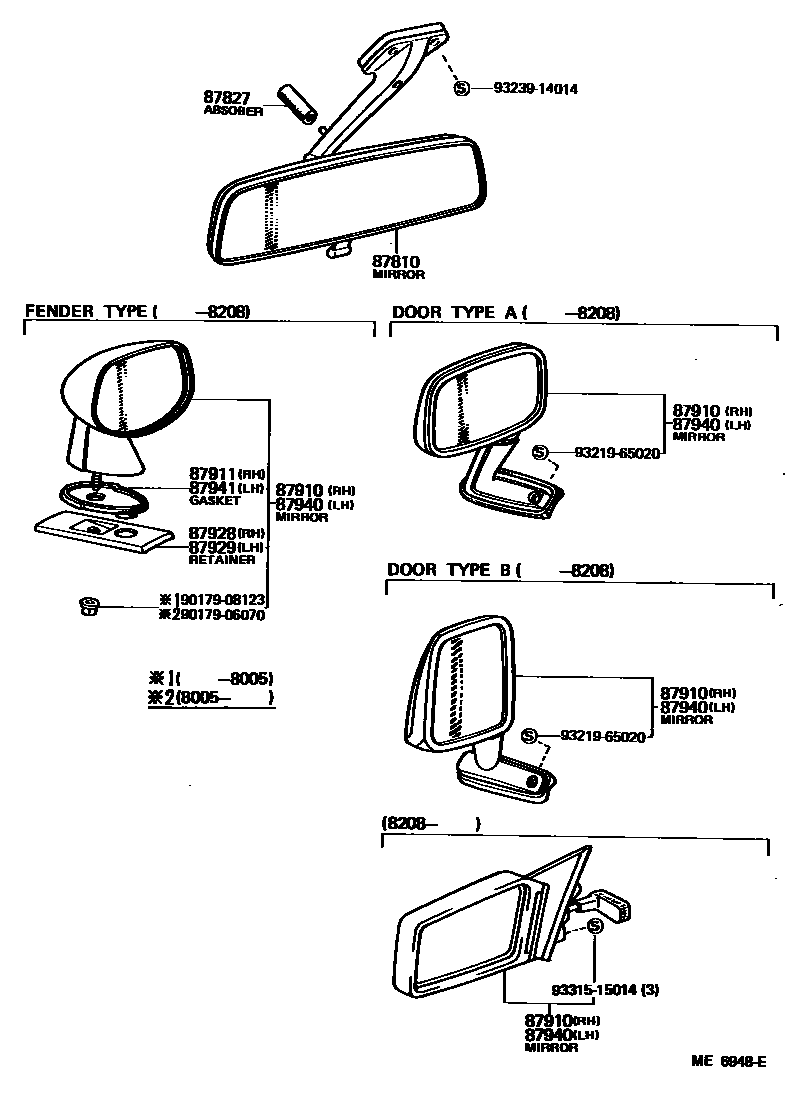

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-10130i197802-197903
NON GLARE TYPE,EEC SPEC
main87810-10131i198208-198303
NON GLARE TYPE
main87810-10140i197802-198206
main87810-10142i198303-198409
EEC SPEC
main87810-10150i197802-198206
NON GLARE TYPE
main87810-10151i198208-198303
NON GLARE TYPE; NON GLARE TYPE
main87810-10160i197802-197903
EEC SPEC
main87810-10161i198208-198303
87827ABSORBER, INNER REAR VIEW MIRROR
main87828-23010i197802-198208
L=39
main87828-30010i198208-198409
L=43
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-10100i197802-198009
DOOR TYPE A
main87910-10101i198009-198208
DOOR TYPE A
main87910-10160i198208-198409
MANUAL TYPE
main87910-10170i198208-198409
MANUAL TYPE
main87910-10180i198208-198409
REMOTE CONTROL TYPE
main87910-10190i198208-198409
REMOTE CONTROL TYPE
main87910-19335i197802-198005
FENDER TYPE
main87910-19336i198005-198208
FENDER TYPE
main87910-96440i197810-198008
DOOR TYPE B
main87910-96441i198008-198208
DOOR TYPE B
87911GASKET, OUTER REAR VIEW MIRROR, RH
main87911-10030i197802-198005
IKI,MARK=256
main87911-10031i198005-198208
IKI,MARK=275
main87911-10040i197802-198005
MURAKAMI,MARK=0431
main87911-10041i198005-198208
MURAKAMI,MARK=0567
87928RETAINER, OUTER REAR VIEW MIRROR, RH
main67118-10030i197802-198005
IKI
main67118-10031i198005-198208
IKI
main67118-10040i197802-198005
MURAKAMI
main67118-10041i198005-198208
MURAKAMI
87929RETAINER, OUTER REAR VIEW MIRROR, LH
main67119-10020i197802-198005
IKI
main67119-10021i198005-198208
IKI
main67119-10030i197802-198005
MURAKAMI
main67119-10031i198005-198208
MURAKAMI
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-10090i197802-198009
DOOR TYPE A
main87940-10091i198009-198208
DOOR TYPE A
main87940-10160i198208-198409
MANUAL TYPE
main87940-10170i198208-198409
MANUAL TYPE
main87940-10180i198208-198409
REMOTE CONTROL TYPE
main87940-10190i198208-198409
REMOTE CONTROL TYPE
main87940-19335i197802-198005
FENDER TYPE
main87940-19336i198005-198208
FENDER TYPE
main87940-96440i197810-198008
DOOR TYPE B
main87940-96441i198008-198208
DOOR TYPE B
87941GASKET, OUTER REAR VIEW MIRROR, LH
main87941-10030i197802-198005
IKI,MARK=256
main87941-10031i198005-198208
IKI,MARK=275
main87941-10040i197802-198005
MURAKAMI,MARK=0431
main87941-10041i198005-198208
MURAKAMI,MARK=0567
9017906070
main90179-06070
9017908123
main90179-08123
9321965020
main93219-65020
9323914014
main93239-14014
9331515014
main93315-15014

13 parts on this diagram · 1 diagram in section

MIRROR for Toyota STARLET

This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota STARLET. Key components include: MIRROR ASSY, INNER REAR VIEW, ABSORBER, INNER REAR VIEW MIRROR, MIRROR ASSY, OUTER REAR VIEW, RH, GASKET, OUTER REAR VIEW MIRROR, RH, RETAINER, OUTER REAR VIEW MIRROR, RH.
