Toyota STARLET — METER

83100BBULB, COMBINATION METER, NO.1

main83109-10020×2i199201-199309

14V 3.4W,GREEN CAP,W(3-GUN METER) OR W(3-GUN METER & SPEED METER)

main83109-10030i199201-199601

14V 1.4W,GREEN CAP

main83109-30070i199212-199601

14V 2.0W,W/O SOCKET

main83119-24070×7i199405-199601

12V 1.4W W(SOCKET)

main83119-24130×7i199204-199405

12V1.4W WHITE W(SKT)

main83119-32010i199201-199309

14V 3.0W; 14V 3.0W,INDONESIA(CKD) & W(TACHOMETER) OR W(TACHOMETER)

main90981-11018×10i198912-199201

12V 1.2W W/O SOCKET,INDONESIA(CKD) OR W(SPEED METER); 12V 1.2W W/O SOCKET,INDONESIA(CKD) OR W(TACHOMETER & SPEED METER); 12V 1.2W W/O SOCKET,MEASURES FOR HEAT CNTRY SPEC OR W(SPEED METER); 12V 1.2W W/O SOCKET,MEASURES FOR HEAT CNTRY SPEC OR W(TACHOMETER & SPEED METER); 12V 1.2W W/O SOCKET,W(3-GUN METER)

main99132-12034×5i198912-199201

12V 3.4W; 12V 3.4W,INDONESIA(CKD) & W(TACHOMETER) OR W(TACHOMETER & SPEED METER); 12V 3.4W,INDONESIA(CKD) OR W(SPEED METER)

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×3i199201

BULB:12V 3.4W; BULB:14V 3.4W; W(3-GUN METER),BULB:14V 3.4W

main83101-14040×10i198912-199201

12V 1.4W; INDONESIA(CKD) & W(SPEED METER),BULB:12V 1.4W; INDONESIA(CKD) OR INDONESIA(CKD) & W(3-GUN METER) OR W(SPEED METER),BULB:12V 1.4W; INDONESIA(CKD) OR INDONESIA(CKD) & W(TACHOMETER) OR W(TACHOMETER),BULB:12V 1.4W; MEASURE FOR HEAT CNTRY SPEC,BULB:12V 1.4W; MEASURES FOR HEAT CNTRY SPEC OR W(SPEED METER),BULB:12V 1.4W; W(3-GUN METER),BULB:12V 1.4W

main83101-24010i199405-199601

BULB:12V 3.0W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83149-10130i198912-199201

W(TACHOMETER)

main83149-10210i198912-199201

INDONESIA SPEC & W(TACHOMETER) OR W(TACHOMETER & SPEEDOMETER---MILE/KM); INDONESIA SPEC OR W(SPEEDOMETER---MILE/KM); W(SPEEDOMETER---MILE/KM); W(TACHOMETER & SPEEDOMETER---MILE/KM)

main83149-10330i198912-199201

W(SPEEDOMETER---MILE/KM); W/O(TACHOMETER) & W(SPEEDOMETER---MILE/KM)

main83149-10390i198912-199201

W/O(TACHOMETER)

main83149-10510i198912-199201

HEAT COUNTRY SPEC; INDONESIA SPEC; INDONESIA SPEC & W/O(TACHOMETER)

main83149-10610i199204-199212

main83149-10611i199212-199601

main83149-10630i199204-199212

main83149-10631i199212-199405

main83149-10690i199201

W(TACHOMETER)

main83149-10710i199405-199601

main83247-1M010i199201-199212

main83247-1M011i199212-199601

main83247-1M030i199201-199212

main83247-1M031i199212-199405

main83247-1M150i199201

W/O(TACHOMETER)

main83247-1M170i199201-199405

HEAT COUNTRY SPEC

main83247-1M190i199405-199601

83109BULB, COMBINATION METER, NO.2

main83109-14030×4i198912-199201

12V 3.4W,AMBER CAP

main83109-20010×2i198912-199201

14V 1.4W,BLUE CAP

main83109-24010i199201

12V 1.4W,GREEN CAP

main83109-24020×3i199201

12V3.4W W(GREEN CAP)

83110SPEEDOMETER ASSY

main83110-10870i198912-199201

W(SPEEDOMETER---MILE/KM); W/O(TACHOMETER)

main83110-10890i198912-199201

HEAT COUNTRY SPEC; W(TACHOMETER)

main83110-1C020i198912-199201

INDONESIA SPEC; INDONESIA SPEC & W/O(TACHOMETER)

main83110-1C030i198912-199201

W(TACHOMETER)

main83110-1C050i198912-199201

W(COMBINATION METER) & MILE/KM; W(SPEEDOMETER---MILE/KM)

main83110-1C060i198912-199201

INDONESIA SPEC; INDONESIA SPEC & W(TACHOMETER)

main83110-1C070i199204-199208

main83110-1C071i199208-199601

main83110-1C080i199201-199309

W(TACHOMETER)

main83110-1C090i199201

W(COMBINATION METER) & MILE/KM; W(SPEEDOMETER---MILE/KM)

main83110-1C100i199201-199309

INDONESIA SPEC; INDONESIA SPEC & W(TACHOMETER)

main83110-1C120i199201-199208

main83110-1C121i199208-199601

main83110-1C130i199201-199208

main83110-1C131i199208-199601

main83110-1C140i199201-199309

W(TACHOMETER)

main83110-1C150i199201

W(SPEEDOMETER---MILE/KM); W/O(TACHOMETER)

main83110-1C450i199201-199309

INDONESIA SPEC; INDONESIA SPEC & W/O(TACHOMETER)

main83110-1C460i199309

W(TACHOMETER)

main83110-1C480i199309

W(TACHOMETER)

83132CASE, COMBINATION METER

main83132-1C070i198912-199201

W(TACHOMETER)

main83132-1C090i198912-199201

INDONESIA CKD & W(*TAC) OR W(*TAC) & MILE/KM; INDONESIA SPEC OR W(SPEEDOMETER---MILE/KM); W(SPEEDOMETER---MILE/KM); W(TACHOMETER & SPEEDOMETER---MILE/KM)

main83132-1C210i198912-199201

HEAT COUNTRY SPEC; W/O(TACHOMETER)

main83132-1C390i199204-199405

main83132-1C430i199204-199405

main83132-1C470i199201-199405

W(TACHOMETER)

main83132-1C490i199201-199309

INDONESIA CKD & W(*TAC) OR W(*TAC) & MILE/KM; INDONESIA SPEC OR W(SPEEDOMETER---MILE/KM); W(SPEEDOMETER---MILE/KM); W(TACHOMETER & SPEEDOMETER---MILE/KM)

main83132-1C510i199201-199405

main83132-1C530i199201-199405

main83132-1C590i199201-199405

W/O(TACHOMETER)

main83132-1C650i199201-199405

HEAT COUNTRY SPEC

main83132-1C710i199405-199601

main83132-1C730i199405-199601

main83132-1C790i199405

W/O(TACHOMETER)

main83132-1C830i199405-199601

HEAT COUNTRY SPEC

main83132-1C850i199405-199601

main83132-1C870i199405-199601

main83132-1M030i199405

W(TACHOMETER)

main83132-1M050i199405

W(SPEEDOMETER---MILE/KM); W(TACHOMETER & SPEEDOMETER---MILE/KM)

83133PLATE, COMBINATION METER, NO.1

main83133-10790i198912-199201

W(TACHOMETER)

main83133-10830i198912-199201

HEAT COUNTRY SPEC; W/O(TACHOMETER)

main83133-10850i199201

W/O(TACHOMETER)

main83133-10870i199201-199601

main83133-10890i199204-199601

main83133-1C010i199201

W(TACHOMETER)

83138GLASS, SPEEDOMETER

main83138-10430i198912-199201

W(TACHOMETER)

main83138-10450i199201-199601

main83138-10470i198912-199201

HEAT COUNTRY SPEC

main83138-10490i199201

W(TACHOMETER)

83146ACOVER, SPEEDMETER

main83146-30830×5i198912-199201

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-10430i198912-199201

W(TACHOMETER)

main83243-10490i198912-199201

HEAT COUNTRY SPEC; W/O(TACHOMETER)

main83243-10690i199201-199405

W/O(TACHOMETER)

main83243-10710i199201-199405

main83243-10770i199201

W(TACHOMETER)

main83243-10830i199405

W/O(TACHOMETER)

main83243-10850i199405-199601

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-10250i198912-199201

W(TACHOMETER)

main83244-10270i198912-199201

W/O(TACHOMETER)

main83244-10290i198912-199201

HEAT COUNTRY SPEC

main83244-10330i199201

W/O(TACHOMETER)

main83244-10350i199405-199601

HEAT COUNTRY SPEC

main83244-10370i199201

W(TACHOMETER)

83248CHIME, SPEED WARNING

main86640-10060i199201-199601

main86640-10070i199204-199601

83970BUZZER ASSY, REVERSE WARNING

main83970-20010i199201-199601

9009300416

main90093-00416

9009900225

main90099-00225

9009900917

main90099-00917

9009900929

main90099-00929

9014950032

main90149-50032

9015940027

main90159-40027

9016750002

main90167-50002

9354014020

main93540-14020

9411540400

main94115-40400

9451100400

main94511-00400

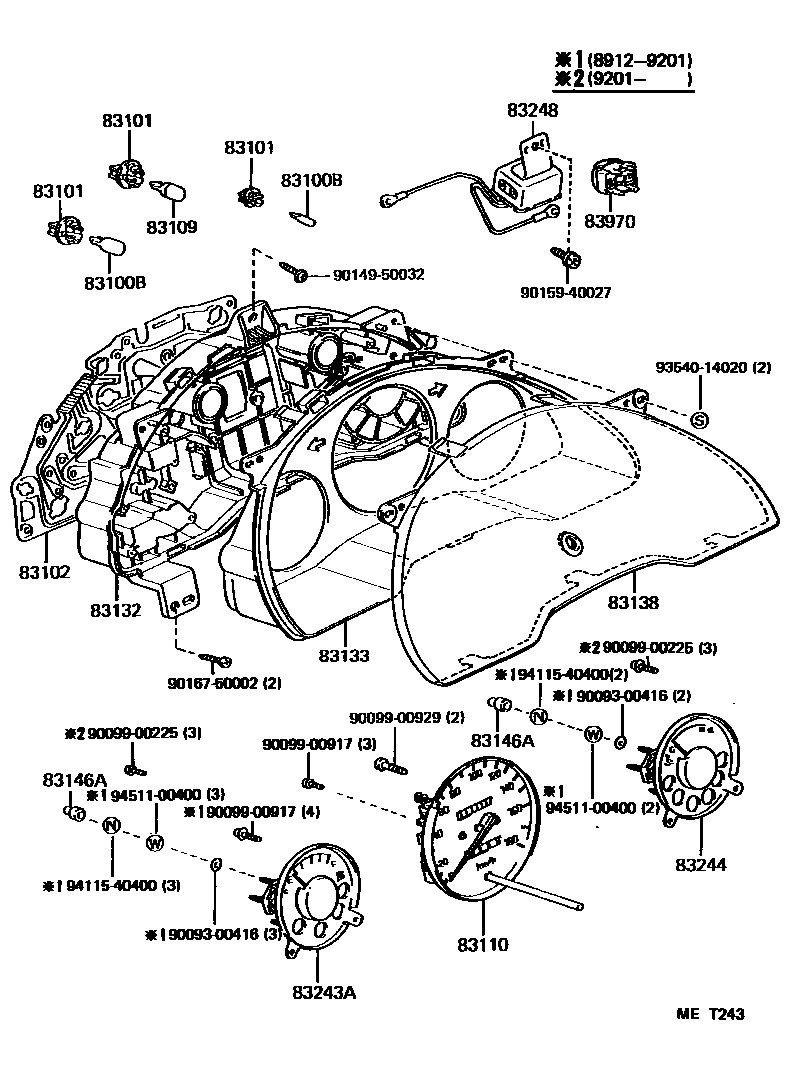

23 parts on this diagram · 5 diagrams in section

METER for Toyota STARLET

This section contains 35 genuine Toyota parts for the METER system of the Toyota STARLET. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, BULB, COMBINATION METER, NO.2, SPEEDOMETER ASSY.
