Toyota STARLET — METER

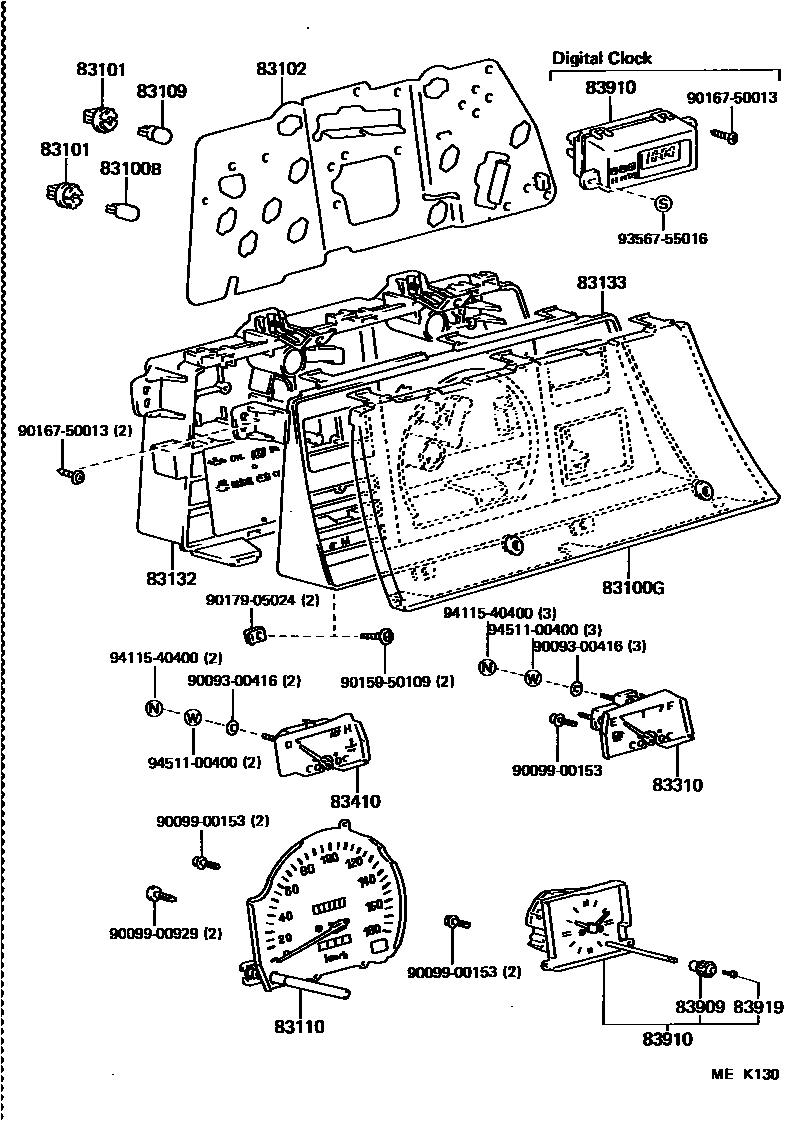

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main90981-11018×9i198612-198912
12V 1.2W W/O SOCKET,12V 1.4W
main99132-12034×8i198410-198912
12V 3.4W,12V 3.4W
83100GGLASS, COMBINATION METER
main83138-10030i198410-198612
W/TRIP COUNTER
main83138-10050i198410-198612
W/TRIP COUNTER & TACHOMETER
main83138-10070i198410-198612
W/TRIP COUNTER & TACHOMETER
main83138-10090i198410-198612
main83138-10350i198410-198612
W/TRIP COUNTER & ANALOG.CLOCK
main83138-10390i198612-198912
W/TACHOMETER; W/TRIP COUNTER
main83138-10410i198612-198912
W/TRIP COUNTER & ANALOG.CLOCK
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×10i198410-198912
12V 3.4W
main83101-14040×9i198612-198912
12V 1.4W
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
main83247-10790i198410-198612
main83247-1C030i198410-198612
W/ANALOGUE CLOCK
main83247-1C090i198410-198612
W/TACHOMETER
main83247-1C130i198410-198612
W/TACHOMETER
main83247-1C510i198612-198912
KM
main83247-1C530i198612-198912
MILE/KM
main83247-1C550i198612-198912
KM,W/ANALOG,CLOCK
main83247-1C570i198612-198912
MILE/KM,W/ANALOG,CLOCK
main83247-1C830i198612-198912
MILE/KM,W/TACHOMETER
main83247-1C850i198612-198912
KM,W/TACHOMETER
83109BULB, COMBINATION METER, NO.2
main83109-14030×4i198612-198912
12V 3.4W,AMBER CAP
main83109-24030×4i198410-198912
12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP
83110SPEEDOMETER ASSY
main83110-10830i198902-198912
INDONESIA SPEC
main83110-10840i198902-198912
INDONESIA SPEC
main83110-1C200i198410-198612
KM
main83110-1C210i198410-198612
KM,W/TRIP COUNTER
main83110-1C220i198410-198612
KM,W/TRIP COUNTER & *TAC
main83110-1C230i198410-198612
KM,W/TRIP COUNTER & *TAC
main83110-1C240i198410-198612
MILE/KM
main83110-1C250i198410-198612
MILE/KM,W/TRIP COUNTER
main83110-1C260i198410-198612
MILE/KM,W/TRIP COUNTER & *TAC
main83110-1C270i198410-198612
MILE/KM,W/TRIP COUNTER & *TAC
main83110-1C330i198612-198912
KM,W/TACHOMETER
main83110-1C340i198612-198912
S-PACKAGE,KM,W/*TAC
main83110-1C350i198612-198912
MILE/KM,W/TACHOMETER
main83110-1C360i198612-198912
S-PACKAGE,MILE/KM,W/*TAC
main83110-1C410i198612-198912
KM
main83110-1C430i198612-198912
MILE/KM
83132CASE, COMBINATION METER
main83132-10550i198410-198612
main83132-10570i198410-198612
W/TACHOMETER
main83132-10610i198410-198612
W/TACHOMETER
main83132-10730i198612-198912
main83132-10890i198612-198912
W/TACHOMETER
83133PLATE, COMBINATION METER, NO.1
main83133-10630i198410-198612
W/TRIP COUNTER & ANALOG.CLOCK
main83133-10650i198410-198612
main83133-10670i198410-198612
W/TRIP COUNTER
main83133-10690i198410-198612
W/TRIP COUNTER & TACHOMETER
main83133-10730i198612-198912
main83133-10750i198612-198912
W/TRIP COUNTER & ANALOG.CLOCK
main83133-10770i198612-198912
W/TACHOMETER
83310GAGE ASSY, FUEL RECEIVER
main83243-10230i198410-198612
main83243-10250i198410-198612
W/TACHOMETER
main83243-10310i198612-198912
main83243-10330i198612-198912
W/TACHOMETER
main83243-10350i198612-198912
S-PACKAGE,W/TACHOMETER
main83243-10370i198705-198912
*ME
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
main83244-10150i198410-198612
main83244-10170i198410-198612
*ME
main83244-10190i198410-198612
W/TACHOMETER
main83244-10230i198410-198612
W/TACHOMETER,*ME
83909KNOB, CLOCK
main83909-14012i198410-198912
ANALOGUE
83910CLOCK ASSY
main83910-10130i198410-198612
ANALOGUE
main83910-10140i198410-198612
DIGITAL
main83910-10141i198612-198912
DIGITAL
main83910-10160i198612-198912
ANALOGUE
83919SCREW, CLOCK
main83919-14012i198410-198912
ANALOGUE
9009300416
main90093-00416
9009900153
main90099-00153
9009900929
main90099-00929
9015950109
main90159-50109
9016750013
main90167-50013
9017905024
main90179-05024
9356755016
main93567-55016
9411540400
main94115-40400
9451100400
main94511-00400

22 parts on this diagram · 5 diagrams in section

METER for Toyota STARLET

This section contains 36 genuine Toyota parts for the METER system of the Toyota STARLET. Key components include: BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, BULB, COMBINATION METER, NO.2.
