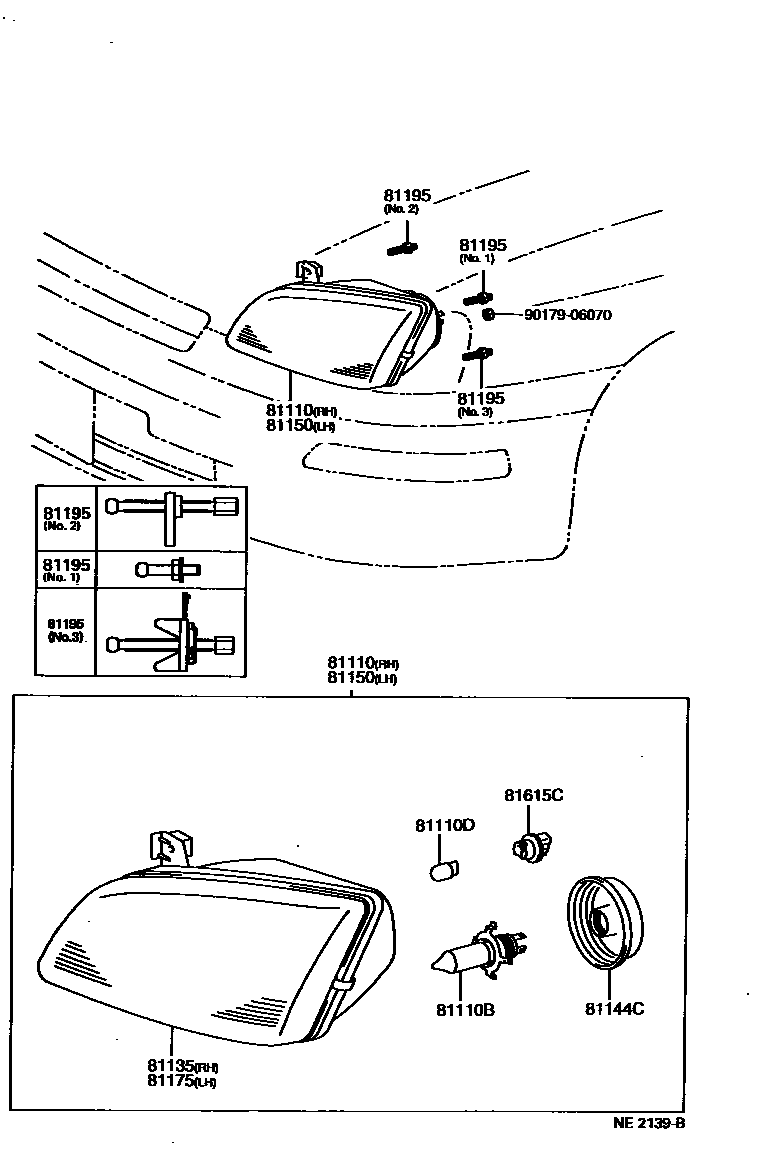

Toyota STARLET — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-10810i199601

LH TRAFFIC

main81110-10820i199601

main81110-10830i199601-199712

W(YELLOW HEADLAMP)

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13016×2i199601-199712

12V 60/55W,*HAL *YE

main90981-22004×2i199601

12V 60/55W,*HAL *WH

81110DBULB(FOR HEADLAMP, NO.2)

main99132-12050×2i199601

12V 5W

81135UNIT ASSY, HEADLAMP, RH

main81130-10810i199601

LH TRAFFIC

main81130-10820i199601

81144CCOVER, HEADLAMP SOCKET

main81139-10840×2i199601-199603

main90075-65008×2i199603-199712

LH TRAFFIC

main90075-99034×2i199712

81150HEADLAMP ASSY, LH

main81150-10770i199601

LH TRAFFIC

main81150-10780i199601

main81150-10790i199601-199712

W(YELLOW HEADLAMP)

81175UNIT ASSY, HEADLAMP, LH

main81170-10770i199601

LH TRAFFIC

main81170-10780i199601

81195SCREW, HEADLAMP

main81195-10040×2i199601

NO.2

main81195-10050×2i199601

NO.3

main81195-10060×2i199601

NO.1

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60001×2i199601

9017906070

main90179-06070

10 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota STARLET

This section contains 10 genuine Toyota parts for the HEADLAMP system of the Toyota STARLET. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET.
