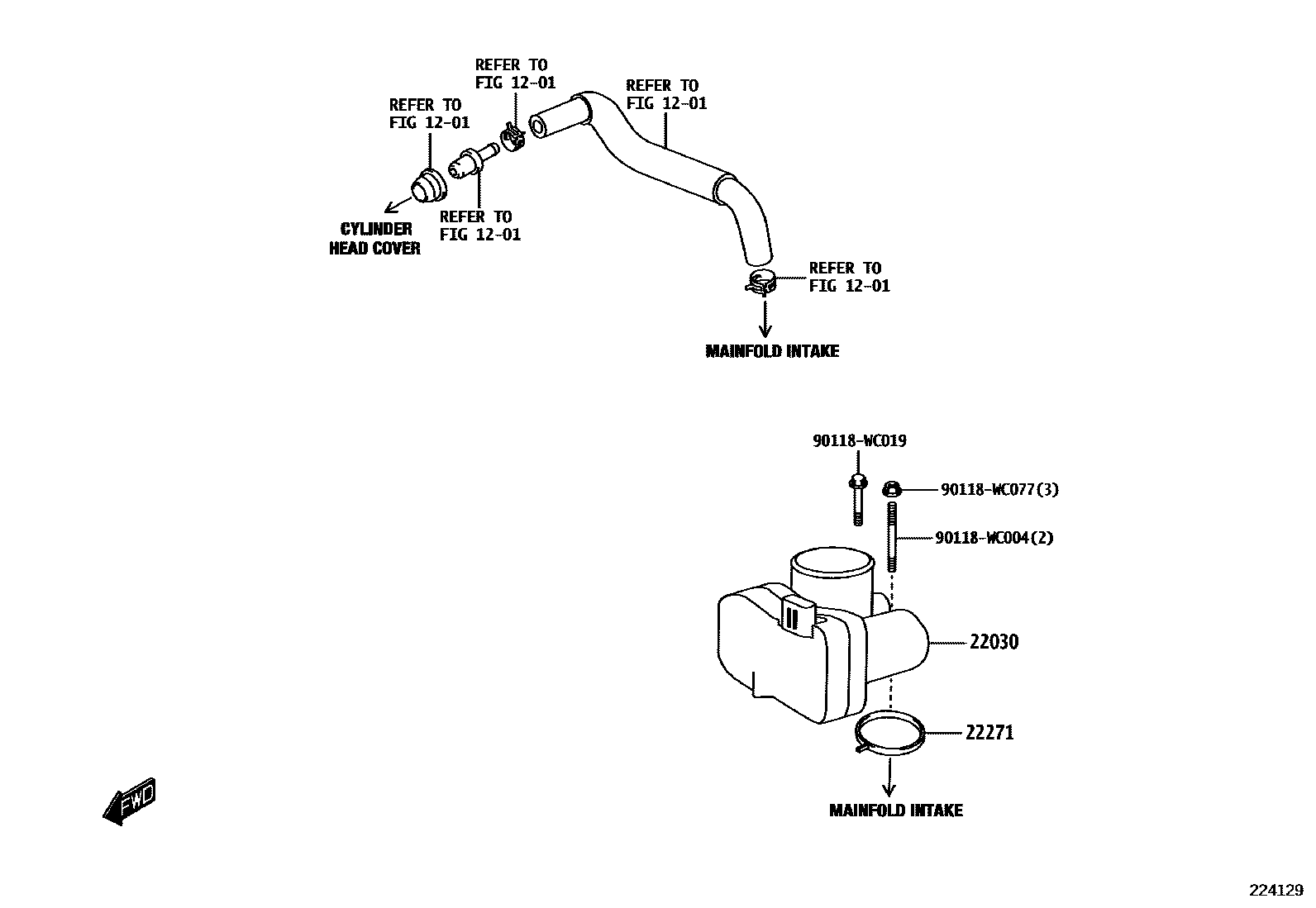

Toyota STARLET — FUEL INJECTION SYSTEM

1201VENTILATION HOSE

→ Go to FIG 12-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-WC002i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

22271GASKET, THROTTLE BODY

main22271-WC002i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

90118WC004

main90118-WC004

90118WC019

main90118-WC019

90118WC077

main90118-WC077

6 parts on this diagram · 5 diagrams in section

FUEL INJECTION SYSTEM for Toyota STARLET

This section contains 20 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota STARLET. Key components include: VENTILATION HOSE, MANIFOLD, AIR CLEANER, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY.
