Toyota STARLET — FRONT SPRING & SHOCK ABSORBER

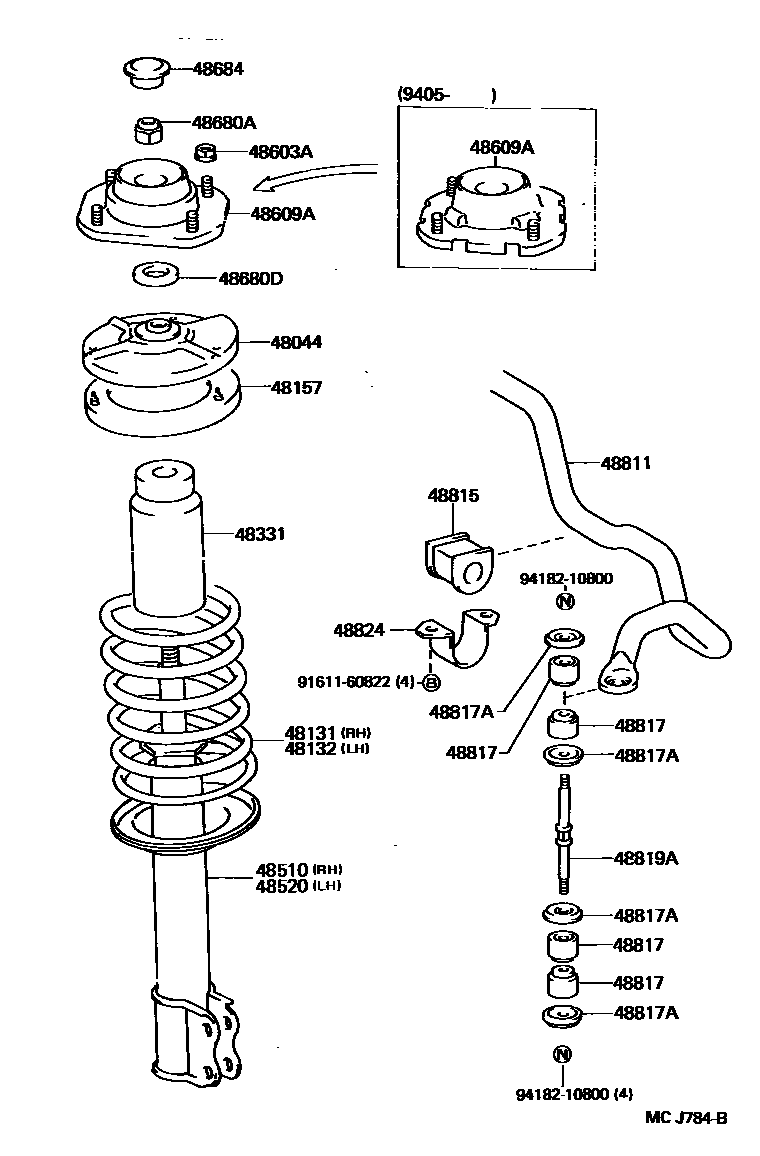

Parts diagram
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
main48044-10030×2i198912
48131SPRING, FRONT COIL, RH
main48131-10460i198912-199201
main48131-10501i199201-199601
main48131-10510i198912-199001
SEVERE USAGE PACKAGE
main48131-10520i199009-199201
SEVERE USAGE PACKAGE
main48131-10621i199204-199601
main48131-10622i199201
main48131-10820i199201
INDONESIA SPEC
main48131-10830i199405
SEVERE UASGE PACKAGE
48132SPRING, FRONT COIL, LH
main48131-10460i198912-199201
main48131-10461i199201-199601
main48131-10501i199201-199601
main48131-10510i199001-199201
HARSH ROAD PACKAGE
main48131-10611i199204-199601
main48131-10621i199204-199601
main48131-10622i199201
main48131-10820i199201
INDONESIA SPEC
main48131-10830i199405-199601
HARSH ROAD PACKAGE
48157INSULATOR, FRONT COIL SPRING, UPPER
main48157-10020×2i198912
48331BUMPER, FRONT SPRING, NO.1
main48331-10090×2i198912-199009
main48331-16060×2i199009
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-10211i199201-199601
main48510-10221i199405-199601
SEVERE USAGE PACKAGE & INDONESIA SPEC
main48510-10240i198912-199201
main48510-10241i199405
SEVERE UASGE PACKAGE S
main48510-10260i199001-199201
SEVERE USAGE PACKAGE S; SEVERE USEGE PACKAGE S OR INDONESIA SPEC
main48510-19585i199601
INDONESIA CKD
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-10191i199201-199601
main48520-10201i199201-199405
SEVERE USEGE PACKAGE S OR INDONESIA SPEC
main48520-10220i198912-199201
main48520-10221i199201-199405
main48520-10240i199001-199201
SEVERE USAGE PACKAGE S; SEVERE USEGE PACKAGE S OR INDONESIA SPEC
main48520-19275i199601
INDONESIA CKD
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90179-08090×6i198912
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
main48609-10090×2i198912-199201
main48609-10091×2i199201-199405
main48609-10100×2i199201-199405
main48609-10130×2i199405
main48609-10140×2i199506
SEVERE USAGE PACKAGE S
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main94182-11400×2i198912
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
main90303-22049×2i198912
48684COVER, BEARING DUST
main48684-10010×2i198912
48811BAR, STABILIZER, FRONT
main48811-10290i198912
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-14130×2i198912
48817CUSHION, FRONT STABILIZER
main48817-10020×8i198912
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
main90948-02032×8i198912
48819ABOLT, FRONT STABILIZER
main48819-10010×2i198912
48824BRACKET, STABILIZER, FRONT
main48824-20040×2i198912
9161160822
main91611-60822
9418210800
main94182-10800

20 parts on this diagram · 1 diagram in section

FRONT SPRING & SHOCK ABSORBER for Toyota STARLET

This section contains 20 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota STARLET. Key components include: SEAT SUB-ASSY, FRONT SPRING, NO.1, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER, BUMPER, FRONT SPRING, NO.1.
