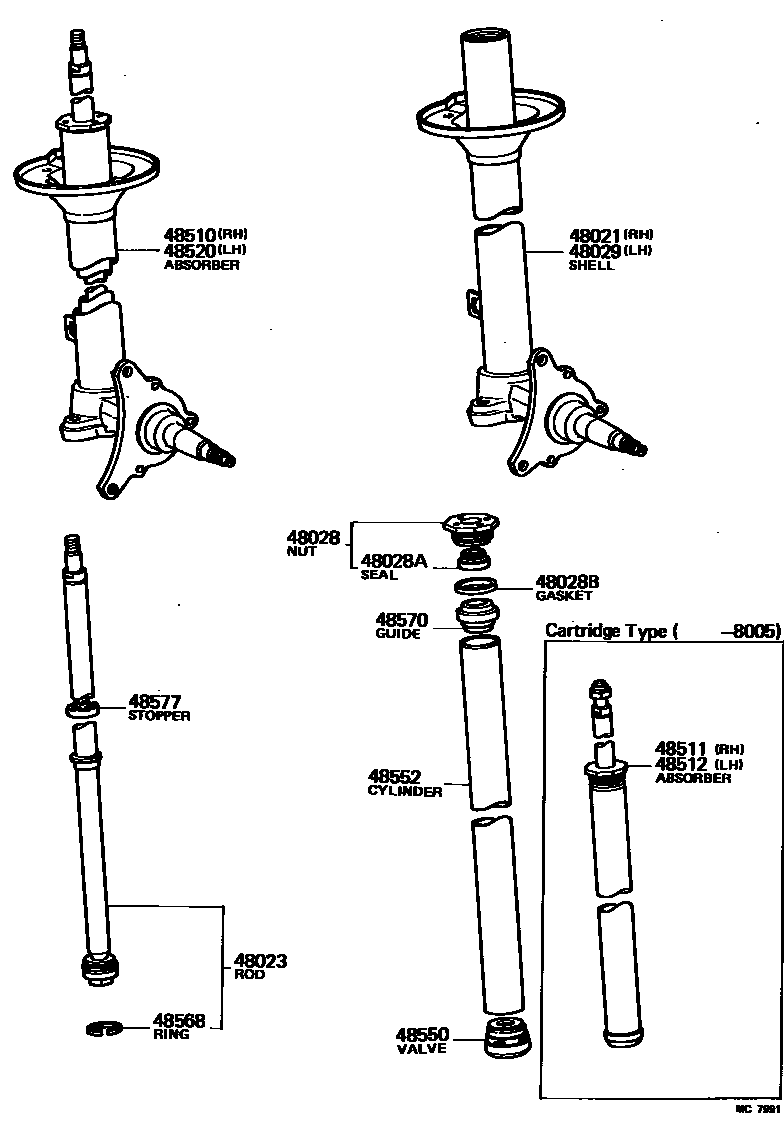

Toyota STARLET — FRONT SPRING & SHOCK ABSORBER

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-10030i197802-198005

main48021-10040i198005-198409

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-10060×2i197802-198005

main48023-10080×2i198005-198208

main48023-10100×2i198208-198409

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-10020×2i197802-198409

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-20006×2i197802-198409

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-36002×2i197802-198409

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-10020i197802-198005

main48029-10030i198005-198409

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-10060i197802-198005

main48510-10080i198005-198208

main48510-10100i198208-198409

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-10040i197802-198005

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-10040i197802-198005

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-10040i197802-198005

main48520-10060i198005-198208

main48520-10080i198208-198409

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-10050×2i198005-198208

main48550-10060×2i197802-198005

main48550-16010×2i198208-198409

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-10030×2i197802-198409

48568RING, SHOCK ABSORBER PISTON

main48568-12010×2i197802-198208

main48568-12020×2i198208-198306

main48568-12021×2i198306-198409

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-10020×2i197802-198409

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-10010×2i197802-198409

15 parts on this diagram · 2 diagrams in section

FRONT SPRING & SHOCK ABSORBER for Toyota STARLET

This section contains 39 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota STARLET. Key components include: SHELL SUB-ASSY, W/STEERING KNUCKLE, RH, ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT), NUT SUB-ASSY, SHOCK ABSORBER RING, SEAL, OIL(FOR SHOCK ABSORBER RING NUT), GASKET(FOR SHOCK ABSORBER RING NUT).
