Toyota STARLET — FRONT FENDER APRON & DASH PANEL

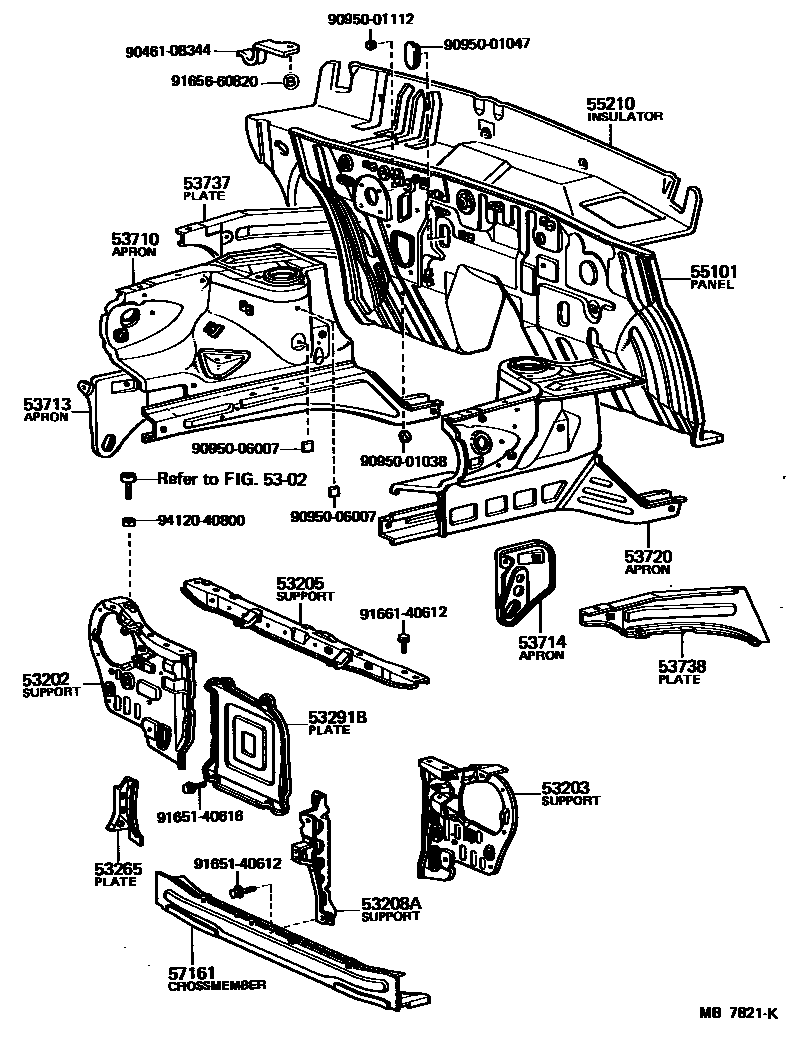

Parts diagram

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-10050i197802-198005

main53202-10051i198005-198108

main53202-10052i198108-198208

main53202-10053i198208-198409

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-10062i198108-198208

main53203-10063i198208-198409

main53203-10070i197802-198005

main53203-10071i198005-198108

main53203-10072i198108-198208

main53203-10073i198208-198306

main53203-10082i198306-198409

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-10040i197802-198005

main53205-10041i198005-198208

W/O HEADLAMP CLEANER

main53205-10042i198208-198409

W/O HEADLAMP CLEANER

main53205-10090i197802-198005

W/HEADLAMP CLEANER

main53205-10091i198005-198208

W/HEADLAMP CLEANER

main53205-10092i198208-198409

W/HEADLAMP CLEANER

main53205-10100i198005-198208

W/O HEADLAMP CLEANER

main53205-10101i198208-198310

W/O HEADLAMP CLEANER

main53205-10111i198310-198409

W/O HEADLAMP CLEANER

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-10010i197802-198005

main53208-10011i198005-198208

main53208-10012i198208-198409

53265PLATE, BATTERY CARRIER MOUNTING, NO.2

main53265-10010i197802-198005

53291BPLATE, RADIATOR COVER

main53291-10010i197802-198208

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53701-10121i198005-198104

main53701-10130i197802-198005

main53701-10140i197810-198005

W/COOLER

main53701-10141i198005-198104

W/COOLER

main53701-10190i198104-198108

main53701-10200i198104-198108

W/COOLER

main53701-10220i198108-198208

main53701-10230i198108-198208

W/COOLER

main53701-10231i198208-198409

53713APRON, FENDER SIDE, RH

main53707-10010i197802-198005

main53707-10011i198005-198208

main53713-10051i198208-198409

53714APRON, FENDER SIDE, LH

main53708-10010i197802-198005

main53708-10011i198005-198208

main53714-10051i198208-198409

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53702-10171i198005-198104

main53702-10180i197802-198005

main53702-10181i198005-198104

main53702-10220i198104-198108

main53702-10230i198104-198108

main53702-10240i198108-198109

main53702-10250i198108-198109

main53702-10251i198208-198409

main53702-10260i198109-198208

main53702-10270i198109-198208

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-10030i197802-198005

main53737-10040i198101-198104

main53737-10041i198104-198208

main53737-10042i198208-198409

main53737-10050i198005-198101

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-10030i197802-198005

main53738-10040i198308-198409

main53738-10041i198104-198308

main53738-10050i198101-198104

main53738-10060i198005-198101

55101PANEL SUB-ASSY, DASH

main55101-10190i197802-197905

main55101-10191i197905-198005

main55101-10192i198005-198108

main55101-10193i198108-198208

main55101-10200i197802-197905

main55101-10201i197905-198005

main55101-10202i198005-198108

main55101-10203i198108-198208

main55101-10270i198108-198208

main55101-10280i198108-198208

main55101-10320i198208-198409

main55101-10340i198208-198409

55210INSULATOR ASSY, DASH PANEL

main55210-10010i197802-198108

W/HEATER

main55210-10020i197802-198208

W/HEATER

main55210-10021i198208-198409

W/HEATER

main55210-10030i197802-198208

W/O HEATER

main55210-10031i198208-198409

W/O HEATER

main55210-10040i197802-198208

W/O HEATER

main55210-10041i198208-198409

W/O HEATER

main55210-10090i198108-198208

W/HEATER

main55210-10091i198208-198409

W/HEATER

57161CROSSMEMBER, FRONT

main57104-10040i197802-198005

main57104-10041i198005-198208

main57104-10042i198208-198409

main57104-10051i198208-198409

9046108344

main90461-08344

9095001038

main90950-01038

9095001047

main90950-01047

9095001112

main90950-01112

9095006007

main90950-06007

9165140612

main91651-40612

9165140616

main91651-40616

9165660820

main91656-60820

9166140612

main91661-40612

9412040800

main94120-40800

26 parts on this diagram · 2 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota STARLET

This section contains 38 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota STARLET. Key components include: HOOD & FRONT FENDER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK.
