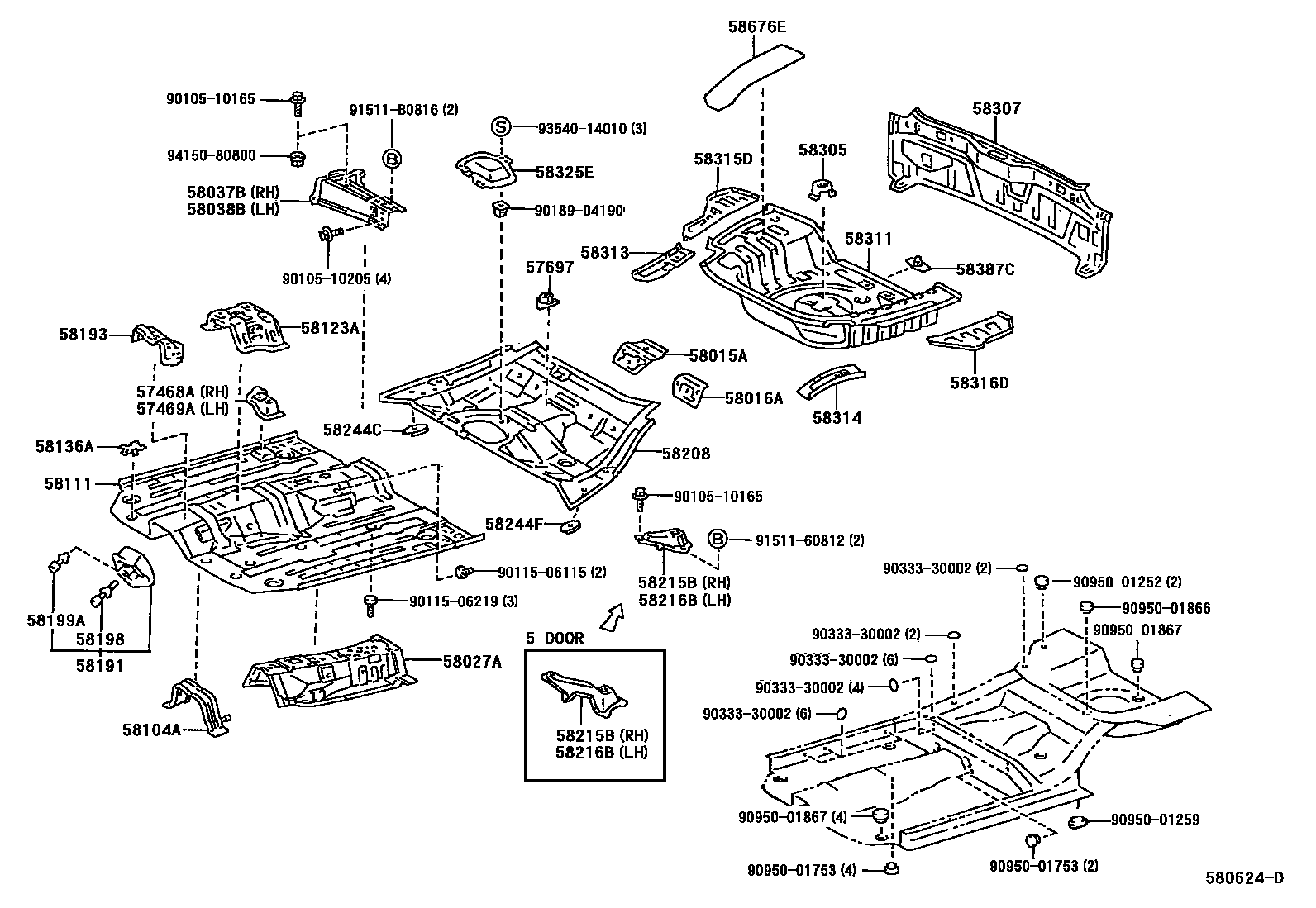

Toyota STARLET — FLOOR PAN & LOWER BACK PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57697RETAINER, REAR SEAT CUSHION
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58037BREINFORCE, CENTER PILLAR TO FLOOR, RH
58038BREINFORCE, CENTER PILLAR TO FLOOR, LH
58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
W(*80,DRIVER SIDE & PASSENGER SIDE)
58136ACOVER, FRONT FLOOR SERVICE HOLE
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
W(*80,DRIVER SIDE & PASSENGER SIDE)
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58244FBRACKET, REAR SEAT CUSHION MOUNTING, RH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58387CPLATE, REAR FLOOR FINISH
58676EPAD, REAR FLOOR SILENCER
9010510165
main90105-10165
9010510205
main90105-10205
9011506115
main90115-06115
9011506219
main90115-06219
9018904190
main90189-04190
9033330002
main90333-30002
9095001252
main90950-01252
9095001259
main90950-01259
9095001753
main90950-01753
9095001866
main90950-01866
9095001867
main90950-01867
9151160812
main91511-60812
91511B0816
main91511-B0816
9354014010
main93540-14010
9415080800
main94150-80800
46 parts on this diagram · 1 diagram in section
