Toyota STARLET — DISTRIBUTOR

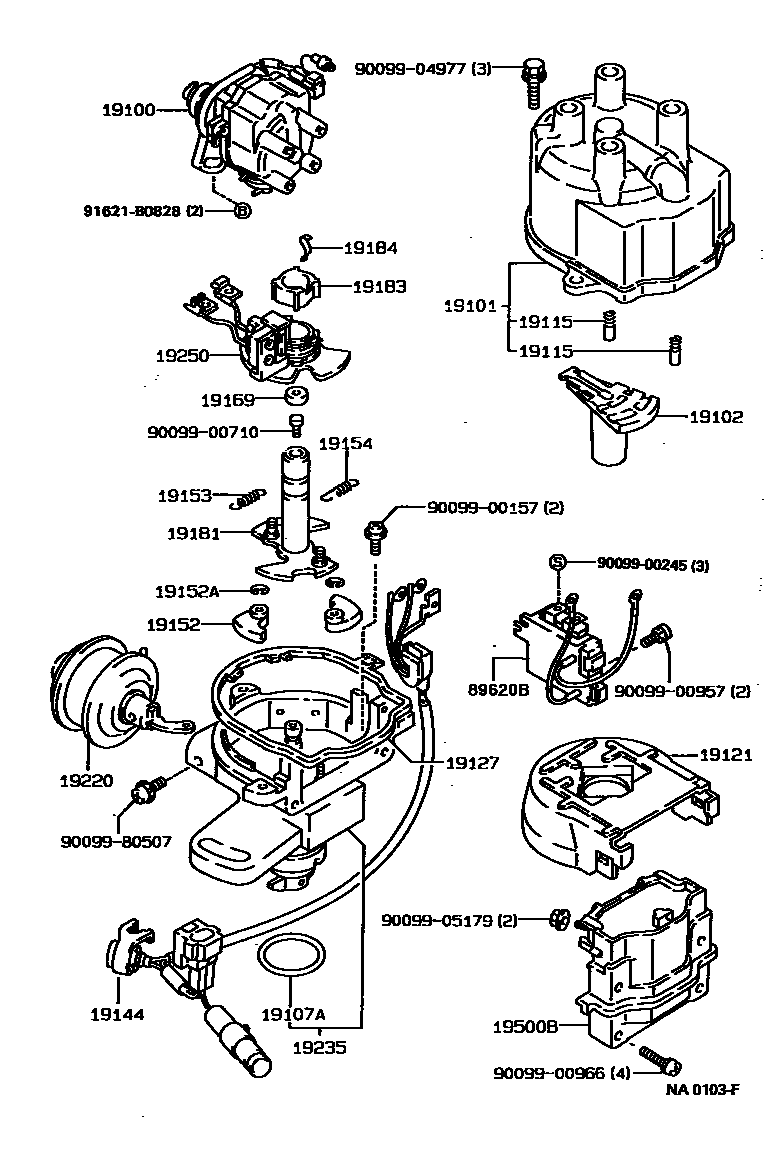

Parts diagram

19100DISTRIBUTOR ASSY

main19020-11320i199601

main19020-11380i199601

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i199601

main19101-11300i199601

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i199601

main19102-11370i199601

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14088i199601

main90099-14127i199601

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i199601

19121COVER, DUST PROOF

main19121-11080i199601

19127PACKING, DUST PROOF

main19127-15120i199601

19144LEAD, DISTRIBUTOR BREAKER

main19144-11120i199601

main19144-11350i199601

19152WEIGHT, GOVERNOR

main19152-15160×2i199601

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07122×2i199601

19153SPRING, GOVERNOR, A

main19153-11030i199601

19154SPRING, GOVERNOR, B

main19154-11030i199601

19169STOPPER, CAM GREASE

main19169-63011i199601

19181ROTOR, DISTRIBUTOR, SIGNAL

main19181-11066i199601

19183ROTOR, SIGNAL

main19183-15010i199601

19184SPRING, ROTOR SET

main19184-63010i199601

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-11320i199601

19235HOUSING, DISTRIBUTOR

main19235-11080i199601

main19235-11340i199601

19250GENERATOR ASSY, SIGNAL

main19251-16100i199601

19500BCOIL ASSY, IGNITION

main90919-02164i199601

89620BIGNITER ASSY

main89620-12340i199601

main89620-12420i199601

9009900157

main90099-00157

9009900245

main90099-00245

9009900710

main90099-00710

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

9009980507

main90099-80507

91621B0828

main91621-B0828

30 parts on this diagram · 2 diagrams in section

DISTRIBUTOR for Toyota STARLET

This section contains 32 genuine Toyota parts for the DISTRIBUTOR system of the Toyota STARLET. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING, PIECE, DISTRIBUTOR CAP, CENTER.
