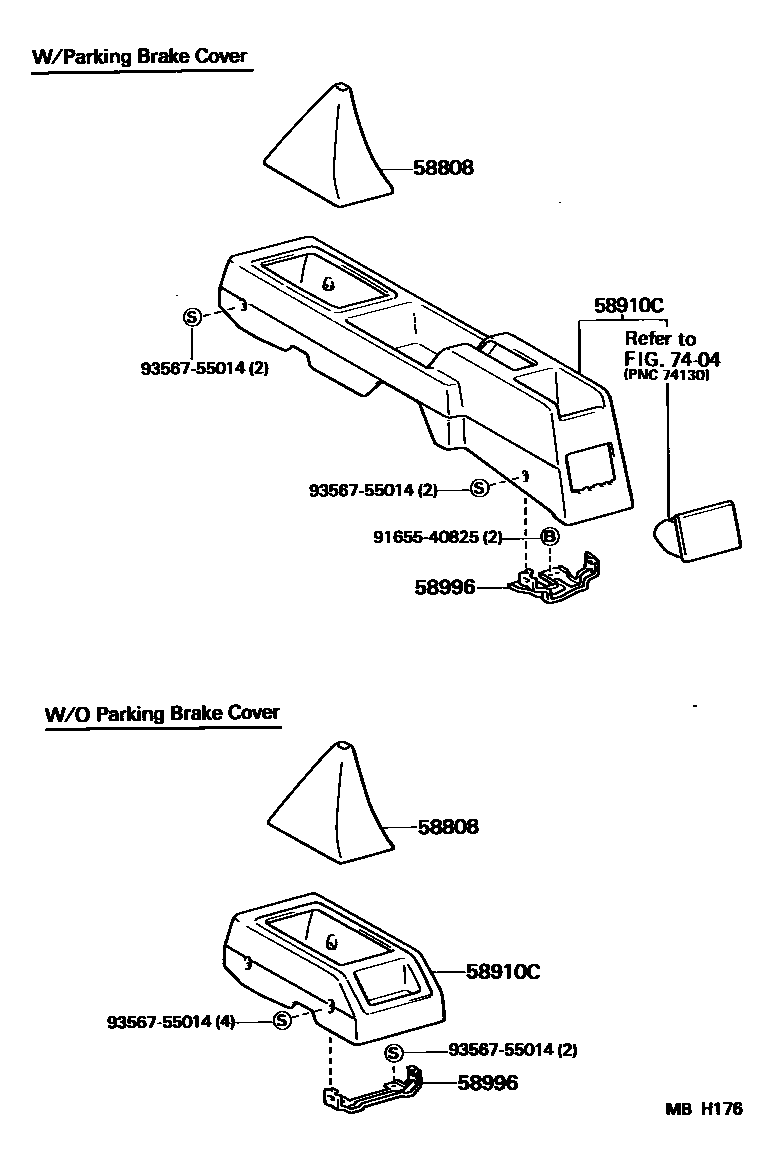

Toyota STARLET — CONSOLE BOX & BRACKET

0001 1 0002 1

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-10050-01iEP7#..MTM198410-198612

BLACK,BLACK

main58808-10070-01iEP7#..MTM198612-198912

BLACK,BLACK

58910CBOX ASSY, CONSOLE, REAR

main58910-10010-03iEP70,71..XL198410-198912

W/PARKING BRAKE COVER,GRAY,GRAY

main58910-10010-04iEP70,71..XL198410-198612

W/PARKING BRAKE COVER,BLUE,BLUE

main58910-10010-06iEP70,71..XL198612-198912

W/PARKING BRAKE COVER,BROWN,BROWN

main58911-10030-03iEP7#198410-198912

W/O PARKING BRAKE COVER,GRAY,GRAY

main58911-10030-04iEP7#198410-198612

W/O PARKING BRAKE COVER,BLUE,BLUE

main58911-10030-06iEP7#198612-198912

W/O PARKING BRAKE COVER,BROWN,BROWN

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-10030iEP70,71..XL198410-198912

W/PARKING BRAKE COVER

main58995-10040iEP7#198410-198912

W/O PARKING BRAKE COVER

7404

9165540825

main91655-40825

9356755014

main93567-55014

6 parts on this diagram · 2 diagrams in section
