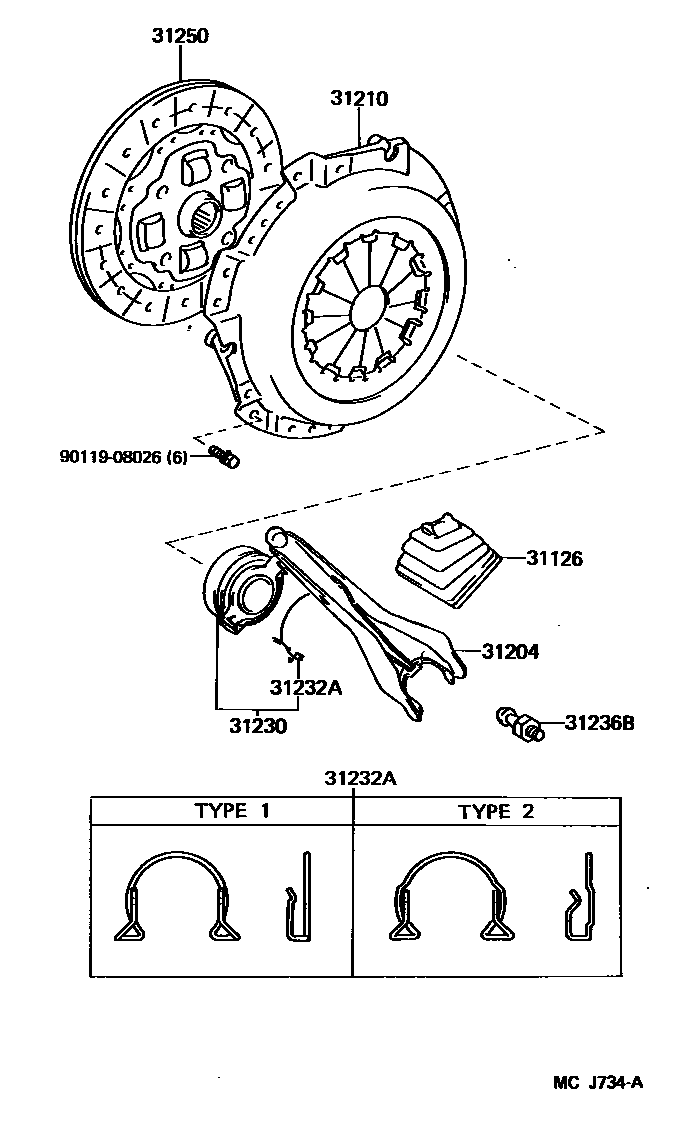

Toyota STARLET — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051i198912

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050i198912

31210COVER ASSY, CLUTCH

main31210-10080i198912

main31210-16071i199201-199601

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140i198912

31232ACLIP, RELEASE BEARING HUB

main31232-12040i198912

TYPE 1

main31232-16031i198912-199509

TYPE 2

31236BSUPPORT, RELEASE FORK

main31236-12011i198912

31250DISC ASSY, CLUTCH

main31250-10062i198912-199006

main31250-10063i199006-199104

main31250-10064i199104-199803

main31250-12173i199201-199601

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota STARLET

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota STARLET. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
