Toyota STARLETCLUTCH & RELEASE FORK

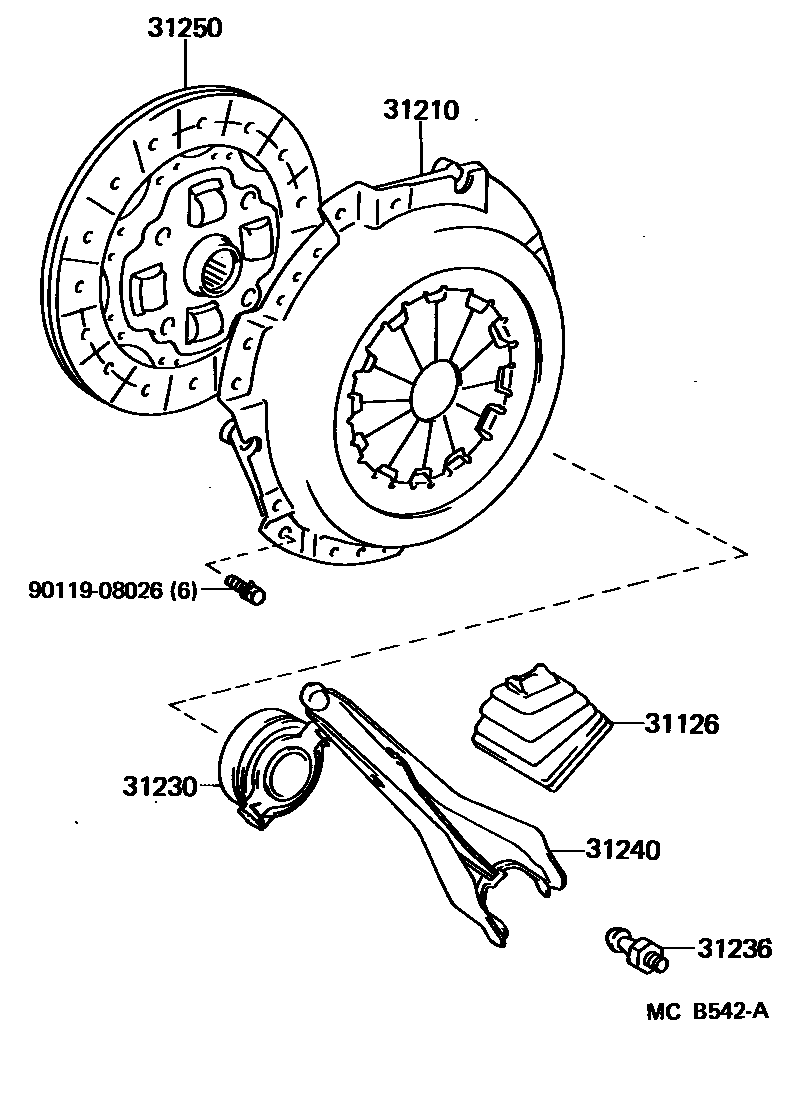

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-12050i198410-198701
main31126-12051i198701-198912
31210COVER ASSY, CLUTCH
main31210-10060i198410-198912
31230BEARING ASSY, CLUTCH RELEASE
main31230-12130i198410-198912
31236BALL, RELEASE FORK
main31236-12011i198410-198912
31240FORK ASSY, CLUTCH RELEASE
main31204-12050i198410-198912
31250DISC ASSY, CLUTCH
main31250-10060i198410-198702
main31250-10061i198702-198707
main31250-10062i198707-198912
9011908026

7 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota STARLET

This section contains 7 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota STARLET. Key components include: BOOT, CLUTCH RELEASE FORK, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, BALL, RELEASE FORK, FORK ASSY, CLUTCH RELEASE.
