Toyota STARLET — CLUTCH & RELEASE FORK

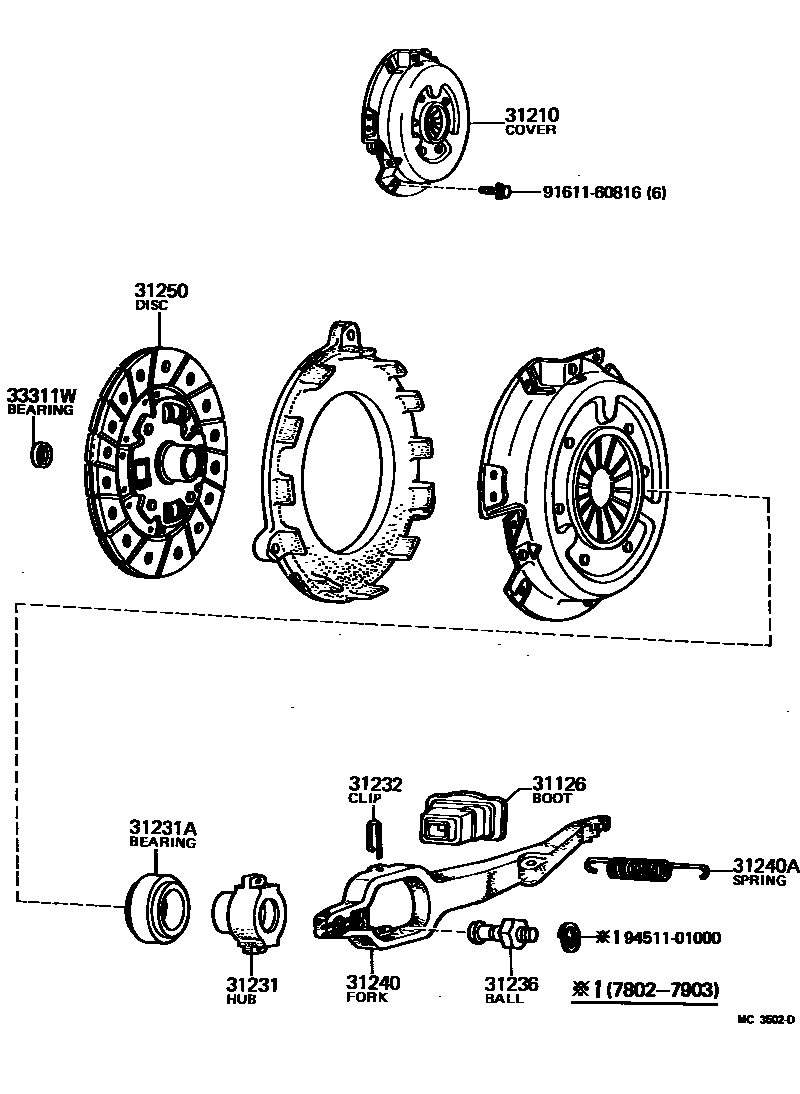

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-10030i197802-197903

main31126-12020i197802-198409

main31126-12040i197903-198409

31210COVER ASSY, CLUTCH

main31210-12041i197802-197908

main31210-12042i197908-198008

main31210-12043i198008-198201

main31210-12052i198108-198201

31231HUB, CLUTCH RELEASE BEARING

main31231-12031i197802-197903

main31231-12032i197903-198010

main31231-12033i198010-198409

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-33002i197808-198204

main90363-33004i198204-198409

main90363-33080i197802-197808

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-12010×2i197802-198409

31236BALL, RELEASE FORK

main31236-30030i197802-198409

31240FORK ASSY, CLUTCH RELEASE

main31204-10040i197802-198010

main31204-12010i197802-198010

main31204-12011i198010-198409

main31204-12031i198010-198409

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-14139i197802-198409

31250DISC ASSY, CLUTCH

main31250-12021i197802-198012

main31250-12070i198012-198409

main31250-12071i198409-198409

33311WBEARING (FOR INPUT SHAFT)

main90363-12003i198010-198108

main97123-06001i197802-198010

6001 ZZ C3

9161160816

main91611-60816

9451101000

main94511-01000

12 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota STARLET

This section contains 12 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota STARLET. Key components include: BOOT, CLUTCH RELEASE FORK, COVER ASSY, CLUTCH, HUB, CLUTCH RELEASE BEARING, BEARING, BALL(FOR CLUTCH RELEASE HUB), CLIP OR SPRING, RELEASE BEARING HUB.
