Toyota STARLET — ARMREST & VISOR

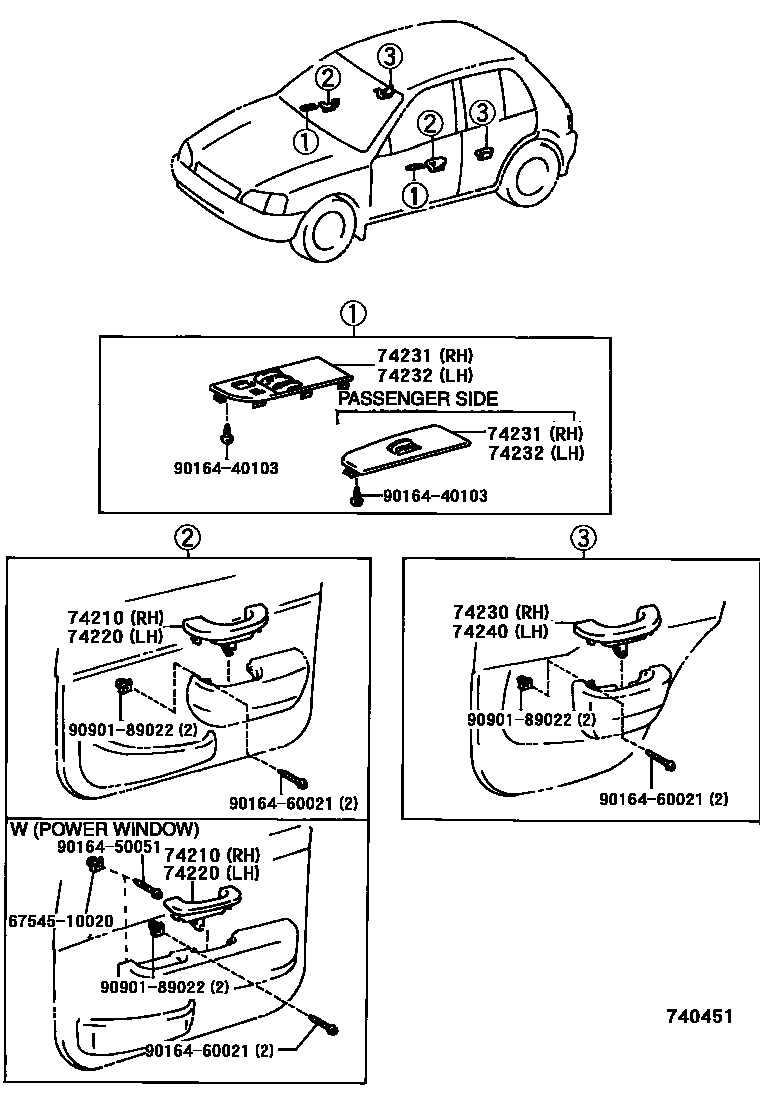

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-10070-B0i199712-199907
W(POWER WINDOW = DOWN AUTO),BLUISH GRAY,TRIM1#; W(POWER WINDOW = UP DOWN AUTO),BLUISH GRAY,TRIM1#
main74210-10070-B1i199601-199712
W(POWER WINDOW = DOWN AUTO),LT.BLUISH GRAY,TRIM10; W(POWER WINDOW = UP DOWN AUTO),LT.BLUISH GRAY,TRIM10
main74250-10020-B0i199712-199907
BLUISH GRAY,TRIM1#
main74250-10020-B1i199601-199712
LT.BLUISH GRAY,TRIM10
74220ARMREST ASSY, FRONT, LH
main74210-10070-B0i199712-199907
W(POWER WINDOW = DOWN AUTO),BLUISH GRAY,TRIM1#; W(POWER WINDOW = UP DOWN AUTO),BLUISH GRAY,TRIM1#
main74210-10070-B1i199712-199907
W(POWER WINDOW = DOWN AUTO),LT.BLUISH GRAY,TRIM1#; W(POWER WINDOW = UP DOWN AUTO),LT.BLUISH GRAY,TRIM1#
main74260-10010-B0i199712-199907
BLUISH GRAY,TRIM1#
main74260-10010-B1i199601-199712
LT.BLUISH GRAY,TRIM10
74230ARMREST ASSY, REAR, RH
main74250-10020-B0i199712-199907
BLUISH GRAY,TRIM1#
main74250-10020-B1i199712-199907
LT.BLUISH GRAY,TRIM1#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-10060-B0i199712-199907
LT.BLUISH GRAY,TRIM1#
main74231-10060-B1i199712-199907
BLUISH GRAY,TRIM1#
main74231-10070-B0i199712-199907
BLUISH GRAY,TRIM1#
main74231-10070-B1i199601-199712
LT.BLUISH GRAY,TRIM10
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-10040-B0i199712-199907
LT.BLUISH GRAY,TRIM1#
main74232-10040-B1i199712-199907
BLUISH GRAY,TRIM1#
main74232-20270-B1i199712-199907
BLUISH GRAY,TRIM1#
main74232-20270-B2i199601-199712
LT.BLUISH GRAY,TRIM10
74240ARMREST ASSY, REAR, LH
main74260-10010-B0i199712-199907
BLUISH GRAY,TRIM1#
main74260-10010-B1i199712-199907
LT.BLUISH GRAY,TRIM1#
6754510020
main67545-10020
9016440103
main90164-40103
9016450051
main90164-50051
9016460021
main90164-60021
9090189022
main90901-89022

11 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota STARLET

This section contains 26 genuine Toyota parts for the ARMREST & VISOR system of the Toyota STARLET. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
