Toyota STARLET — ARMREST & VISOR

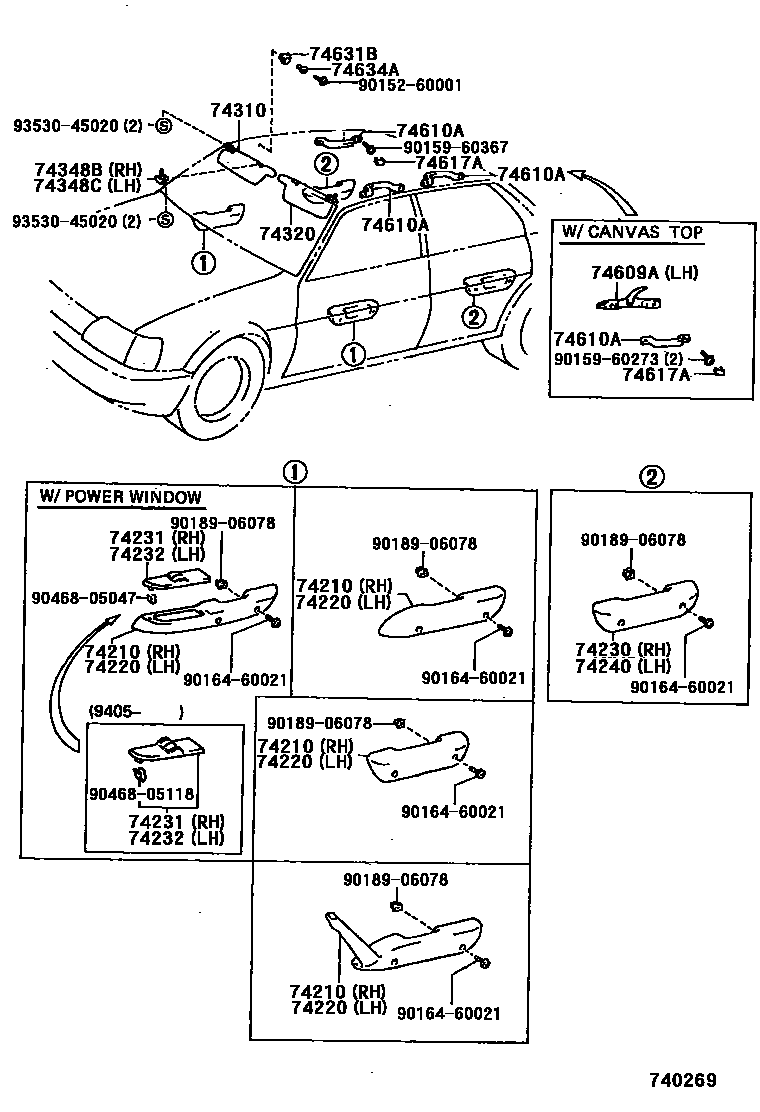

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-10030-03i199205-199210
W(POWER WINDOW & FABRIC FULL DOOR TRIM),GRAY,TRIM1#; W(POWER WINDOW),GRAY,TRIM1#
main74210-10030-04i198912-199201
W(POWER WINDOW),BLUE,TRIM8#
main74210-10030-E0i199205-199210
W(POWER WINDOW & FABRIC FULL DOOR TRIM),OAK,TRIM4#; W(POWER WINDOW),OAK,TRIM4#
main74210-10031-E0i199210-199405
W(POWER WINDOW),OAK,TRIM4#
main74210-10031-P0i199210
W(POWER WINDOW),GRAY,TRIM1#
main74210-10050-03i199201
W(FABRIC FULL DOOR TRIM),GRAY,TRIM1#
main74210-10050-04i198912-199201
BLUE,TRIM8#; W(FABRIC FULL DOOR TRIM),BLUE,TRIM8#
main74210-10050-E0i199201-199212
W(FABRIC FULL DOOR TRIM),OAK,TRIM4#
main74210-10060i199601
main74210-10060-03i199201-199212
GRAY,TRIM1#
main74210-10060-04i198912-199201
BLUE,TRIM8#
main74210-10060-E0i199201-199212
OAK,TRIM4#
main74250-10010-03i198912-199201
GRAY,TRIM1#
74220ARMREST ASSY, FRONT, LH
main74210-10060i199601
main74210-10060-03i199201-199301
GRAY,TRIM1#
main74210-10060-04i198912-199201
BLUE,TRIM8#
main74210-10060-E0i199212-199405
OAK,TRIM4#
main74220-10020-03i199205-199210
W(POWER WINDOW & FABRIC FULL DOOR TRIM),GRAY,TRIM1#; W(POWER WINDOW),GRAY,TRIM1#
main74220-10020-04i198912-199201
W(POWER WINDOW),BLUE,TRIM8#
main74220-10020-E0i199205-199210
W(POWER WINDOW & FABRIC FULL DOOR TRIM),OAK,TRIM4#; W(POWER WINDOW),OAK,TRIM4#
main74220-10021-E0i199210-199405
W(POWER WINDOW),OAK,TRIM4#
main74220-10021-P0i199210-199601
W(POWER WINDOW & FABRIC FULL DOOR TRIM),GRAY,TRIM1#
main74220-10040-03i199201
W(FABRIC FULL DOOR TRIM),GRAY,TRIM1#
main74220-10040-04i198912-199201
BLUE,TRIM8#; W(FABRIC FULL DOOR TRIM),BLUE,TRIM8#
main74220-10040-E0i199201-199212
W(FABRIC FULL DOOR TRIM),OAK,TRIM4#
main74250-10010-03i198912-199201
GRAY,TRIM1#
74230ARMREST ASSY, REAR, RH
main74210-10060i199601
main74210-10060-03i199201-199301
GRAY,TRIM1#
main74210-10060-04i198912-199201
BLUE,TRIM8#
main74210-10060-E0i199212-199405
OAK,TRIM4#
main74250-10010-03i198912-199201
GRAY,TRIM1#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-10010i198912-199008
W(FRONT & REAR POWER WINDOW)
main74231-10010-01i199201-199208
BLACK,TRIM1#,4#; CKD SPEC & W(POWER WINDOW),BLACK,TRIM1#; CKD SPEC & W(POWER WINDOW),BLACK,TRIM1#,4#
main74231-10010-22i199208-199210
BLACK,TRIM1#,4#; CKD SPEC & W(POWER WINDOW),BLACK,TRIM1#; CKD SPEC & W(POWER WINDOW),BLACK,TRIM1#,4#
main74231-10011-22i199210-199405
BLACK,TRIM1#,4#; CKD SPEC & W(POWER WINDOW),BLACK,TRIM1#
main74231-10020i198912-199008
W(POWER WINDOW)
main74231-10020-01i199201-199208
BLACK,TRIM1#; BLACK,TRIM1#,4#; W(POWER WINDOW),BLACK,TRIM1#; W(POWER WINDOW),BLACK,TRIM1#,4#
main74231-10020-22i199208-199210
BLACK,TRIM1#; BLACK,TRIM1#,4#; W(POWER WINDOW),BLACK,TRIM1#; W(POWER WINDOW),BLACK,TRIM1#,4#
main74231-10021-22i199212-199405
W(POWER WINDOW & FULL TRIM BOARD),BLACK,TRIM1#; W(POWER WINDOW),BLACK,TRIM1#
main74231-10030i198912-199008
main74231-10030-01i199201-199208
BLACK,TRIM1#,4#
main74231-10030-C0i199208-199210
BLACK,TRIM1#,4#
main74231-10031-C0i199210-199306
BLACK,TRIM1#
main74231-10032-C0i199306-199601
BLACK,TRIM1#
main74231-10040-C0i199405-199601
BLACK,TRIM1#
main74231-10050-C0i199405
W(POWER WINDOW & FULL TRIM BOARD),BLACK,TRIM1#; W(POWER WINDOW),BLACK,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-10010i198912-199008
main74232-10010-01i199008-199201
BLACK,TRIM1#,8#
main74232-10010-C0i199208-199210
BLACK,TRIM1#,4#
main74232-10011-C0i199210-199405
BLACK,TRIM1#
main74232-10020i198912-199008
main74232-10020-01i199201-199208
BLACK,TRIM1#; BLACK,TRIM1#,4#
main74232-10020-22i199208-199210
BLACK,TRIM1#; BLACK,TRIM1#,4#
main74232-10021-22i199405
BLACK,TRIM1#
main74232-10030-C0i199405-199601
BLACK,TRIM1#
74240ARMREST ASSY, REAR, LH
main74210-10060i199601
main74210-10060-03i199301-199405
GRAY,TRIM1#
main74210-10060-04i198912-199201
BLUE,TRIM8#
main74210-10060-E0i199201-199212
OAK,TRIM4#
main74250-10010-03i198912-199201
GRAY,TRIM1#
74310VISOR ASSY, RH
main74310-10370-03i199204-199405
GRAY,TRIM1#
main74310-10380-03i199212-199405
GRAY,TRIM1#
main74310-10400-A0i199201-199405
W(*80),IVORY,TRIM4#
main74310-10400-B0i199201-199405
W(*80),GRAY,TRIM1#
main74310-10410-03i199201-199405
W(VANITY MIRROR),GRAY,TRIM1#
main74310-10410-A0i199201-199212
W(VANITY MIRROR),IVORY,TRIM4#
main74310-10420-03i199201-199405
GRAY,TRIM1#
main74310-10420-A0i199201-199405
IVORY,TRIM4#
main74310-10470-03i198912-199201
GRAY,TRIM1#; GRAY,TRIM1#,8#
main74310-10470-A0i199201-199212
IVORY,TRIM4#
main74310-10480-B0i199201-199212
GRAY,TRIM1#
main74310-10490-B0i199212-199405
W(*80),GRAY,TRIM1#
main74310-10500-B0i199201-199212
W(*80),GRAY,TRIM1#
main74310-10510-B0i199204-199405
W(*80),GRAY,TRIM1#
main74310-10520-B2i199405-199506
GRAY,TRIM1#
main74310-10521-B2i199506-199601
GRAY,TRIM1#
main74310-10530-B1i199405-199506
GRAY,TRIM1#
main74310-10531-B1i199506-199601
GRAY,TRIM1#
main74310-10560-B1i199405-199506
W(*80),GRAY,TRIM1#
main74310-10561-B1i199506-199601
W(*80),GRAY,TRIM1#
main74310-10570-B1i199405-199506
W(*80),GRAY,TRIM1#
main74310-10571-B1i199506-199601
W(*80),GRAY,TRIM1#
main74310-10610-B1i199405
GRAY,TRIM1#
main74310-10620-B1i199405-199601
W(VANITY MIRROR),GRAY,TRIM1#
74320VISOR ASSY, LH
main74320-10190-03i198912-199201
GRAY,TRIM1#; GRAY,TRIM1#,8#
main74320-10190-A0i199201-199212
IVORY,TRIM4#
main74320-10200-03i198912-199201
GRAY,TRIM1#,8#; W(VANITY MIRROR),GRAY,TRIM1#,8#
main74320-10200-A0i199201-199212
W(VANITY MIRROR),IVORY,TRIM4#
main74320-10260-B1i199405-199803
GRAY,TRIM1#
main74320-10300-B1i199405-199803
W(VANITY MIRROR),GRAY,TRIM1#
74348BHOLDER, VISOR, RH
main74348-12010-33i198912-199201
GRAY,TRIM1#; GRAY,TRIM1#,8#
main74348-12010-A2i199201-199212
IVORY,TRIM4#
74348CHOLDER, VISOR, LH
main74348-12010-33i198912-199201
GRAY,TRIM1#; GRAY,TRIM1#,8#
main74348-12010-A2i199201-199212
IVORY,TRIM4#
74609ARETAINER SUB-ASSY, ASSIST GRIP, LH
main74609-10010i199204-199405
74610AGRIP SUB-ASSY, ASSIST
main74610-12020-03×2i198912-199201
W(MOON ROOF),LIGHT GRAY,TRIM1#,8#,REAR
main74610-12020-A0×2i199201-199212
W(MOON ROOF),IVORY,TRIM4#,REAR
main74610-16010-03i198912-199201
INDONESIA SPEC,LIGHT GRAY,TRIM1#,8#; LIGHT GRAY,TRIM1#; W(MOON ROOF),LIGHT GRAY,TRIM1#,8#,FRONT
main74610-16010-A0i199201-199212
INDONESIA SPEC,IVORY,TRIM4#; IVORY,TRIM4#; W(MOON ROOF),IVORY,TRIM4#,FRONT
74617APLUG, ASSIST GRIP
main74617-16010-53×6i199201-199405
INDONESIA SPEC OR W(MOON ROOF),SHADOW GRAY,TRIM1#; INDONESIA SPEC,SHADOW GRAY,TRIM1#; W(MOON ROOF),SHADOW GRAY,TRIM1#
main74617-16010-A0×2i199212-199405
IVORY,TRIM4#
74631BHOOK, COAT
main74631-12060-33i198912-199201
LIGHT GRAY,TRIM1#,8#
main74631-12060-A0i199201-199212
IVORY,TRIM4#
main74631-12060-B2i199201
LIGHT GRAY,TRIM1#
main74631-20040-13i199201
INDONESIA SPEC,GRAY,TRIM1#
main74631-20040-A0i199201-199212
INDONESIA SPEC,IVORY,TRIM4#
74634ACOLLAR, COAT HOOK
main74634-12010i198912
9015260001
main90152-60001
9015960273
main90159-60273
9015960367
main90159-60367
9016460021
main90164-60021
9018906078
main90189-06078
9046805047
main90468-05047
9046805118
main90468-05118
9353045020
main93530-45020

23 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota STARLET

This section contains 23 genuine Toyota parts for the ARMREST & VISOR system of the Toyota STARLET. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
