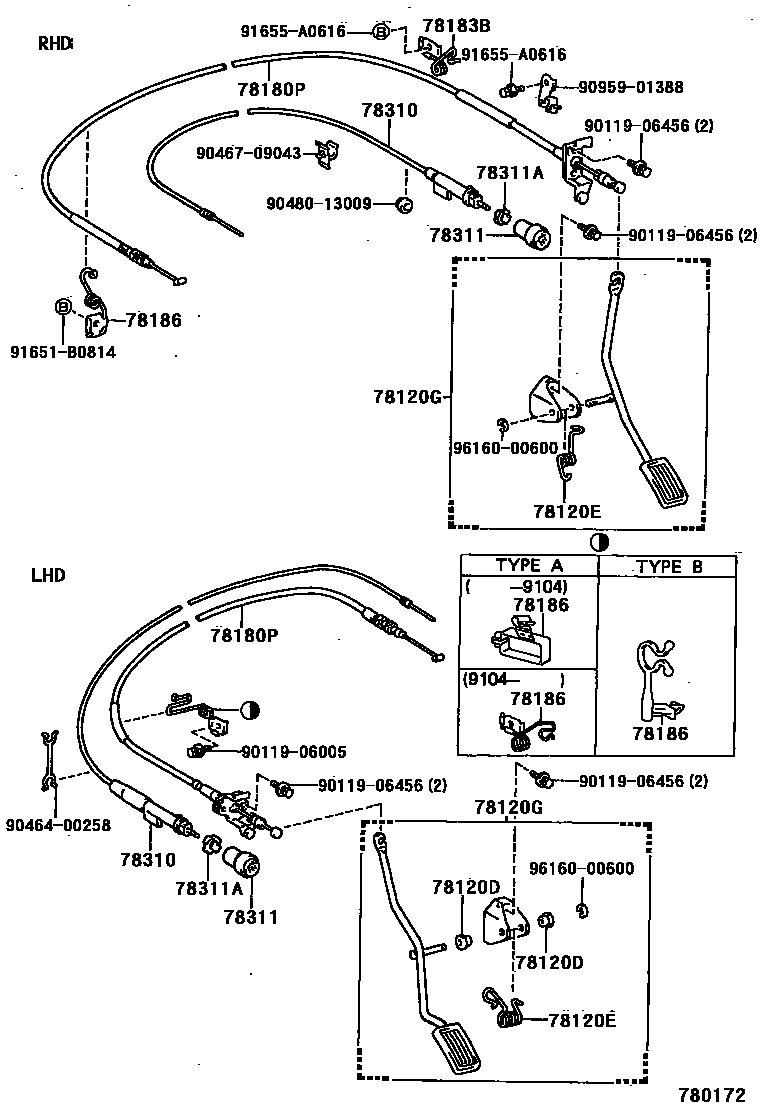

Toyota STARLET — ACCELERATOR LINK
78120DGROMMET (FOR ACCELERATOR LINK ROD)
78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
SINGAPORE SPEC
NEW ZEALAND SPEC
W(PRE AIR CLEANER)
78183BCLAMP, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
TYPE A
W(PRE AIR CLEANER)
TYPE B
78310CABLE ASSY, CHOKE
SINGAPORE SPEC
78311KNOB, CHOKE CONTROL CABLE
SINGAPORE SPEC
78311ANUT, CHOKE SHAFT SET
SINGAPORE SPEC
9011906005
main90119-06005
9011906456
main90119-06456
9046400258
main90464-00258
9046709043
main90467-09043
9048013009
main90480-13009
9095901388
main90959-01388
91651B0814
main91651-B0814
91655A0616
main91655-A0616
9616000600
main96160-00600
18 parts on this diagram · 2 diagrams in section
