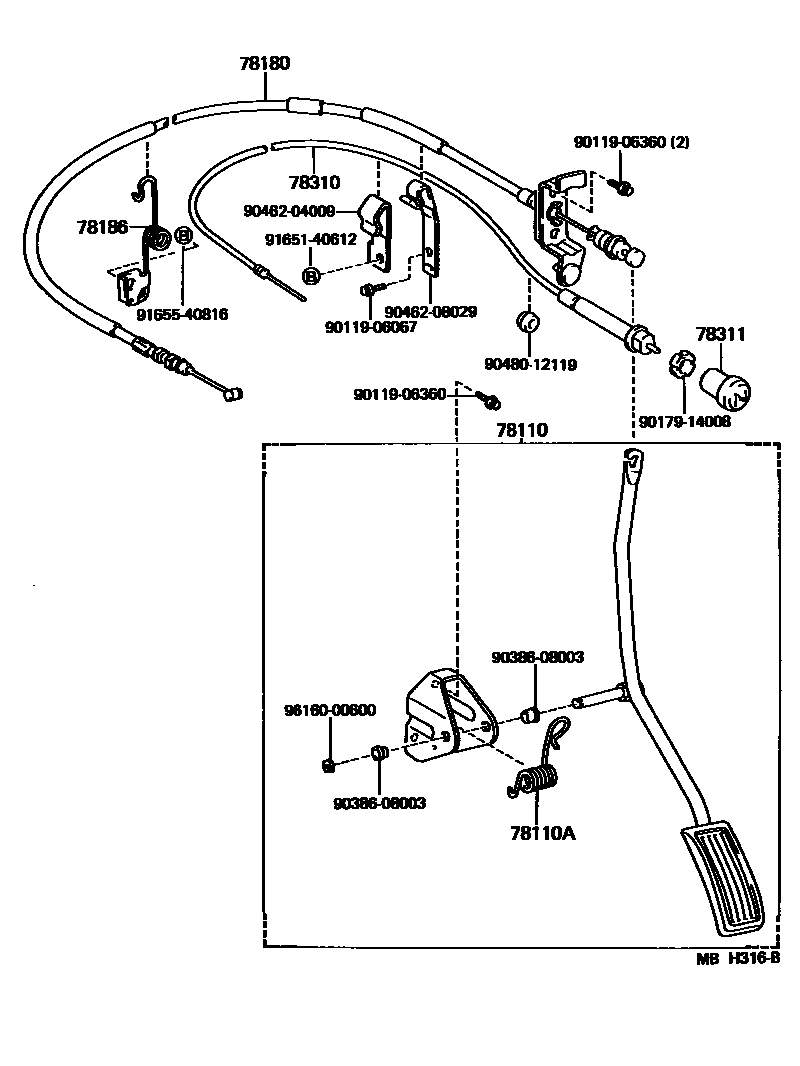

Toyota STARLET — ACCELERATOR LINK

0001 1 0002 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-10010iEP70,71..RHD198410-198612

main78120-10020iEP7#..LHD198410-198912

main78120-10030iEP70,71..RHD..MTM198612-198912

main78120-10040iEP71..RHD..3FC198612-198912

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18053iEP7#..LHD198410-198912

main90508-18057iEP70,71..RHD198410-198612

main90508-21004iEP70,71..RHD198612-198912

78180WIRE ASSY, ACCELERATOR

main78180-10250iEP7#..LHD198410-198912

main78180-10260iEP70,71..RHD198410-198912

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-10050iEP70,71..RHD198410-198912

main78186-10060iEP7#..LHD198410-198912

main78186-10070iEP7#..LHD198410-198504

W/CYCLONE TYPE

78310CABLE ASSY, CHOKE

main84506-10010iEP7#..LHD198410-198512

main84506-10011iEP7#..LHD198512-198912

main84506-10020iEP7#..RHD198410-198512

main84506-10021iEP70,71..RHD198512-198912

78311KNOB, CHOKE CONTROL CABLE

main78311-10040iEP70,71198410-198601

main78311-10041iEP7#198601-198912

9011906067

main90119-06067

9011906360

main90119-06360

9017914008

main90179-14008

9038608003

main90386-08003

9046204009

main90462-04009

9046208029

main90462-08029

9048012119

main90480-12119

9165140612

main91651-40612

9165540816

main91655-40816

9616000600

main96160-00600

16 parts on this diagram · 2 diagrams in section
