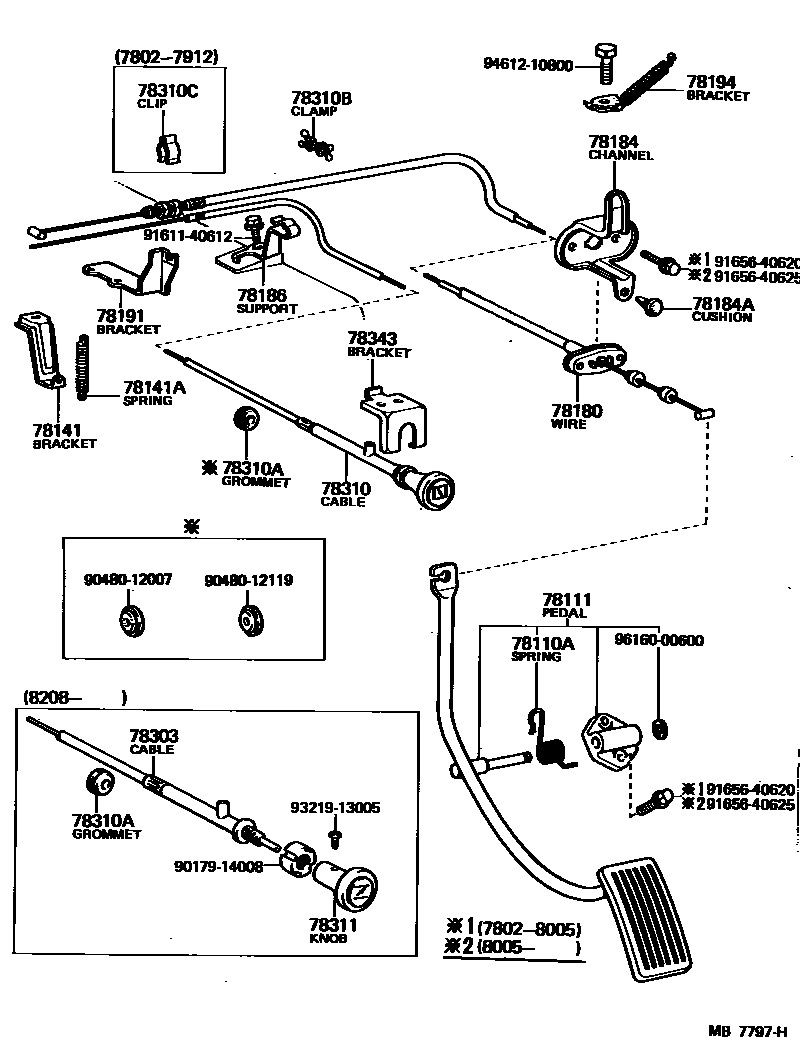

Toyota STARLET — ACCELERATOR LINK
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78141BRACKET, ACCELERATOR WIRE RETURN SPRING
78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
78180WIRE ASSY, ACCELERATOR
78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78191BRACKET, ACCELERATOR WIRE SUPPORT
78194BRACKET, ACCELERATOR WIRE SUPPORT, NO.2
78303CABLE SUB-ASSY, CHOKE CONTROL
78310CABLE ASSY, CHOKE
WEST GERMANY SPEC
WEST GERMANY SPEC
W/WARNING
W/WARNING
WEST GERMANY SPEC,W/WARNING
WEST GERMANY SPEC
78310AGROMMET, CHOKE CABLE
SLIT TYPE
OD=18
OD=22
78310BCLAMP, CHOKE CABLE
78310CCLIP (FOR CHOKE CABLE)
78311KNOB, CHOKE CONTROL CABLE
WEST GERMANY SPEC
78343BRACKET, CHOKE ROD
9017914008
main90179-14008
9048012007
main90480-12007
9048012119
main90480-12119
9161140612
main91611-40612
9165640620
main91656-40620
9165640625
main91656-40625
9321913005
main93219-13005
9461210800
main94612-10800
9616000600
main96160-00600
26 parts on this diagram · 3 diagrams in section
ACCELERATOR LINK for Toyota STARLET
This section contains 37 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota STARLET. Key components include: LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, STOPPER (FOR ACCELERATOR PEDAL).
