Toyota STARLET — ABS & VSC

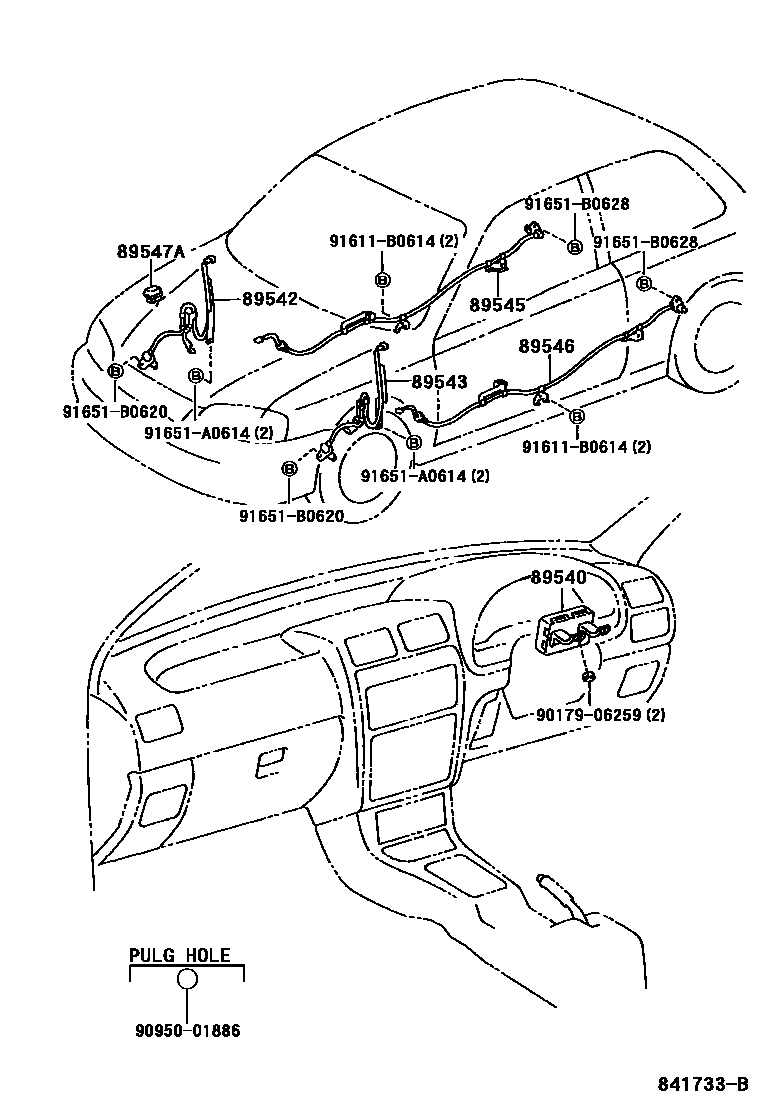

Parts diagram

89540COMPUTER ASSY, SKID CONTROL

main89540-10070i199601-199712

main89540-16120i199712

89542SENSOR, SPEED, FRONT RH

main89542-10020i199601

89543SENSOR, SPEED, FRONT LH

main89543-10020i199601

89545SENSOR, SPEED, REAR RH

main89545-10020i199601

89546SENSOR, SPEED, REAR LH

main89546-10020i199601

89547ARELAY, SKID CONTROL W/BRACKET

main88263-16010i199601

9017906259

main90179-06259

9095001886

main90950-01886

91611B0614

main91611-B0614

91651A0614

main91651-A0614

91651B0620

main91651-B0620

91651B0628

main91651-B0628

12 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota STARLET

This section contains 12 genuine Toyota parts for the ABS & VSC system of the Toyota STARLET. Key components include: COMPUTER ASSY, SKID CONTROL, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SPEED, REAR RH, SENSOR, SPEED, REAR LH.
