Toyota STARLET — WINDSHIELD WASHER

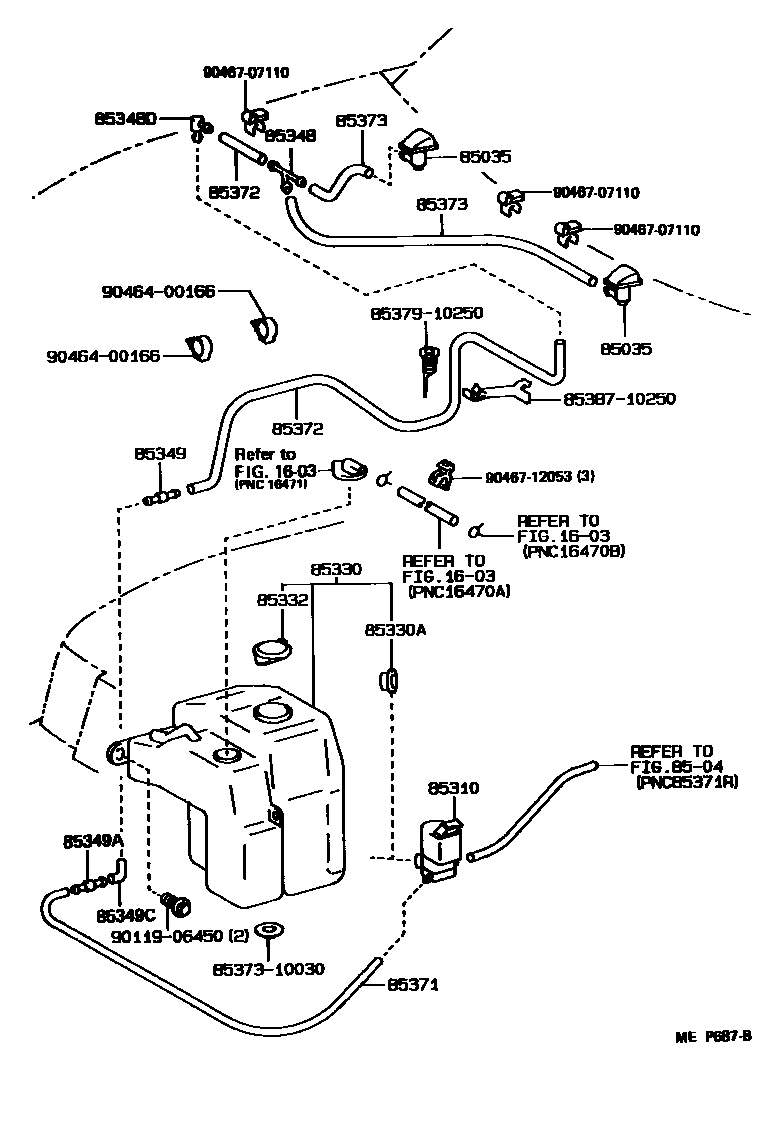

Parts diagram
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
85035NOZZLE SUB-ASSY, WASHER
main85381-10010×2i198912-199201
main85381-10030×2i198912-199201
main85381-10060×2i198912-199201
W(*66)
main85381-12050×2i199201-199601
main85381-30020×2i199405-199601
W(*66) OR W(PS); W(POWER STEERING)
8504REAR WASHER
→ Go to FIG 85-04
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-20170i198912-199201
COLD SPEC & W(*66 & *RW) OR W(*66 & *RW); W(*66 & REAR WIPER)
main85310-20200i198912-199405
main85310-20210i198912-199201
W(*66)
main85330-10220i198912-199209
W(REAR WIPER)
main85330-10221i199405-199601
main85330-12280i199209-199212
W(*66 & *RW) OR COLD SPEC & W(*66 & *RW)
85330JAR ASSY, WINDSHIELD WASHER
main85315-10160i198912-199212
main85315-10170i198912-199212
W(REAR WIPER)
main85315-10190i198912-199201
COLD SPEC & W(*66) OR COLD SPEC & W(*66 & *RW) OR W(*66) OR W(*66 *RW)
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i198912-199601
85332CAP, WINDSHIELD WASHER JAR
main85316-10160i199007-199201
COLD SPEC; COLD SPEC & W(REAR WIPER---INTERMITTENT)
main85316-10190i198912-199310
W(*66)
main85316-16070i199310-199405
W(*66)
main85316-34050i199310-199601
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12250i198912-199001
main85348-14390i199004-199201
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85376-10250i199001-199201
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89122i199001-199201
main85375-10260i199405-199601
(POWER STEERING); W(*66) OR W(PS)
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
main85349-89122i198912-199601
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
main85355-14481i199201-199601
main85355-20070i198912-199201
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90446-06013i199405-199601
L=1000,(POWER STEERING); L=1000,W(*66) OR W(PS)
main90446-07001i199212-199405
L=1800; L=1800,W(REAR WIPER)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90446-06013i199001-199201
L=1000
main90446-07001i198912-199405
L=1800,W(*66)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080i199007-199201
L=1450
main90099-33815i199201-199601
L=1450(*H,L=50)
main90446-06013i199001-199201
L=1000
8537310030HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-10030
8537910250JOINT
main85379-10250
8538710250CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-10250
9011906450
main90119-06450
9046400166
main90464-00166
9046707110
main90467-07110
9046712053
main90467-12053
