Toyota STARLET — WINDSHIELD WASHER

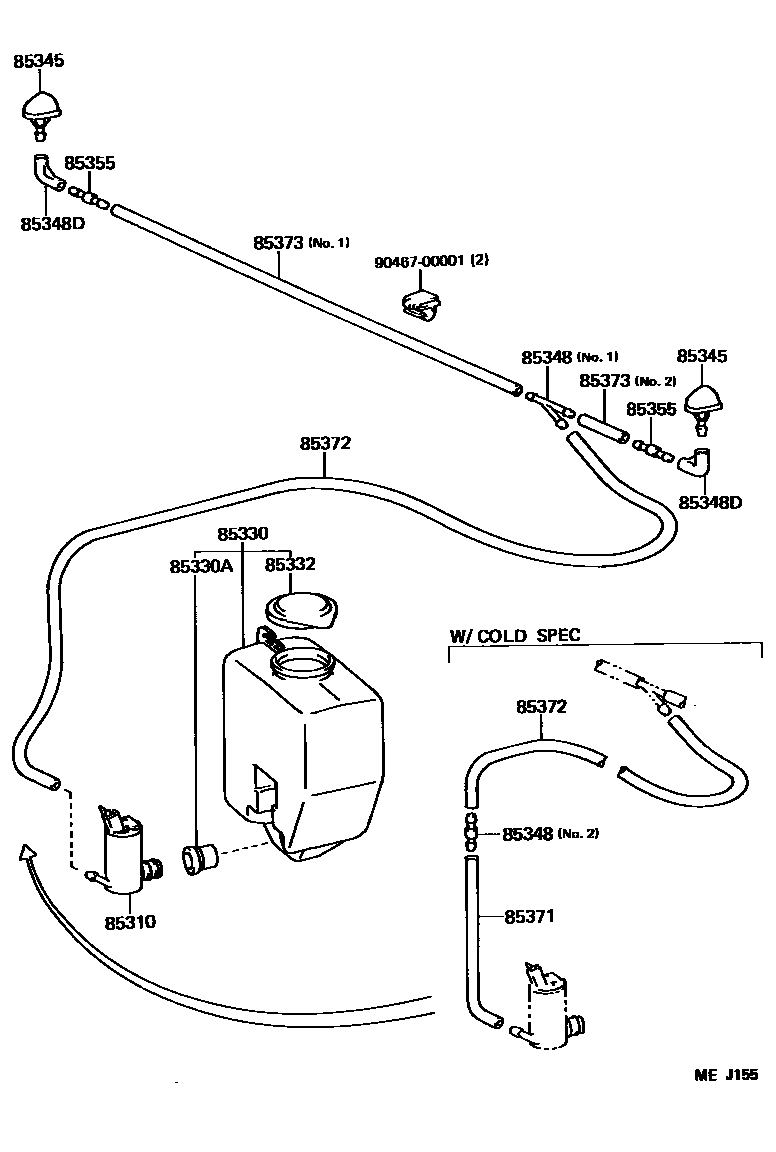

Parts diagram
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-22080i198410-198912
85330JAR ASSY, WINDSHIELD WASHER
main85330-10240i198410-198912
W/O RR WIPER
main85330-10260i198612-198912
W/O RR WIPER(COLD SPEC)
main85331-10280i198612-198912
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i198612-198912
main90099-32103i198410-198912
85332CAP, WINDSHIELD WASHER JAR
main85332-12320i198410-198912
85345NOZZLE, WINDSHIELD WASHER
main85035-10170×2i198410-198601
main85035-10190×2i198601-198912
main85035-10200×2i198601-198912
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12250i198410-198912
NO.1
main85349-89122i198703-198912
W/O RR WIPER(COLD SPEC),NO.2
main85355-87201i198612-198703
W/O RR WIPER (COLD SPEC),NO.2
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-14481×2i198705-198912
main85355-20070×2i198410-198705
85355VALVE, WINDSHIELD WASHER HOSE
main85031-12250i198504-198504
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33382i198612-198912
main90446-06013i198912-198912
L=1000(*H,L=160),W/O RR WIPER(COLD SPEC)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33299i198612-198912
L=1000
main90446-06013i198410-198912
L=1000(*H,L=740),W/RR WIPER; L=1450(*H,L=870)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90446-06013i198410-198504
L=1000(*H,L=430),NO.1
9046700001
main90467-00001

12 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota STARLET

This section contains 17 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota STARLET. Key components include: VALVE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
