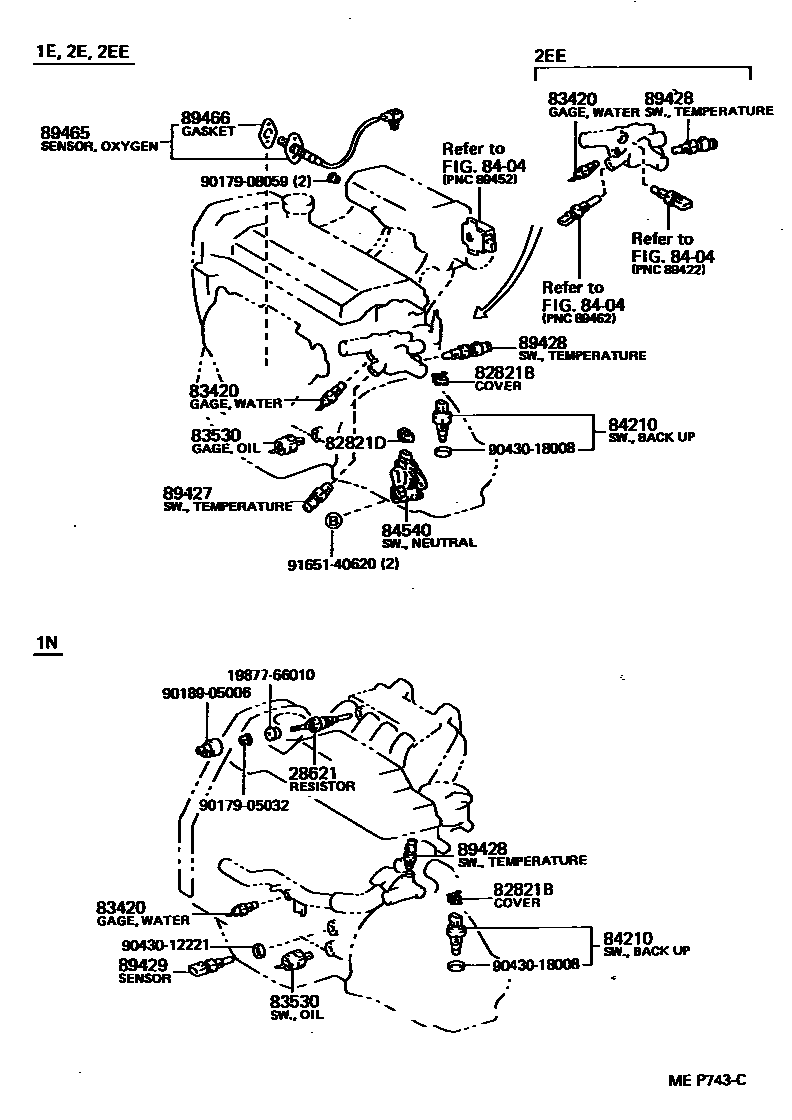

Toyota STARLET — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

28621RESISTOR, GLOW PLUG

main28621-55010i1N..NP80198912-199601

82821BCOVER, CONNECTOR

main82821-12250iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI199106-199203

82821DCOVER, CONNECTOR

main82821-20170iEP81..3FC198912-199201

main82821-35010iEP81..3FC199201-199403

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEP80,NP80;EP81..LHD;EP81..RHD..EFI199106-199601

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iNP80198912-199601

sub83530-28030

main83530-30080iEP8#198912-199106

sub83530-60040

main83530-30090iEP81199212-199601

sub83530-60020

8404

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEP8#,NP80..MTM198912-199106

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16030iEP81..3FC198912-199201

main84540-16040iEP81..3FC199201-199601

89427SWITCH, TEMPERATURE DETECT

main89427-12090iEP81..CBR198912-199212

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEP8#,NP80199201-199601

AISIN

main89428-20060iEP8#,NP80198912-199201

89429SENSOR, OIL TEMPERATURE

main89422-20010iNP80198912-199601

89465SENSOR, OXYGEN

main89465-19405iEP81..EFI198912-199106

main89465-19485iEP81..EFI199106-199601

89466GASKET, OXYGEN SENSOR

main89466-20020iEP81..EFI198912-199601

1987766010

main19877-66010

9017905032

main90179-05032

9017908059

main90179-08059

9018905006

main90189-05006

9043012221

main90430-12221

9043018008

main90430-18008

9165140620

main91651-40620

20 parts on this diagram · 10 diagrams in section
