Toyota STARLET — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

8202

82600FFUSE, FUSE BLOCK

main90982-07011×33iEP7#,NP70198410-198912

30A,GREEN,30A

main90982-09002×33iEP7#,NP70198410-198912

10A,10A

main90982-09003×33iEP7#,NP70198410-198912

15A,15A

main90982-09004×33iEP7#,NP70198410-198912

20A,YELLOW,20A

main90982-09005×33iEP7#,NP70198410-198912

7.5A,7.5A

82643RELAY, DIM-DIP LAMP

main82643-12010iEP70..RHD..GL198801-198912

ENGLAND SPEC NO.1

main82643-32010iEP70..RHD..GL198612-198801

ENGLAND SPEC

main90987-02006iEP70..RHD..GL198801-198912

ENGLAND SPEC NO.3

main90987-04002iEP70..RHD..GL198801-198912

ENGLAND SPEC NO.2

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-10020iEP7#,NP70198410-198802

NO.1

main82660-10021iEP7#,NP70198802-198912

NO.1

main82660-10090iEP70..RHD..GL198801-198912

ENGLAND SPEC NO.2

82661COVER, RELAY BLOCK, NO.1

main82661-10010iEP7#,NP70198410-198912

main82661-10020iEP71..S..EUG198612-198912

*FRG

82661ACOVER, RELAY BLOCK, NO.2

main82661-10040iEP71..S..EUG198612-198912

*FRG

82690RESISTOR ASSY, DIM DIP LAMP

main82690-10010iEP70..RHD..GL198612-198801

ENGLAND SPEC

83391SWITCH, VACUUM

main83391-10050iEP71..SDZ198707-198801

main83391-12210iEP71..SDZ198801-198912

83399BRACKET, VACUUM SWITCH

main83399-10020iEP71..SDZ198707-198912

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEP7#,NP70198410-198912

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12040iEP7#198410-198601

sub83530-14040

main83530-14030iNP70198612-198912

sub83530-28030

main83530-30080iEP7#198601-198612

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iEP7#,NP70..MTM198410-198912

84540SWITCH ASSY, NEUTRAL START

main84540-12160iEP71..3FC198410-198912

85915RELAY, MAIN

main90987-02006iEP7#,NP70198410-198912

85916RELAY, LIGHT CONTROL

main90987-01003iEP7#,NP70198410-198912

TAIL

main90987-02006iEP7#,NP70198410-198912

HEAD

85926RELAY, HEADLAMP DIMMER

main85926-30020iEP71..S..EUG198612-198912

*FRG

85927RELAY, COOLING FAN

main90987-03001iEP7#,NP70198410-198912

85931RELAY, EMISSION CONTROL

main85931-10010iEP71..SDZ198707-198912

85999ABRACKET, RELAY, NO.2

main85999-10050iEP70..RHD..GL198801-198912

ENGLAND SPEC

89427SWITCH, TEMPERATURE DETECT

main89427-12070iEP71..SDZ198707-198912

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10100iEP7#198410-198912

main89428-15011iNP70198612-198804

sub89428-32010

main89428-20060iNP70198804-198912

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-16010iEP71..FRG,SDZ198605-198912

sub89453-12040

89465SENSOR, OXYGEN

main89465-19195iEP71..SDZ198707-198810

main89465-19275iEP71..SDZ198810-198912

89466GASKET, OXYGEN SENSOR

main89466-20020iEP71..SDZ198811-198912

main89466-30020iEP71..SDZ198707-198811

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8599910030BRACKET, COMBINATION RELAY

main85999-10030

9011906110

main90119-06110

9017908059

main90179-08059

9043018007

main90430-18007

9165140616

main91651-40616

9165140620

main91651-40620

91651A0612

main91651-A0612

91651F0616

main91651-F0616

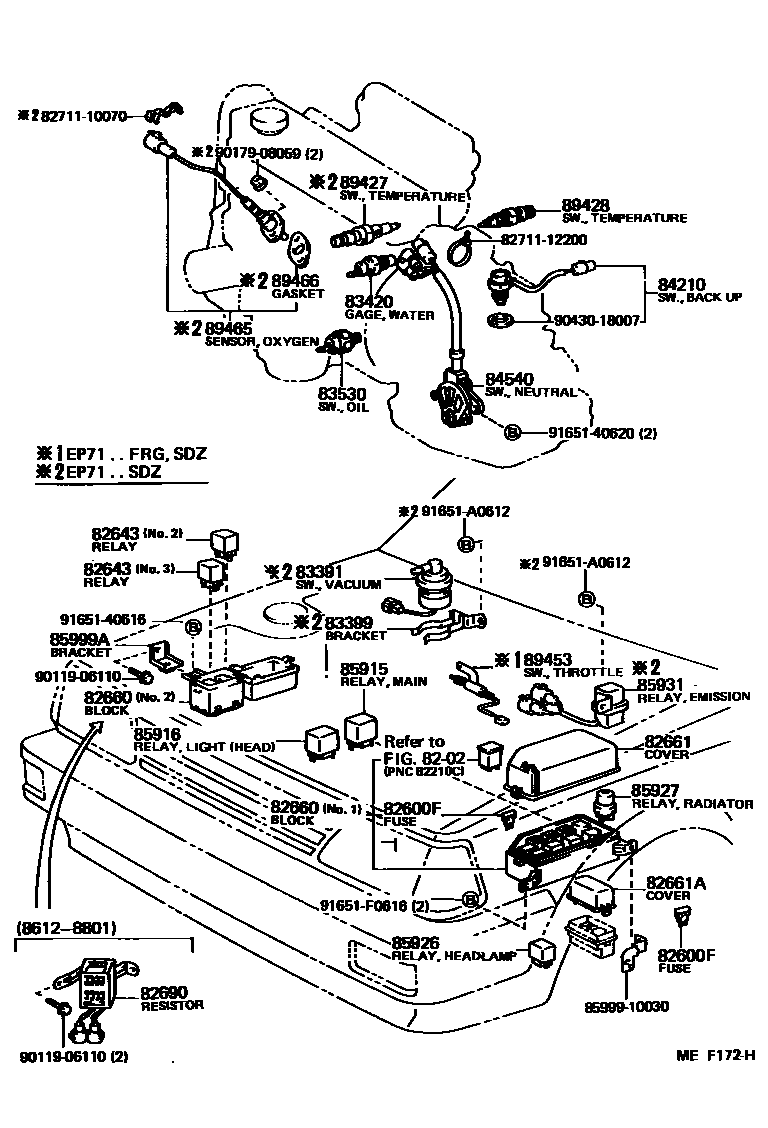

34 parts on this diagram · 7 diagrams in section
