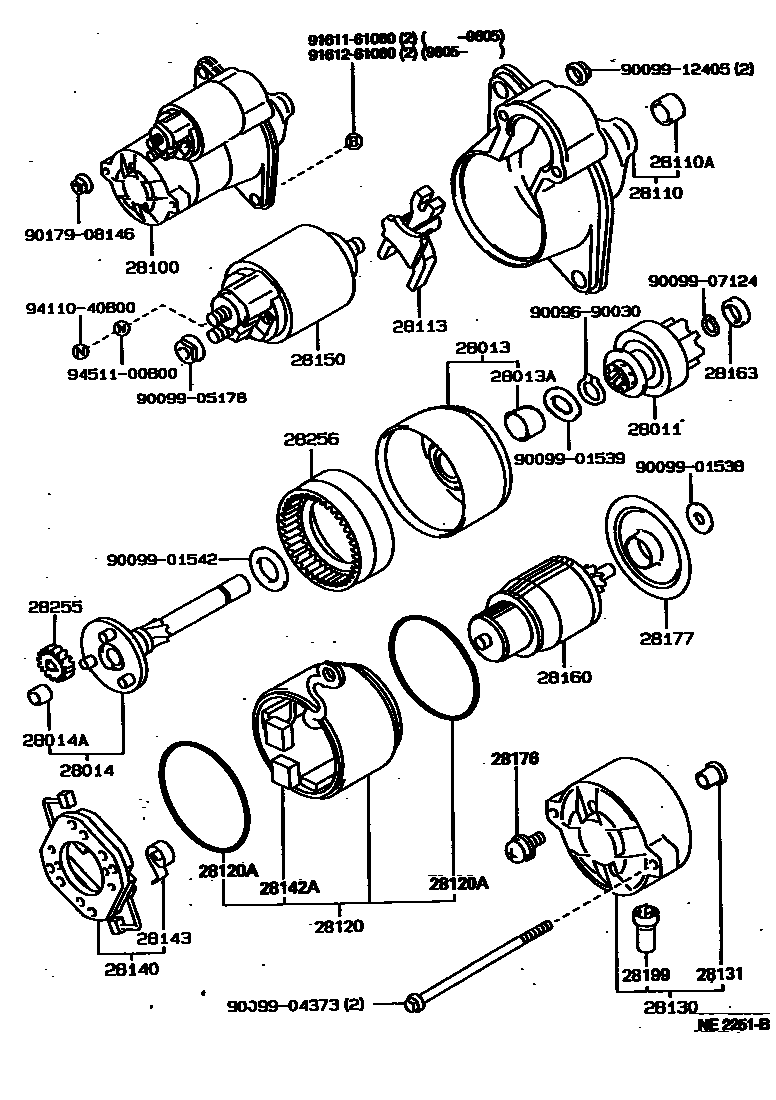

Toyota STARLET — STARTER
28011CLUTCH SUB-ASSY, STARTER
COLD SPEC OR SNOW VERSION
28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
28014SHAFT SUB-ASSY, PLANET CARRIER
28014ABUSH OR BEARING, PLANET CARRIER SHAFT
28100STARTER ASSY
12V 0.8KW
12V 1.0KW
12V 0.8KW
12V 1.0KW
28110HOUSING ASSY, STARTER DRIVE
COLD SPEC OR SNOW VERSION
28110ABEARING(FOR STARTER HOUSING)
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
COLD SPEC OR SNOW VERSION
12V 1.0KW
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
COLD SPEC OR SNOW VERSION
28131BUSH, COMMUTATOR END FRAME
28140HOLDER ASSY, STARTER BRUSH
COLD SPEC OR SNOW VERSION
28142ASTARTER KIT
28143SPRING, STARTER BRUSH
COLD SPEC OR SNOW VERSION
28150SWITCH ASSY, MAGNET STARTER
COLD SPEC OR SNOW VERSION
28160ARMATURE ASSY, STARTER
COLD SPEC OR SNOW VERSION
12V 1.0KW
28163NUT OR COLLAR, PINION STOP, STARTER
28176SCREW, STARTER
28177PLATE(FOR STARTER ARMATURE)
28199COVER, STARTER
28255GEAR, PLANET
28256GEAR, STARTER INTERNAL
9009690030
main90096-90030
9009901538
main90099-01538
9009901539
main90099-01539
9009901542
main90099-01542
9009904373
main90099-04373
9009905178
main90099-05178
9009907124
main90099-07124
9009912405
main90099-12405
9017908146
main90179-08146
9161161060
main91611-61060
9161261060
main91612-61060
9411040800
main94110-40800
9451100800
main94511-00800
37 parts on this diagram · 3 diagrams in section
STARTER for Toyota STARLET
This section contains 56 genuine Toyota parts for the STARTER system of the Toyota STARLET. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, SHAFT SUB-ASSY, PLANET CARRIER, BUSH OR BEARING, PLANET CARRIER SHAFT.
