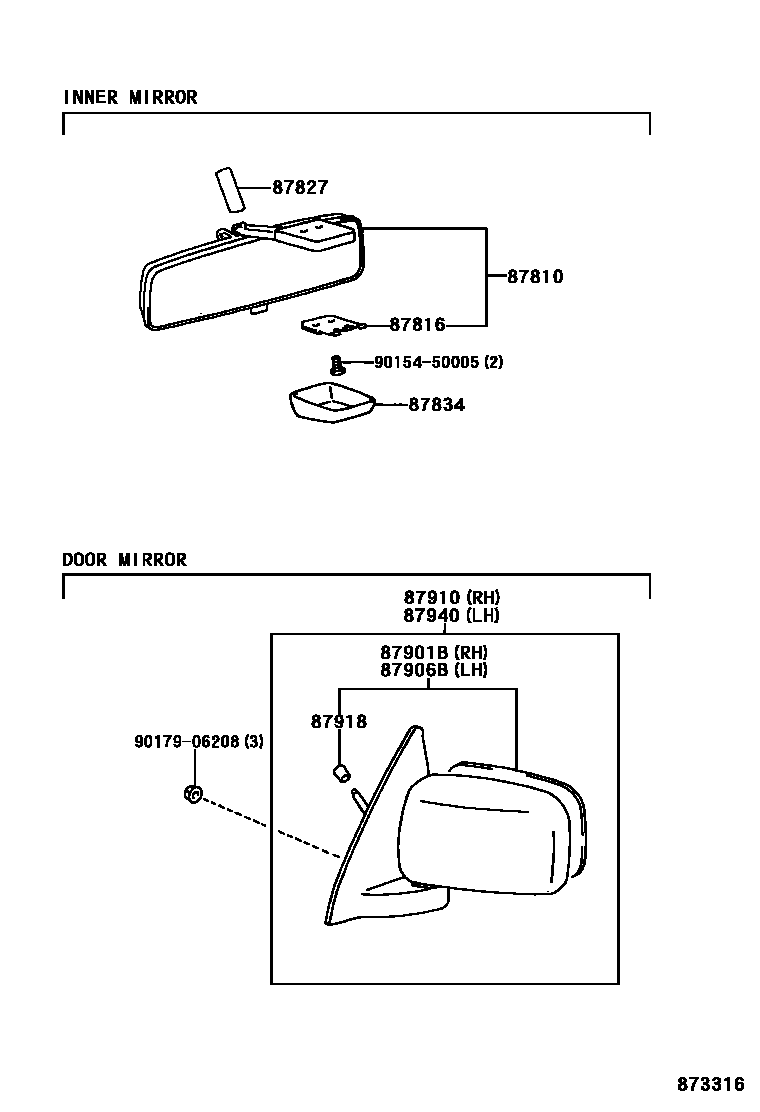

Toyota STARLET — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-10250-B0i199601-199712

LT.BLUISH GRAY,TRIM1#

main87810-12270-B3i199712-199907

LT.BLUISH GRAY,TRIM1#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199601

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020i199601

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-10010-B0i199601-199712

LT.BLUISH GRAY,TRIM1#

main87834-12030-B0i199712-199907

LT.BLUISH GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-10690i199601

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-10700i199601

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-10750i199601

main87910-10760i199601

main87910-10810-G0i199804-199808

COOL WATER PACKAGE,GREEN M.M.,6P5

main87910-10810-J0i199704-199707

BLUE SUMMER PACKAGE,BULE M.,8M2

main87910-10810-J1i199804-199808

COOL WATER PACKAGE,BLUE M.M.,8L5

main87910-10830-G0i199804-199808

COOL WATER PACKAGE,GREEN M.M.,6P5

main87910-10830-J0i199804-199808

COOL WATER PACKAGE,BLUE M.M.,8L5

87918KNOB, CONTROL OUTER MIRROR

main87918-10020×2i199601

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-10750i199601

main87940-10760i199601

main87940-10790-G0i199804-199808

COOL WATER PACKAGE,GREEN M.M.,6P5

main87940-10790-J0i199704-199707

BLUE SUMMER PACKAGE,BULE M.,8M2

main87940-10790-J1i199804-199808

COOL WATER PACKAGE,BLUE M.M.,8L5

main87940-10810-G0i199804-199808

COOL WATER PACKAGE,GREEN M.M.,6P5

main87940-10810-J0i199804-199808

COOL WATER PACKAGE,BLUE M.M.,8L5

9015450005

main90154-50005

9017906208

main90179-06208

11 parts on this diagram · 1 diagram in section

MIRROR for Toyota STARLET

This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota STARLET. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
