Toyota STARLET — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-10240-03i198912-199405

GRAY,TRIM1#

main87810-10240-04i198912-199201

BLUE,TRIM8#

main87810-10240-E0i199201-199212

OAK,TRIM4#

main87810-10250-03i198912-199601

GRAY,TRIM1#

main87810-10250-04i198912-199201

BLUE,TRIM8#

main87810-10250-E0i199201-199212

OAK,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i198912-199601

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-90A00i198912-199601

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-10010-03i199201-199601

GRAY,TRIM1#

main87834-10010-A0i199201-199212

IVORY,TRIM4#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-10560i198912-199201

DOOR MIRROR

main87931-1A280i198912-199201

DOOR MIRROR---LEVER REMOTE CONTROL TYPE

main87931-1A290i198912-199201

DOOR MIRROR---LEVER REMOTE CONTROL TYPE

main87931-1A310i198912-199405

DOOR MIRROR---ELECTRIC REMOTE CONTROL TYPE

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-10600i198912-199201

DOOR MIRROR

main87961-1A360i198912-199201

DOOR MIRROR---LEVER REMOTE CONTROL TYPE

main87961-1A370i198912-199201

DOOR MIRROR---LEVER REMOTE CONTROL TYPE

main87961-1A390i198912-199405

DOOR MIRROR---ELECTRIC REMOTE CONTROL TYPE

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-10490i199405-199601

main87910-10500i199405-199601

main87910-10510i198912-199405

DOOR MIRROR---LEVER REMOTE CONTROL TYPE

main87910-10520i198912-199405

DOOR MIRROR---LEVER REMOTE CONTROL TYPE

main87910-10530i198912-199405

DOOR MIRROR---ELECTRIC REMOTE CONTROL TYPE

main87910-10540i198912-199201

main87910-10570i198912-199201

DOOR MIRROR

main87910-10580i198912-199201

DOOR MIRROR

main87910-10600i198912-199201

main87910-10610-J0i199410-199412

JEANS PACKAGE,DARK BLUE MM,8K0

main87910-10610-J1i199410-199412

JEANS PACKAGE,LT.BLUE M,8D8

main87910-10620i199201-199405

main87910-10630i199201-199405

main87910-10640i199201-199405

DOOR MIRROR

main87910-10650i199201-199405

DOOR MIRROR

main87910-10730-D0i199410-199412

JEANS PACKAGE,SUPER RED 2,3E5

main87910-10730-J0i199410-199412

JEANS PACKAGE,DARK BLUE MM,8K0

main87910-10730-J1i199410-199412

JEANS PACKAGE,LT.BLUE M,8D8

87918KNOB, CONTROL OUTER MIRROR

main87918-10010×2i198912-199601

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-10490i198912-199405

DOOR MIRROR---LEVER REMOTE CONTROL TYPE

main87940-10500i198912-199405

DOOR MIRROR---LEVER REMOTE CONTROL TYPE

main87940-10510i199405-199601

main87940-10520i199405-199601

main87940-10530i198912-199405

DOOR MIRROR---ELECTRIC REMOTE CONTROL TYPE

main87940-10570i198912-199201

main87940-10580i198912-199201

main87940-10590i198912-199201

DOOR MIRROR

main87940-10600i198912-199201

DOOR MIRROR

main87940-10620i199201-199405

DOOR MIRROR

main87940-10630i199201-199405

DOOR MIRROR

main87940-10640i199201-199405

main87940-10650i199201-199405

main87940-10680-J0i199410-199412

JEANS PACKAGE,DARK BLUE MM,8K0

main87940-10680-J1i199410-199412

JEANS PACKAGE,LT.BLUE M,8D8

main87940-10720-D0i199410-199412

JEANS PACKAGE,SUPER RED 2,3E5

main87940-10720-J0i199410-199412

JEANS PACKAGE,DARK BLUE MM,8K0

main87940-10720-J1i199410-199412

JEANS PACKAGE,LT.BLUE M,8D8

9015940098

main90159-40098

9331216014

main93312-16014

9331915016

main93319-15016

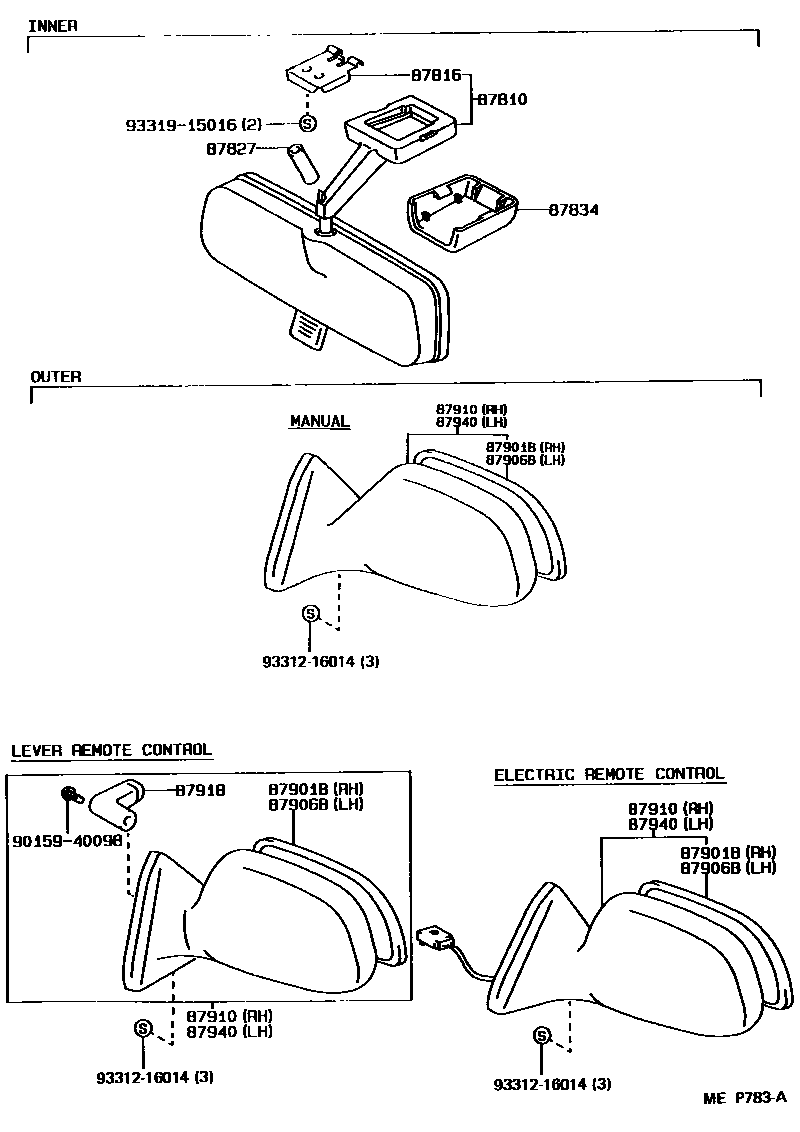

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota STARLET

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota STARLET. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
