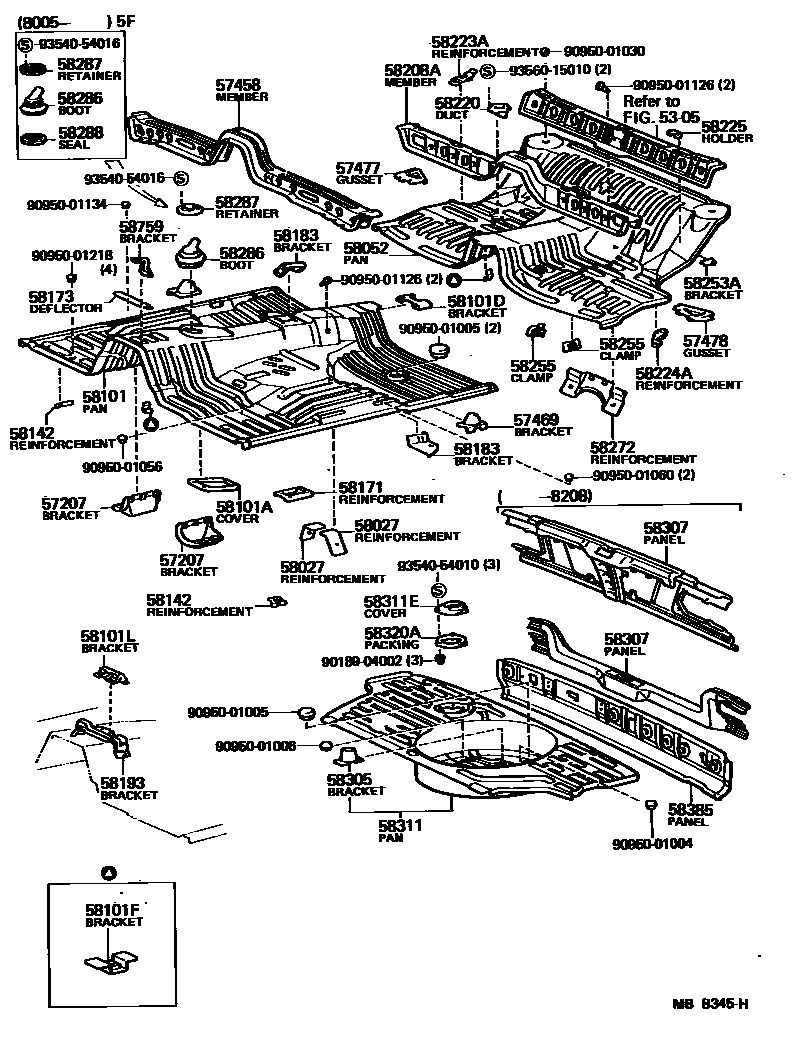

Toyota STARLET — FLOOR PAN & LOWER BACK PANEL
5305FLOOR SIDE MEMBER
57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
RH
RH
RH
RH
LH
LH
LH
LH
57458MEMBER, FRONT FLOOR CROSS, NO.1
57469BRACKET, FRONT SEAT, OUTSIDE
RH
RH
LH
LH
57477GUSSET, REAR SEAT, RH
57478GUSSET, REAR SEAT, LH
58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1
58052PAN SUB-ASSY, CENTER FLOOR
58101PAN SUB-ASSY, FRONT FLOOR
58101ACOVER, TRANSMISSION AUXILIARY
58101DBRACKET, PARKING BRAKE CABLE GUIDE
58101FBRACKET, MOUNTING, FLOOR, NO.1
58101LBRACKET, MOUNTING, FLOOR, NO.6
58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58171REINFORCEMENT, PARKING BRAKE BASE
58173DEFLECTOR, FRONT FLOOR STONE
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
RH
LH
LH
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58208AMEMBER, CENTER FLOOR CROSS, NO.1
58220DUCT ASSY, CENTER FLOOR VENT
58223AREINFORCEMENT, FLOOR SIDE PANEL, RH
58224AREINFORCEMENT, FLOOR SIDE PANEL, LH
58225HOLDER, REAR SEAT CUSHION
58253ABRACKET, PARKING CABLE CLAMP
58255CLAMP, PARKING BRAKE CABLE, NO.1
RH
LH
58272REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58286BOOT, SHIFT & SELECT LEVER, NO.1
58287RETAINER, SHIFT LEVER BOOT
58288SEAL, SHIFT LEVER BOOT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
W/SMALL BUMPER
W/BIG BUMPER
WEST GERMANY SPEC
58311PAN, REAR FLOOR
W/RR WIPER
58311ECOVER, REAR FLOOR SERVICE HOLE
58320APACKING, REAR FLOOR SERVICE HOLE
58385PANEL, REAR VALANCE
58759BRACKET, COWL TOP INNER STAY MOUNTING
9018904002
main90189-04002
9095001004
main90950-01004
9095001005
main90950-01005
9095001006
main90950-01006
9095001030
main90950-01030
9095001056
main90950-01056
9095001060
main90950-01060
9095001126
main90950-01126
9095001134
main90950-01134
9095001218
main90950-01218
9354054010
main93540-54010
9354054016
main93540-54016
9356015010
main93560-15010
49 parts on this diagram · 2 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota STARLET
This section contains 75 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota STARLET. Key components include: FLOOR SIDE MEMBER, BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, MEMBER, FRONT FLOOR CROSS, NO.1, BRACKET, FRONT SEAT, OUTSIDE, GUSSET, REAR SEAT, RH.
