Toyota STARLET — DISTRIBUTOR

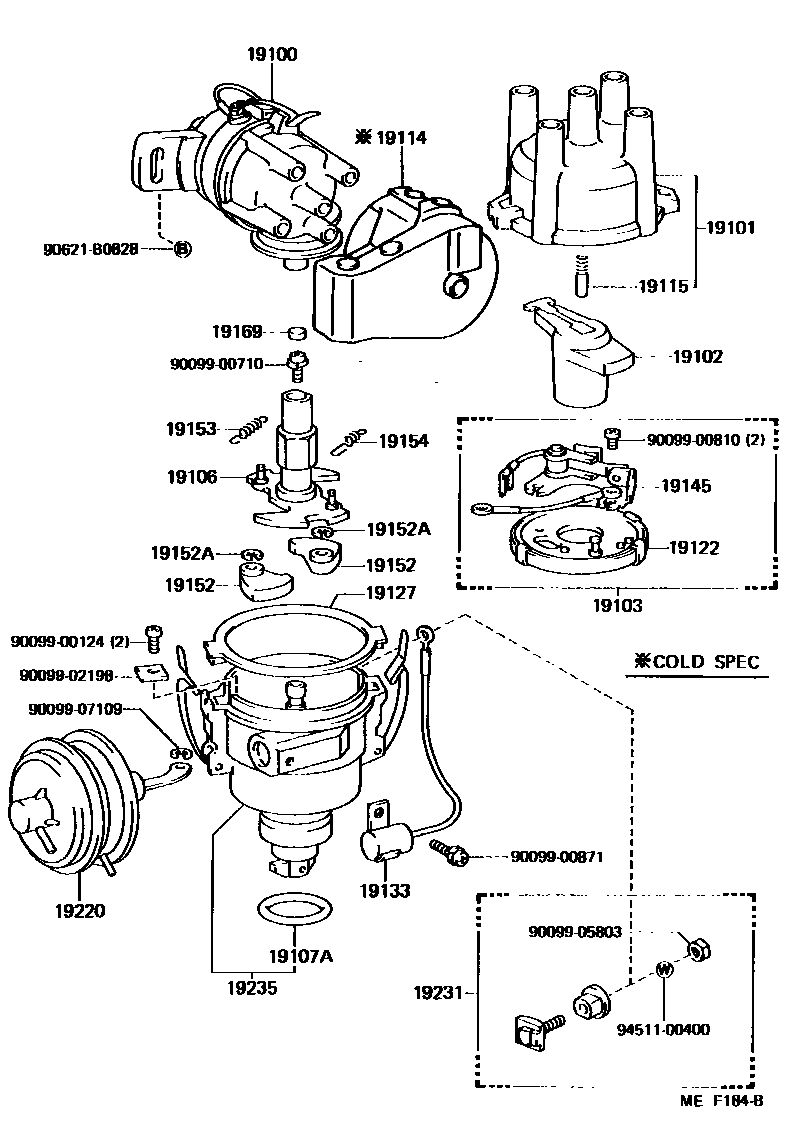

Parts diagram

19100DISTRIBUTOR ASSY

main19020-11142i198912-199212

main19020-11200i198912-199106

main19020-11350i199106-199601

main19020-11360i199201-199212

main19100-10021i198912-199106

main19100-10040i199106-199201

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-10020i198912-199201

main19101-11010i198912-199106

main19101-11300i199106-199201

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i199112-199201

main19102-16010i199201-199601

main19102-26151i198912-199201

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-10020i198912-199201

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-10030i198912-199106

main19106-16120i198912-199106

EXHAUST EMISSION CONTROL(ANNEX 24)

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i199201-199508

main90099-14127i199508-199601

main96711-35030i198912-199103

19114COVER, WATER PROOF(FOR DISTRIBUTOR)

main19114-10010i198912-199201

COLD SPEC

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i198912-199201

main19115-63010×2i198912-199201

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-10020i198912-199201

19127PACKING, DUST PROOF

main19127-15010i198912-199201

main19127-15120i199201-199601

19133CONDENSER, DISTRIBUTOR

main19133-11200i199106-199108

main19133-16240i199108-199601

main90099-52084i198912-199201

19145POINT, DISTRIBUTOR

main19145-10020i198912-199201

19152WEIGHT, GOVERNOR

main19152-15160×2i198912-199201

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07122×2i199201-199212

19153SPRING, GOVERNOR, A

main19153-10020i199106-199201

main19153-10021i198912-199106

main19153-11050i199201-199212

main19153-11142i198912-199201

19154SPRING, GOVERNOR, B

main19154-10020i199106-199201

main19154-10021i198912-199106

main19154-11050i199201-199212

main19154-11142i198912-199201

19169STOPPER, CAM GREASE

main19169-63011i198912-199201

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-10021i198912-199106

main19220-10040i198912-199106

EXHAUST EMISSION CONTROL(ANNEX 24)

main19220-11142i198912-199201

main19220-11360i199201-199212

19231TERMINAL, DISTRIBUTOR

main19231-24140i198912-199201

19235HOUSING, DISTRIBUTOR

main19235-10021i198912-199201

main19235-11080i198912-199201

main19235-11190i198912-199106

main19235-11350i199106-199108

main19235-11360i199108-199109

9009900124

main90099-00124

9009900710

main90099-00710

9009900810

main90099-00810

9009900871

main90099-00871

9009902198

main90099-02198

9009905803

main90099-05803

9009907109

main90099-07109

90621B0828

main90621-B0828

28 parts on this diagram · 3 diagrams in section

DISTRIBUTOR for Toyota STARLET

This section contains 46 genuine Toyota parts for the DISTRIBUTOR system of the Toyota STARLET. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, BREAKER SUB-ASSY, DISTRIBUTOR, CAM SUB-ASSY, DISTRIBUTOR.
