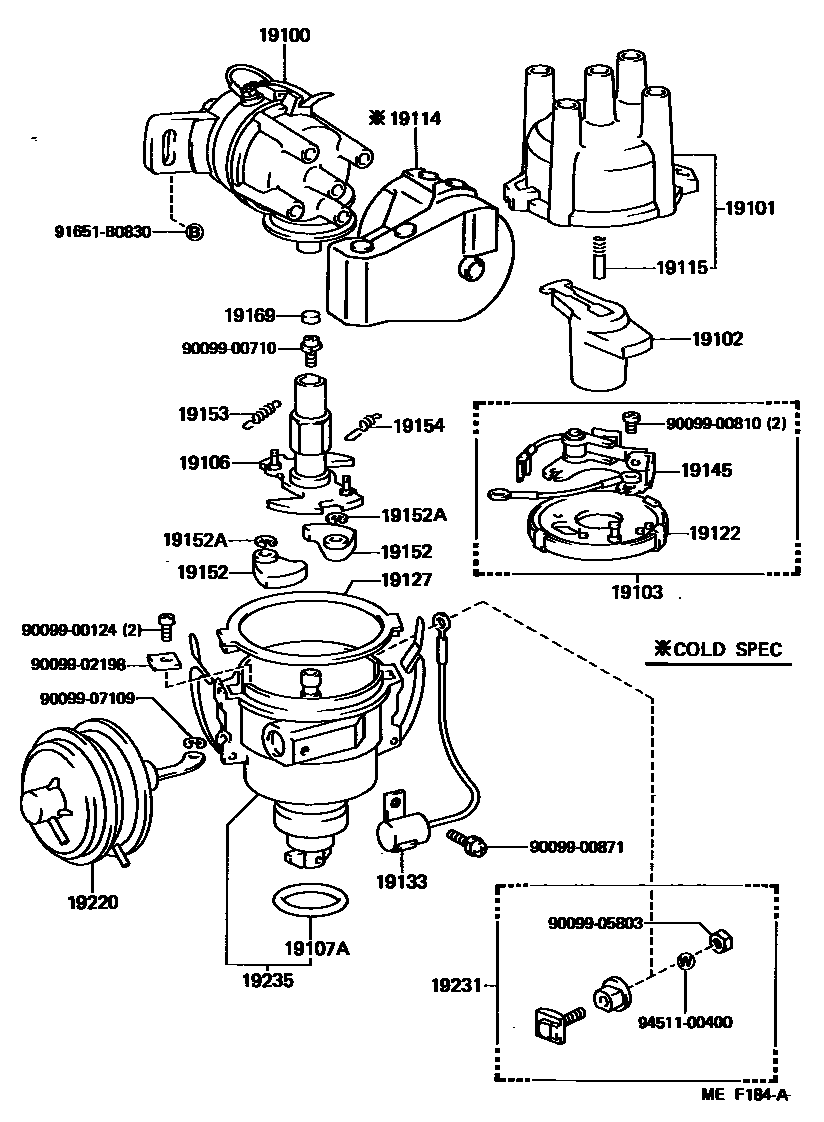

Toyota STARLET — DISTRIBUTOR
19100DISTRIBUTOR ASSY
SWEDEN SPEC
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19103BREAKER SUB-ASSY, DISTRIBUTOR
19106CAM SUB-ASSY, DISTRIBUTOR
19107ARING, O, DISTRIBUTOR HOUSING
19114COVER, WATER PROOF(FOR DISTRIBUTOR)
COLD SPEC
19115PIECE, DISTRIBUTOR CAP, CENTER
19122PLATE, STATIONARY, DISTRIBUTOR
19127PACKING, DUST PROOF
19133CONDENSER, DISTRIBUTOR
19145POINT, DISTRIBUTOR
19152WEIGHT, GOVERNOR
19152ARING, SNAP(FOR GOVERNOR WEIGHT)
19153SPRING, GOVERNOR, A
19154SPRING, GOVERNOR, B
19169STOPPER, CAM GREASE
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
SWEDEN SPEC
19231TERMINAL, DISTRIBUTOR
19235HOUSING, DISTRIBUTOR
9009900124
main90099-00124
9009900710
main90099-00710
9009900810
main90099-00810
9009900871
main90099-00871
9009902198
main90099-02198
9009905803
main90099-05803
9009907109
main90099-07109
91651B0830
main91651-B0830
9451100400
main94511-00400
29 parts on this diagram · 2 diagrams in section
DISTRIBUTOR for Toyota STARLET
This section contains 45 genuine Toyota parts for the DISTRIBUTOR system of the Toyota STARLET. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, BREAKER SUB-ASSY, DISTRIBUTOR, CAM SUB-ASSY, DISTRIBUTOR.
