Toyota STARLET — CONSOLE BOX & BRACKET

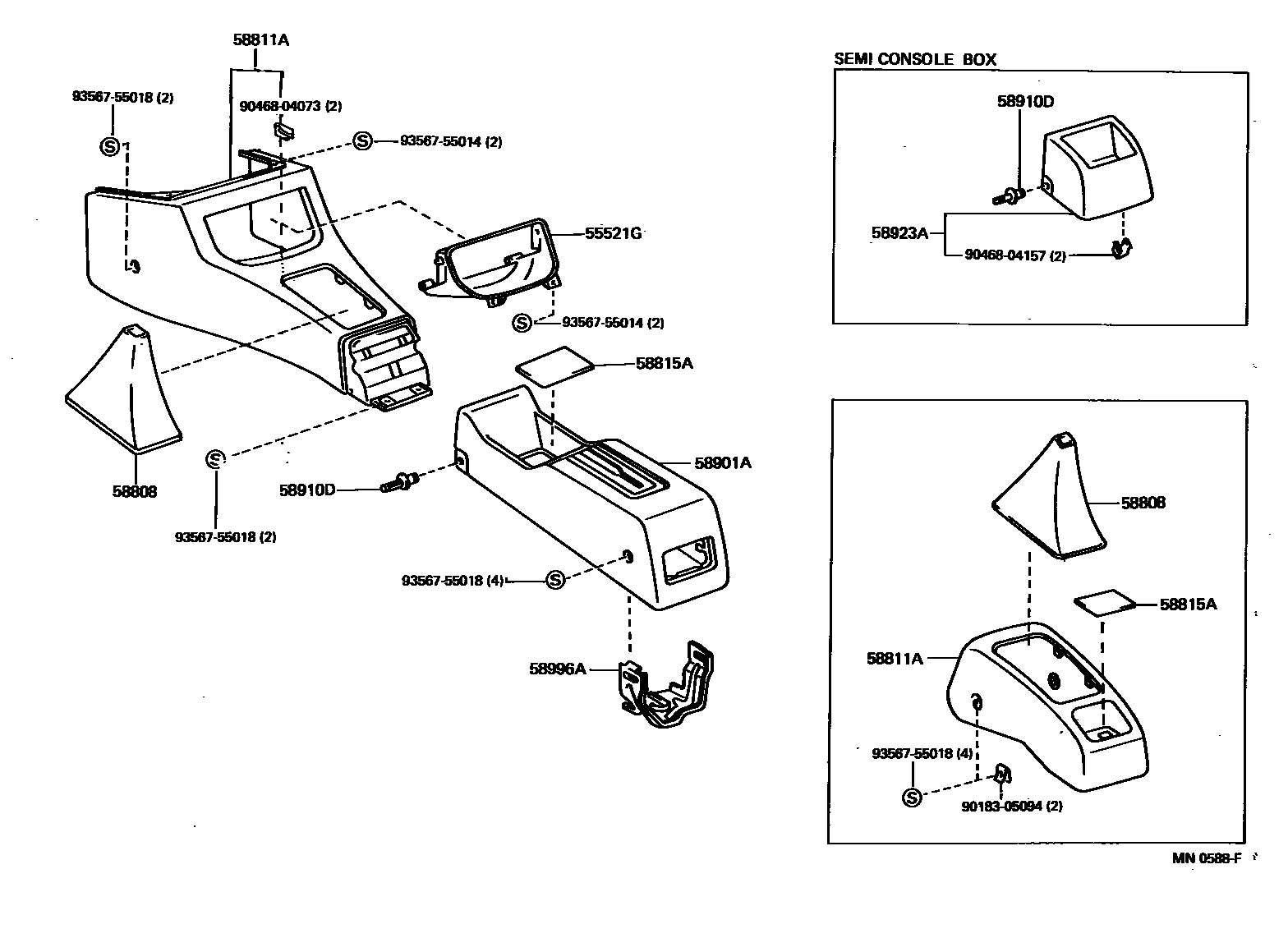

Parts diagram
55521GCOVER, STEREO OPENING
main55521-10050i198912-199601
main55521-10070i198912-199201
EUROPE SPEC
main55521-10070i198912-199601
main55521-10070i199201-199601
COLD SPEC
main55521-10080i198912-199201
W(STEREO)
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-10090-03i198912-199601
GRAY,TRIM1#
main58808-10090-04i198912-199201
BLUE,TRIM8#
main58808-10090-E0i199201-199212
OAK,TRIM4#
58811ABOX, CONSOLE, FRONT
main58811-10210-03i198912-199601
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58811-10210-03i198912-199405
GRAY,TRIM1#
main58811-10210-04i198912-199201
BLUE,TRIM8#
main58811-10210-04i198912-199201
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),BLUE,TRIM8#
main58811-10210-E0i199201-199212
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),OAK,TRIM4#
main58811-10210-E0i199201-199212
OAK,TRIM4#
main58811-10230-03i198912-199601
GRAY,TRIM1#
main58811-10230-04i198912-199201
BLUE,TRIM8#
main58811-10230-E0i199201-199212
OAK,TRIM4#
main58811-10240-03i198912-199601
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58811-10240-03i198912-199601
GRAY,TRIM1#
main58811-10240-04i198912-199201
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),BLUE,TRIM8#
main58811-10240-04i198912-199201
BLUE,TRIM8#
main58811-10240-E0i199201-199212
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),OAK,TRIM4#
main58811-10240-E0i199201-199212
OAK,TRIM4#
main58811-10250-03i198912-199601
COLD SPEC,GRAY,TRIM1#
main58811-10250-04i198912-199201
COLD SPEC,BLUE,TRIM8#
main58811-10250-E0i199201-199212
COLD SPEC,OAK,TRIM4#
58815ACARPET, CONSOLE BOX
main58815-10020-03i198912-199201
GRAY,TRIM1#
main58815-10020-04i198912-199201
BLUE,TRIM8#
main58815-10020-C0i199201-199601
GRAY,TRIM1#
main58815-10020-E0i199201-199212
OAK,TRIM4#
main58815-10030-03i198912-199201
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58815-10030-03i198912-199201
GRAY,TRIM1#
main58815-10030-04i198912-199201
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),BLUE,TRIM8#
main58815-10030-04i198912-199201
BLUE,TRIM8#
main58815-10030-C0i199201-199601
GRAY,TRIM1#
main58815-10030-C0i199201-199601
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58815-10030-E0i199201-199212
OAK,TRIM4#
main58815-10030-E0i199201-199212
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),OAK,TRIM4#
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-10030-03i198912-199601
SHADOW GRAY,TRIM1#
main58901-10030-04i198912-199201
BLUE,TRIM8#
main58901-10030-E0i199201-199212
OAK,TRIM4#
58910DCLIP(FOR CONSOLE BOX)
main90467-07071-03i198912-199009
SHADOW GRAY,TRIM1#
main90467-07071-14i198912-199201
BLUE,TRIM8#
main90467-07071-22i199201-199601
BLACK,TRIM1#
main90467-07071-B4i199009-199201
SHADOW GRAY,TRIM1#
main90467-07071-E0i199201-199212
OAK,TRIM4#
58923APANEL, CONSOLE REAR END
main58923-10010-03i198912-199601
GRAY,TRIM1#
main58923-10010-04i198912-199201
BLUE,TRIM8#
main58923-10010-E0i199201-199212
OAK,TRIM4#
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-10060i198912-199601
9018305094
main90183-05094
9046804073
main90468-04073
9046804157
main90468-04157
9356755014
main93567-55014
9356755018
main93567-55018

13 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota STARLET

This section contains 13 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota STARLET. Key components include: COVER, STEREO OPENING, COVER SUB-ASSY, SHIFTING HOLE, BOX, CONSOLE, FRONT, CARPET, CONSOLE BOX, BOX SUB-ASSY, CONSOLE, REAR.
