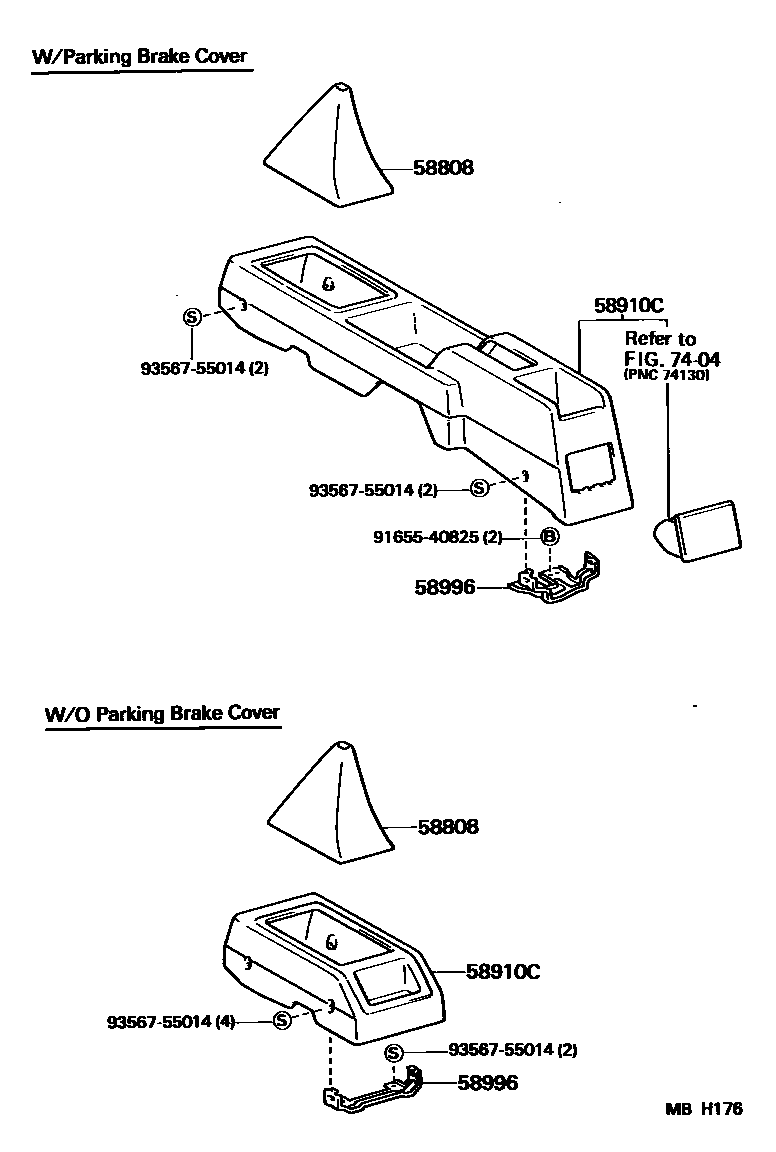

Toyota STARLET — CONSOLE BOX & BRACKET

0001 1 0002 1

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-10050-01iEP7#..MTM198410-198612

BLACK,BLACK,TRIM1#

main58808-10070-01iEP7#,NP70..MTM198612-198912

BLACK,BLACK,TRIM1#

58910CBOX ASSY, CONSOLE, REAR

main58910-10010-03iEP7#..GL198410-198612

GRAY,GRAY,TRIM1#

main58910-10010-04iEP7#..GL198410-198612

BLUE,BLUE,TRIM8#

main58911-10030-03iEP7#..DX,STD,XL198410-198612

GRAY,GRAY,TRIM1#

main58911-10030-04iEP7#..DX,STD,XL198410-198612

BLUE,BLUE,TRIM8#

main58911-10030-06iEP7#,NP70198612-198912

BROWN,BROWN,TRIM4#

main74130-12040-23iEP7#,NP70198612-198912

BROWN,GRAY,TRIM4#

sub74109-20080

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-10030iEP7#..GL198410-198612

S PACK

main58995-10040iEP7#,NP70198612-198912

7404

9165540825

main91655-40825

9356755014

main93567-55014

6 parts on this diagram · 2 diagrams in section
