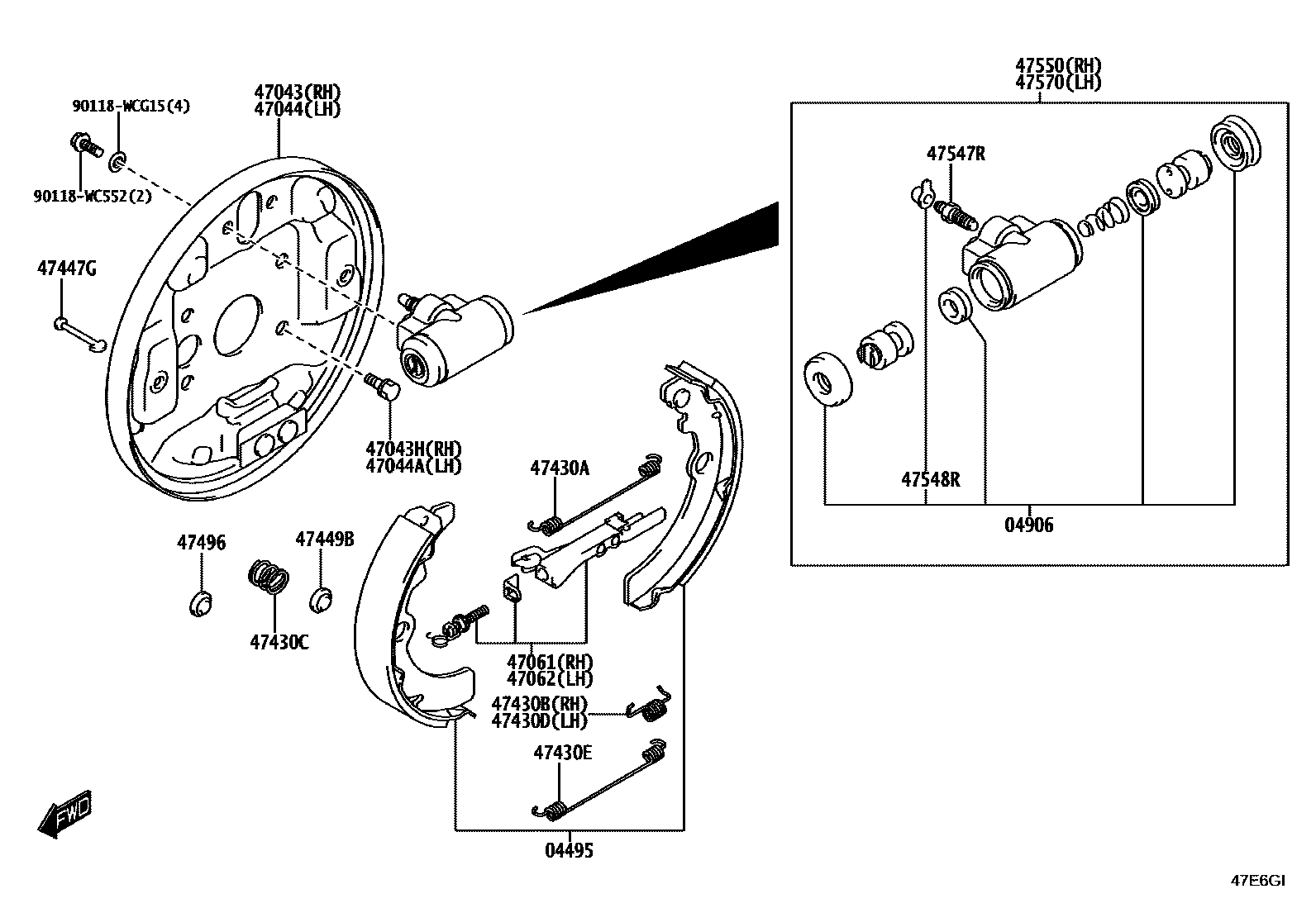

Toyota STARLET CROSS — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-WC008i202404

POS.10; POS.2; POS.5; POS.7; POS.8; POS.9

main04495-WC010i202404

POS.1; POS.3; POS.4; POS.6

04906CUP KIT, REAR WHEEL CYLINDER

main04906-WC002×2i202404

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-WC002i202404

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90118-WC555i202404

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-WC002i202404

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90118-WC555i202404

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-WC002i202404

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-WC002i202404

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90118-WC717×2i202404

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90118-WC799i202404

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90118-WC798×4i202404

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90118-WC719i202404

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90118-WC718×2i202404

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-WC001×4i202404

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-WC001×4i202404

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-WC001i202404

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-WC003×2i202404

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-WC002×2i202404

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-WC002i202404

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-WC002i202404

90118WC552

main90118-WC552

90118WCG15

main90118-WCG15

22 parts on this diagram · 1 diagram in section

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE for Toyota STARLET CROSS

This section contains 22 genuine Toyota parts for the REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE system of the Toyota STARLET CROSS. Key components include: SHOE KIT, REAR BRAKE, CUP KIT, REAR WHEEL CYLINDER, PLATE SUB-ASSY, BRAKE BACKING, REAR RH, BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH), PLATE SUB-ASSY, BRAKE BACKING, REAR LH.
