Toyota SPRINTER — WIRELESS DOOR LOCK

84987SWITCH, WIRELESS DOOR LOCK MAIN

main84987-12010i199106-199305

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-12020i199106-199305

main89704-12060i199305-199503

89705TRANSMITTER, DOOR CONTROL

main89705-12010i199106-199305

main89742-12060i199305-199505

89706BATTERY SET, TRANSMITTER

main89706-50010i199106-199305

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-12040i199503-199505

89743RECEIVER, DOOR CONTROL

main89741-12040i199305-199505

main89743-12010i199106-199305

9015120002

main90151-20002

9017906100

main90179-06100

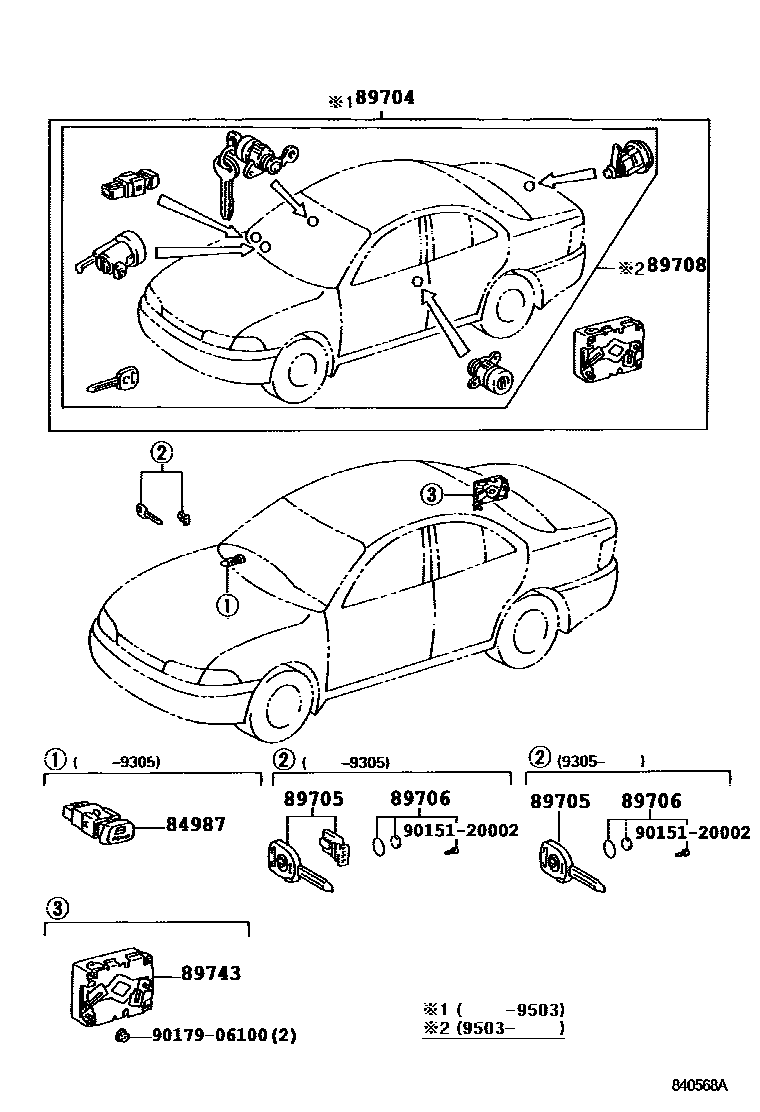

8 parts on this diagram · 1 diagram in section

WIRELESS DOOR LOCK for Toyota SPRINTER

This section contains 8 genuine Toyota parts for the WIRELESS DOOR LOCK system of the Toyota SPRINTER. Key components include: SWITCH, WIRELESS DOOR LOCK MAIN, CONTROL SET, WIRELESS DOOR LOCK, TRANSMITTER, DOOR CONTROL, BATTERY SET, TRANSMITTER, CYLINDER SET, WIRELESS DOOR LOCK.
