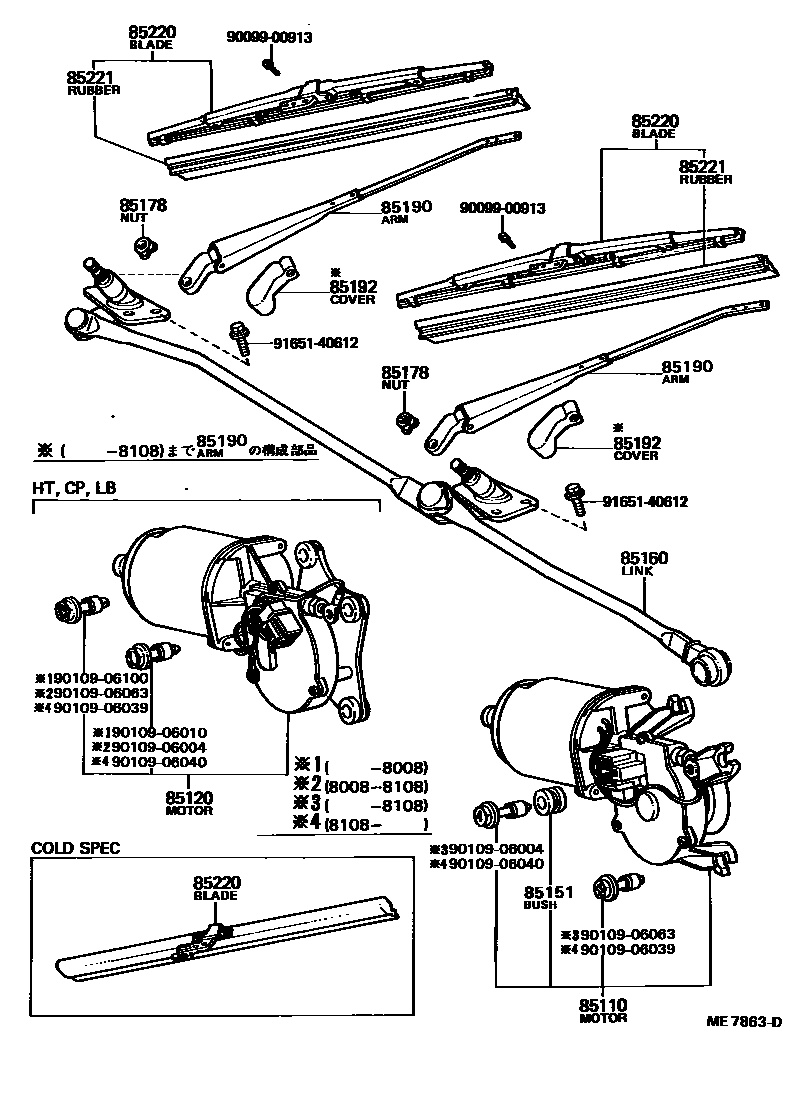

Toyota SPRINTER — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12200iAE70,CE70,KE70,TE70..4D197903-198304

main85110-12230iTE71..4D197903-198304

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85110-12200iAE70,KE70,TE71..2D198109-198304

main85110-12211iAE70,KE70,TE7#..2D198008-198109

main85120-12120iAE70,KE70,TE7#..2D197903-198008

85151BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

main85151-22070×4iAE70,KE70,TE7#..4D197903-198304

85160LINK ASSY, WINDSHIELD WIPER

main85160-12230iAE70..SE197903-197906

main85160-12231iAE70,KE70,TE7#..4D197906-198108

main85160-12240iAE70,KE70,TE7#..2D197903-198008

main85160-12241iAE70,KE70,TE7#..2D198008-198108

main85160-12300iAE70,CE70,KE70,TE71..4D198108-198304

main85160-12320iAE70,KE70,TE71..2D198108-198304

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08016×2iAE70,CE70,KE70,TE71..4D198108-198304

main90179-08026×2iAE70,KE70,TE71..2D198108-198304

85190ARM ASSY, WINDSHIELD WIPER

main85190-12420×2iAE70..SE197903-197908

main85190-12421×2iAE70,KE70,TE7#..4D197908-198108

main85190-12430iAE70,KE70,TE7#..2D197903-198108

RH

main85190-12500iAE70,CE70,KE70,TE71..4D198108-198304

RH

main85190-12520iAE70,KE70,TE71..2D198108-198111

RH

main85190-12550iAE70,KE70,TE71..2D198111-198304

RH

main85210-12010iAE70,KE70,TE7#..2D197903-198108

LH

main85210-12030iAE70,CE70,KE70,TE71..4D198108-198304

LH

main85210-12050iAE70,KE70,TE71..2D198108-198111

LH

main85210-12070iAE70,KE70,TE71..2D198111-198304

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-12030×2iAE70,KE70,TE7#197903-198108

main85192-12050×2iAE70,KE70,TE71..2D198108-198304

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12301×2iAE70,KE70,TE7#..2D197903-198004

main85220-12302×2iAE70,KE70,TE7#..2D198004-198108

main85220-12370×2iAE70,KE70,TE7#..4D197908-198001

main85220-12540iAE70,CE70,KE70,TE71198208-198304

RH

sub85220-30240

main85220-12550iAE70,CE70,KE70,TE71198208-198304

LH

sub85220-16130

main85220-14280×2iAE70,KE70,TE7#..4D198001-198108

main85220-14310iAE70,CE70,KE70,TE71198108-198208

RH

main85220-14360iAE70,CE70,KE70,TE71198108-198208

LH

main85220-20120×2iAE70,KE70,TE71..4D197903-197908

main85220-30110×2iAE70,CE70,KE70,TE7#197903-198304

COLD SPEC(WINTER BLADE)

sub85220-20080

85221BLADE, WINDSHIELD WIPER

main85221-12090×2iAE70,KE70,TE7#..2D197903-198004

L=425

sub85221-14H90

main85221-12190×2iAE70,CE70,KE70,TE71198208-198304

sub85223-12690

main85221-14140×2iAE70,KE70,TE7#..4D197903-198001

main85221-14170×2iAE70,KE70,TE7#..4D198001-198108

sub85221-14H90

main85221-14180×2iAE70,KE70,TE7#..2D198004-198108

L=438

main85221-30080×2iAE70,CE70,KE70,TE71198108-198208

sub85223-12690

9009900913

main90099-00913

9010906004

main90109-06004

9010906010

main90109-06010

9010906039

main90109-06039

9010906040

main90109-06040

9010906063

main90109-06063

9010906100

main90109-06100

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
