Toyota SPRINTER — WINDSHIELD WIPER

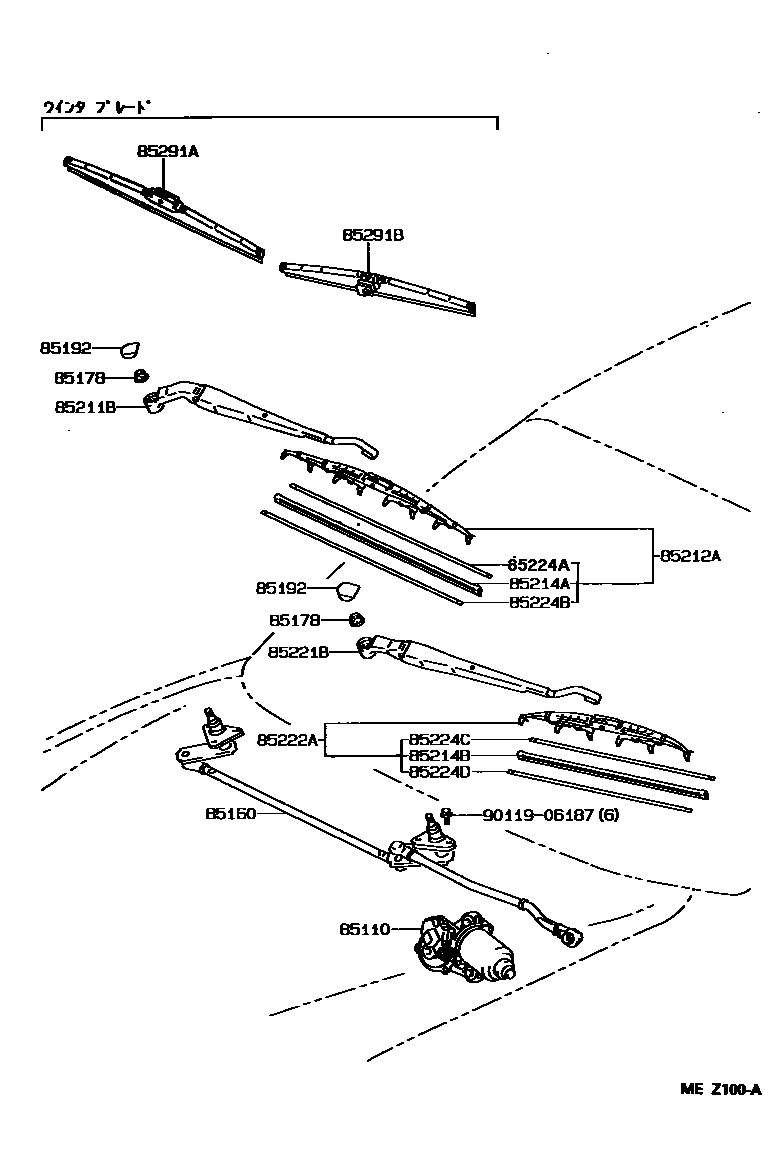

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-12871i199505-199704
main85110-12881i199505-199604
main85110-12882i199604-199704
main85110-1A010i199704-200008
main85110-1A020i199704-200008
85160LINK ASSY, WINDSHIELD WIPER
main85150-12820i199505-199704
main85150-12890i199704-200008
85178NUT (FOR FRONT WIPER ARM SETTING)
main90179-08113×2i199505-199704
85192COVER, WINDSHIELD WIPER ARM
main85292-12020×2i199505-199704
85211BARM, FRONT WIPER, RH
main85211-12291i199505-199704
main85211-12330i199704-200008
85212ABLADE, FR WIPER, RH
main85212-12320i199704-200008
sub85212-43020
main85212-23070i199505-199704
85214ARUBBER, WIPER, RH
main85214-10080i199704-200008
sub85214-53050
main85214-30250i199505-199704
85214BRUBBER, WIPER, LH
main85214-20320i199505-199704
sub85214-20330
main85214-20350i199704-200008
sub85214-22420
85221BARM, FRONT WIPER, LH
main85221-12290i199505-199704
main85221-12330i199704-200008
85222ABLADE, FR WIPER, LH
main85222-20310i199505-199704
sub85222-60100
main85222-20390i199704-200008
sub85222-22780
85224APLATE, WIPER RUBBER BACKING, NO.1
main85224-10180i199704-200008
main85224-30380i199505-199704
85224BPLATE, WIPER RUBBER BACKING, NO.2
main85224-10180i199704-200008
main85224-30380i199505-199704
85224CPLATE, WIPER RUBBER BACKING, NO.3
main85224-20310i199704-200008
main85224-60050i199505-199704
85224DPLATE, WIPER RUBBER BACKING, NO.4
main85224-20310i199704-200008
main85224-60050i199505-199704
85291ABLADE, FRONT WIPER, WINTER, RH
main85291-22050i199505-199704
sub85291-33060
main85291-30050i199704-200008
85291BBLADE, FRONT WIPER, WINTER, LH
main85291-30030i199505-199704
sub85291-22080
9011906187
main90119-06187

17 parts on this diagram · 1 diagram in section
