Toyota SPRINTER — WINDSHIELD WIPER

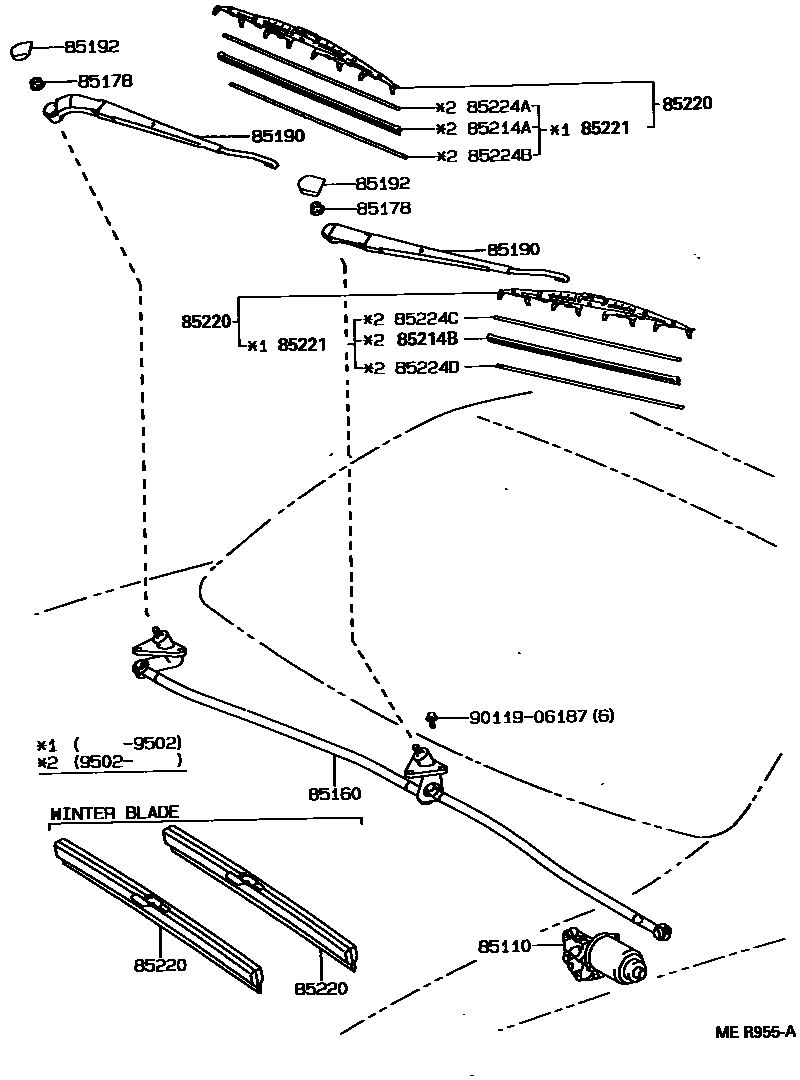

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-12770i199106-199205
main85110-12780i199106-199205
main85110-12870i199205-199505
main85110-12871i199505-199704
main85110-12880i199205-199505
main85110-12881i199505-199604
main85110-12882i199604-199704
main85110-1A010i199704
main85110-1A020i199704
85160LINK ASSY, WINDSHIELD WIPER
main85150-12770i199106-199704
main85150-12890i199704
85178NUT (FOR FRONT WIPER ARM SETTING)
main90179-08113×2i199106
85190ARM ASSY, WINDSHIELD WIPER
main85211-12290i199106-199301
main85211-12291i199301-199704
main85211-12330i199704
main85221-12260i199106-199301
main85221-12261i199301-199704
main85221-12330i199704
85192COVER, WINDSHIELD WIPER ARM
main85192-12800×2i199106-199108
main85292-12020×2i199108
85214ARUBBER, WIPER, RH
main85214-10080i199704
sub85214-53050
main85214-30250i199502-199704
85214BRUBBER, WIPER, LH
main85214-20320i199502-199704
sub85214-20330
main85214-20350i199704
sub85214-22420
85220BLADE ASSY, WINDSHIELD WIPER
main85212-12280i199106-199210
main85212-12281i199210-199301
main85212-12320i199704
sub85212-43020
main85212-23070i199301-199704
main85222-12690i199106-199210
main85222-12691i199210-199301
main85222-12692i199301-199704
main85222-20390i199704
sub85222-22780
main85291-22050i199106
sub85291-33060
main85291-30030i199106
sub85291-22080
85221BLADE, WINDSHIELD WIPER
main85213-16070i199106-199205
main85213-16090i199205-199210
main85213-30250i199210-199502
main85223-1G010i199106-199110
main85223-1G040i199110-199210
main85223-30400i199210-199502
85224APLATE, WIPER RUBBER BACKING, NO.1
main85224-10180i199704
main85224-30380i199502-199704
85224BPLATE, WIPER RUBBER BACKING, NO.2
main85224-10180i199704
main85224-30380i199502-199704
85224CPLATE, WIPER RUBBER BACKING, NO.3
main85224-20310i199704
main85224-30430i199502-199704
85224DPLATE, WIPER RUBBER BACKING, NO.4
main85224-20310i199704
main85224-30420i199502-199704
9011906187
main90119-06187

14 parts on this diagram · 1 diagram in section
