Toyota SPRINTER — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12350iAE8#,CE80198305-198408

main85110-12420iAE8#,CE80198408-198505

sub85110-20562

main85110-12440iAE8#,CE80,EE80198505-198704

main85110-12600iAE8#,CE80,EE80198505-198704

COLD SPEC

sub85110-91602

85160LINK ASSY, WINDSHIELD WIPER

main85160-12400iAE8#,CE80,EE80198305-198704

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029×2iAE8#,CE80,EE80198305-198507

main90176-08033×2iAE8#,CE80,EE80198507-198704

85190ARM ASSY, WINDSHIELD WIPER

main85190-12620iAE8#,CE80,EE80198305-198704

RH

main85210-12160iAE8#,CE80,EE80198305-198704

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12450iAE8#,CE80,EE80198305-198704

LH

sub85220-12561

main85220-12620iAE8#,CE80,EE80198607-198704

WINTER BLADE,RH

sub85291-12010

main85220-14170iAE8#,CE80,EE80198309-198704

WINTER BLADE,LH

sub85291-14010

main85220-16180iAE8#,CE80,EE80198305-198704

RH

main85220-24040iAE8#,CE80,EE80198309-198607

WINTER BLADE,RH

sub85291-24010

85221BLADE, WINDSHIELD WIPER

main85221-12210iAE8#,CE80198305-198308

LH

main85221-12230iAE8#,CE80,EE80198308-198704

LH

sub85214-12H90

main85221-17020iAE8#,CE80,EE80198608-198704

RH

main85221-30100iAE8#,CE80198305-198308

RH

main85221-30120iAE8#,CE80,EE80198308-198608

RH

sub85221-40040

9009900955

main90099-00955

9011906151

main90119-06151

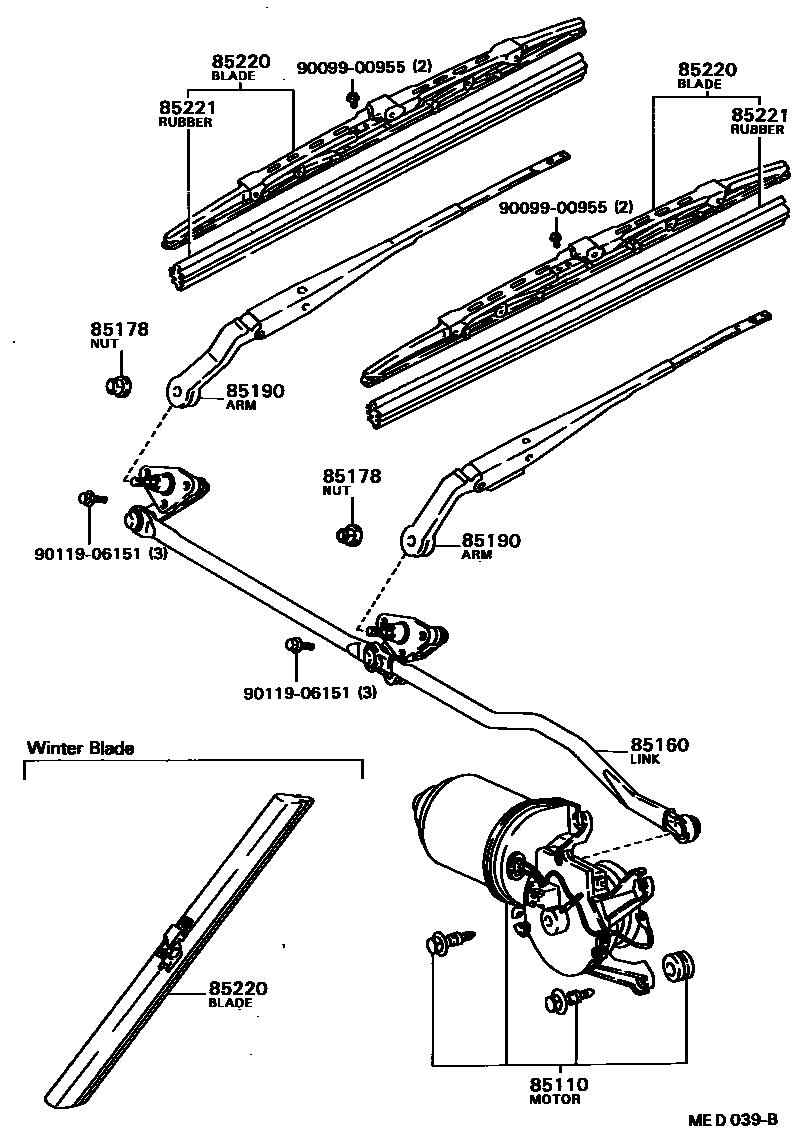

8 parts on this diagram · 1 diagram in section
