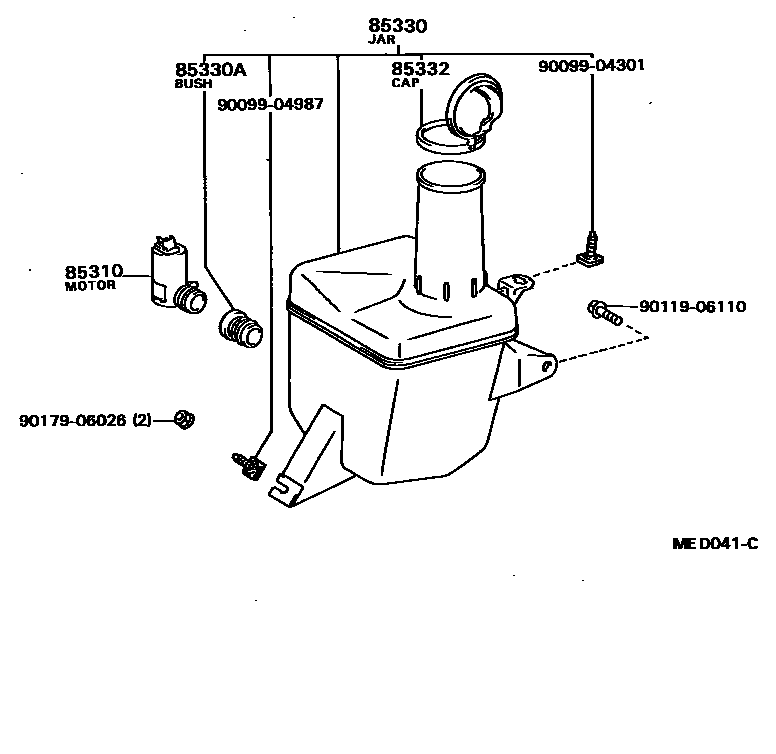

Toyota SPRINTER — WINDSHIELD WASHER

0001 1 0002 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iAE8#,CE80,EE80198305-198704

85330JAR ASSY, WINDSHIELD WASHER

main85331-20430iAE8#,CE80,EE80..4D198305-198704

1.5 LITTER

main85331-20440iAE81,82,CE80,EE80..5D198305-198704

2.5 LITTER,W/RR WIPER

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAE8#,CE80,EE80198305-198704

85332CAP, WINDSHIELD WASHER JAR

main85332-20430iAE8#,CE80..4D198305-198406

1.5 LITTER

main85332-20431iAE8#,CE80,EE80..4D198406-198704

1.5 LITTER

main85332-20440iAE81,82,CE80..5D198305-198406

2.5 LITTER,W/RR WIPER

main85332-20441iAE81,82,CE80,EE80..5D198406-198704

2.5 LITTER,W/RR WIPER

9009904301

main90099-04301

9009904987

main90099-04987

9011906110

main90119-06110

9017906026

main90179-06026

8 parts on this diagram · 2 diagrams in section
